浏览次数：152
| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 3天 | 90天 | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |

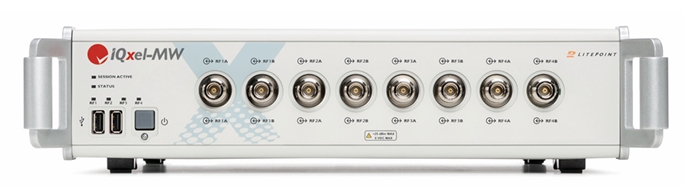

IQxel-M 是一款支持多种连接技术的测试盒，具有 60 MHz 至 6,000 MHz 的频带覆盖范围。它提供 802.11 a/b/g/n/j/p/ac、802.11ah、蓝牙 1.0-4.2、ZigBee、Z-Wave、WiSUN、LTE-U 和 DECT 的完整 Tx/Rx 物理层测试。它还提供 GPS、GLONASS、COMPASS、Galileo、FM、DAB、CMMB 和 ISDB-T 的接收器测试IQxel-M 解决了智能连接设备不断增长的功能。由于能够在多达四台设备上同时测试 Wi-Fi/BT 功能，同时执行导航和广播测试，进一步提高了系统的吞吐量能力。
IQxel-M 支持多个设备的并行测试 （Multi-DUT），同时支持多种技术的并发测试。它能够同时测试 GPS、FM 和 WiFi，而不是串行测试。与单个 DUT 串行测试方法相比，这些 Multi-DUT 和 Multicom 功能相结合，可以将生产测试吞吐量提高多达 500%。这两个不同的功能是通过单个测试系统实现提供最大产量的关键。
IQxel-M is a test box that supports multiple connectivity technologies with banded frequency coverage from 60 MHz to 6,000 MHz. It provides full Tx/Rx physical layer testing of 802.11 a/b/g/n/j/p/ac, 802.11ah, Bluetooth 1.0-4.2, ZigBee, Z-Wave, WiSUN, LTE-U and DECT. It also provides receiver testing of GPS, GLONASS, COMPASS, Galileo, FM, DAB, CMMB and ISDB-T the IQxel-M addresses the ever-increasing capabilities of smart connected devices. With the ability to simultaneously test Wi-Fi/BT functionality on up to four devices while concurrently performing navigation and broadcast tests further increases the throughput capabilities of the system.
The IQxel-M enables parallel testing of multiple devices (Multi-DUT) while at the same time enabling the concurrent test of multiple technologies. It has the ability to test GPS, FM, and WiFi, all at the same time, rather than serially. Combined, these Multi-DUT and Multicom capabilities can increase production test throughput by up to 500% compared to single-DUT, serial test methods. Both of these distinct features are key to providing maximum production output with a single test system implementation.
