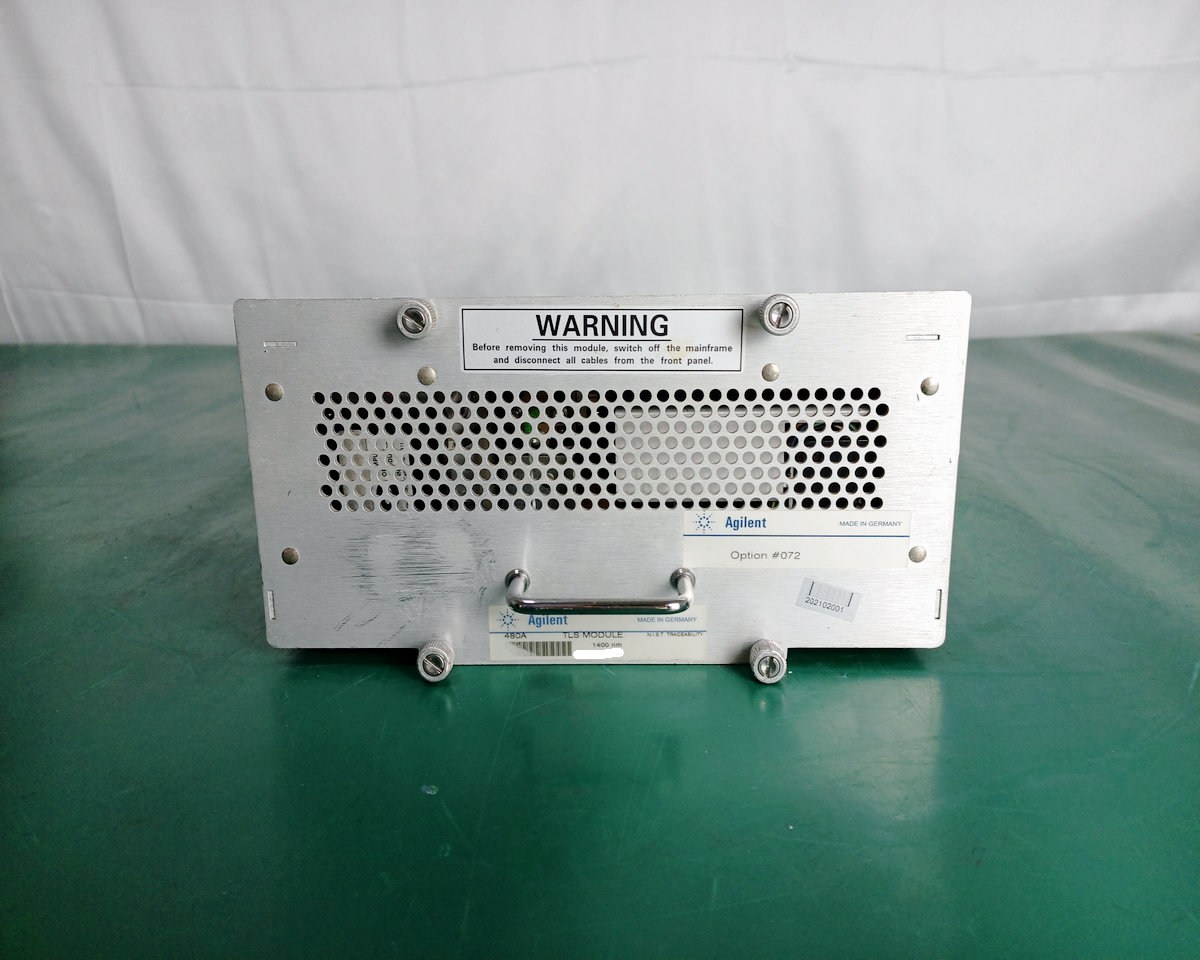

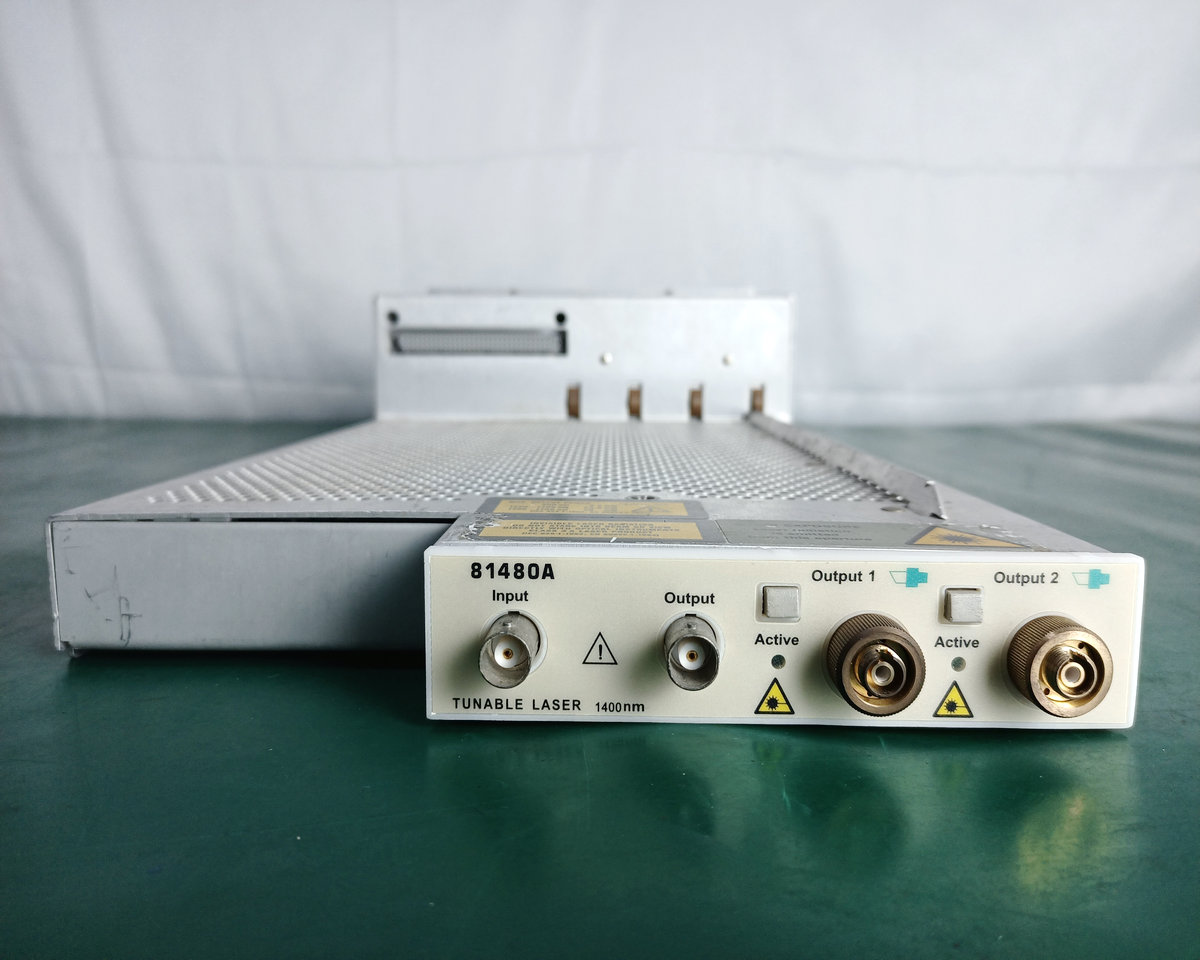

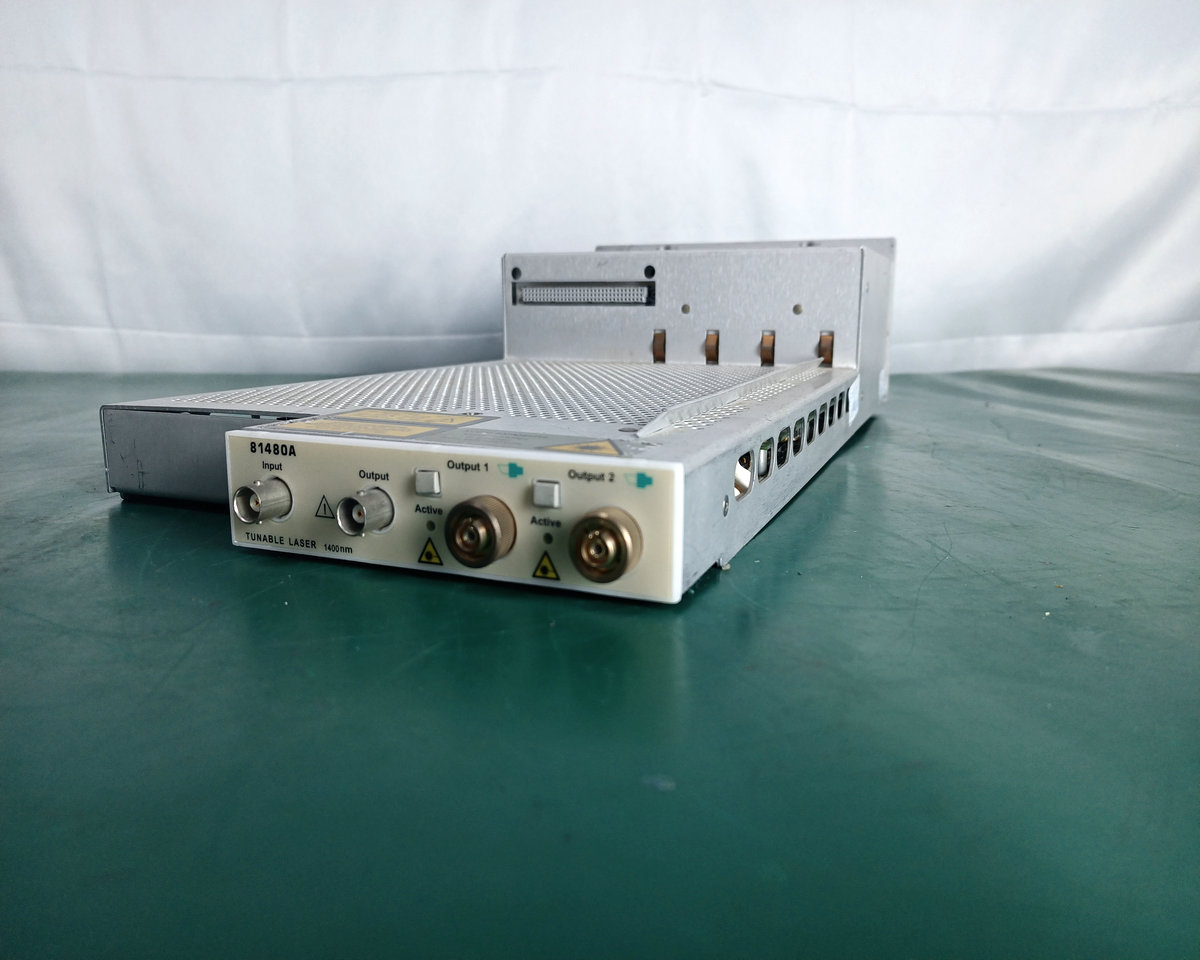

销售安捷伦 81480A 可调谐激光源模块

浏览次数:187

产品参数

选件 是否计量 发货周期 保修时间 成色
否 3天 90天 8成新
所在地 机身号 状态 资料下载
深圳市 完好
更新日期:2024-12-10
联系电话:0755-86016691

* 产品描述

产品描述:

是德81480A可调激光源覆盖S-Band。(1370到1480nm)。是为测试关键DWDM无源元件而特殊设计的。


特点:
  • 为S-Band特殊设计
  • 连续扫描整个波长范围
  • 高动态范围的源自发发射输出低
  • 光学放大器测试高功率光纤输出
  • 内置实时波长表
  • 整个波长范围的免跳模调整
  • 两种光纤输出都配备了Panda型极化维护光纤
规格:
  • 波长范围:1370nm到1480nm
  • 最大输出功率:+ 5.5dBm
  • 波长精确度 (abs.):±0.01nm
  • 波长重复性 (typ.): ±0.5 pm
  • 波长稳定性 (typ.): <±1pm
  • 信号与源的自发发射比率:
  • ≥ 61dB/nm Output1 (1420 - 1470nm)
  • 信号与所有源的自发发射比率:
  • ≥ 58dB Output1 (1420 - 1470 nm)

详细信息

Product Description:
The  81480A tunable laser source covers the S-band. (1370 to 1480nm). It is especially designed for testing critical DWDM passive components.

The Agilent 81480A is specially designed for the S-Band. It has continuous sweep through full wavelength range with mode-hop free tuning over full wavelength range. The 81480A also has low source spontaneous emission output for high dynamic range. Other key features include high power optical output for optical amplifier test and a built-in real-time wavelength meter. Both optical outputs of the 81480A are equipped with Panda type polarization maintaining fiber.


Features:
  • Wavelength Range: 1370nm to 1480nm
  • Max.Output Power: + 5.5dBm
  • Wavelength Accuracy (abs.): ±0.01nm
  • Wavelength repeatability (typ.): ±0.5 pm
