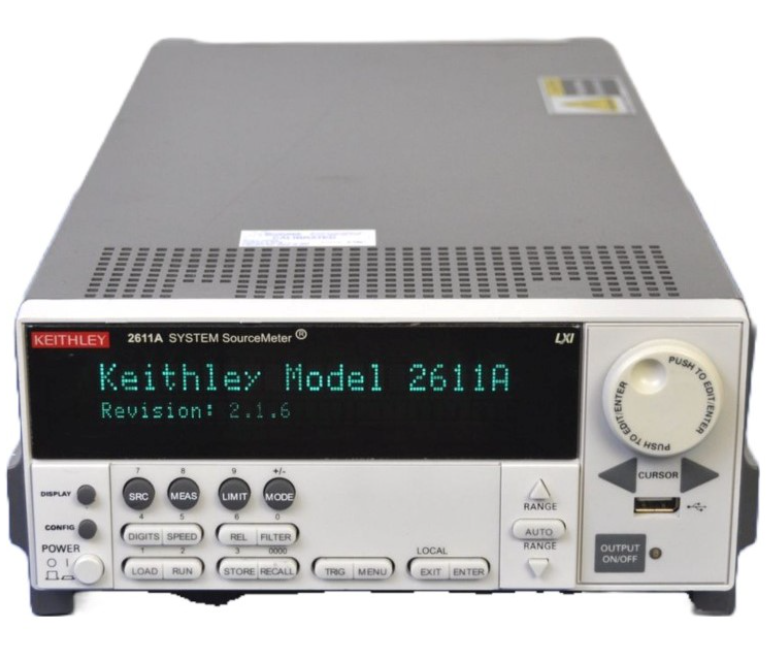

销售吉时利 2611A 单通道系统数字源表

浏览次数:206

产品参数

选件 是否计量 发货周期 保修时间 成色
否 5天 90天 8成新
所在地 机身号 状态 资料下载
深圳市 完好
更新日期:2024-09-19
联系电话:0755-86016691

* 产品描述

产品介绍:

吉时利2611A SourceMeter可用作台式IV表征工具或多通道IV测试系统的构件。对于台式使用,吉时利2611A SourceMeter具有嵌入式TSP®Express软件工具,使用户无需编程或安装软件即可快速轻松地执行常见的IV测试。对于系统级应用程序,吉时利2611A SourceMeter的测试脚本处理器(TSP®)体系结构以及并行测试执行和精确定时等新功能可提供业内最高的吞吐量,从而降低测试成本。


特点:
  • 单通道系统SourceMeter仪器
  • 将电源,真实电流源,数字万用表,任意波形发生器,V或I脉冲发生器与测量,电子负载和触发控制器结合在一起-全部集成在一台仪器中
  • 与2600系列SystemSourceMeter®仪器兼容的向后代码可直接替换
  • 用于快速简便IV测试的TSP®Express软件工具
  • 精确的定时和通道同步(<500ns)
  • 并行测试执行,可提供无与伦比的吞吐量
  • 20,000 rdg / s提供更快的测试时间,并能够捕获瞬态设备行为
  • 产品系列提供宽动态范围:1fA至10A和1µV至200V
  • TSP-Link®总线每个GPIB或IP地址最多允许32个单元/ 64通道的通道扩展
  • 测试脚本处理器(TSP®)在仪器中运行完整的测试程序(脚本),以实现无与伦比的系统自动化
  • USB端口,用于保存数据和测试脚本
  • 符合LXI C类标准,可提供高速数据传输,并实现快速,轻松的远程测试,监视和故障排除

详细信息

Product introduction:

Gishili 2611A SourceMeter can be used as a benchtop IV characterization tool or as a component of a multi-channel IV test system. For desktop use, Gishili 2611A SourceMeter features embedded TSP®Express software tools that allow users to quickly and easily perform common IV tests without programming or installing software. For system-level applications, Gisshili 2611A SourceMeter's Test Script Processor (TSP®) architecture and new capabilities such as parallel test execution and precise timing deliver the highest throughput in the industry, resulting in lower testing costs.


Features:
  • Single channel system SourceMeter instrument
  • Combine power supply, real current source, digital multimeter, arbitrary waveform generator, V or I pulse generator with measuring, electronic load and trigger controller - all integrated in one instrument
  • Backward codes compatible with 2600 Series SystemSource cemeter ® instruments are directly replaceable
  • TSP®Express software tool for quick and easy IV testing
  • Precise timing and channel synchronization (<500ns)
  • Parallel test execution provides unparalleled throughput
  • 20,000 rdg/s provides faster test times and the ability to capture transient device behavior
  • The product family offers a wide dynamic range: 1fA to 10A and 1µV to 200V
  • The TSP-Link® bus allows up to 32 cell / 64 channel extensions per GPIB or IP address
  • Test Script Processor (TSP®) runs complete test programs (scripts) in the instrument for unparalleled system automation
  • USB port for storing data and test scripts
  • Compliant with LXI Class C standards, it provides high-speed data transmission and enables fast and easy remote testing, monitoring and troubleshooting
