Product Description:

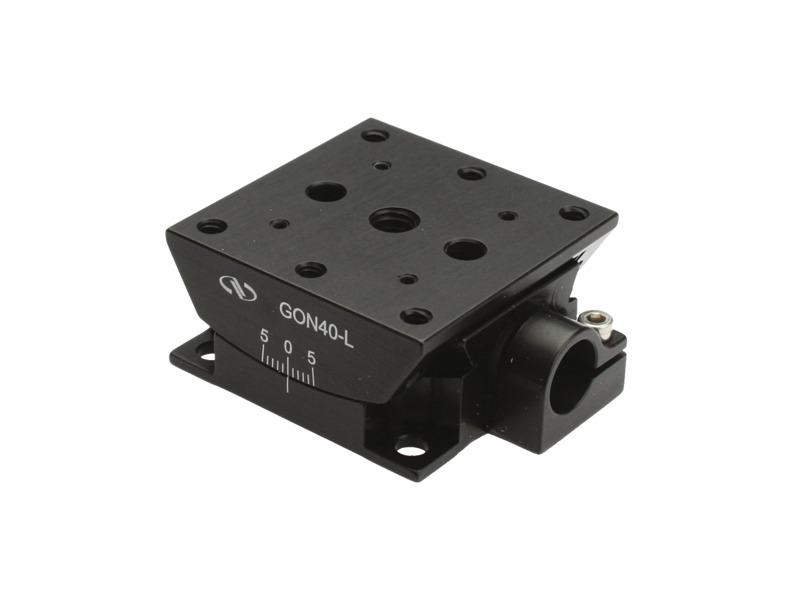

The GON40-L lower angular displacement table rotates the object around an axis that is unhindered by the platform itself and located at the top center of the platform. The GON Series angular rotation platform uses a precision dovetail slotting slide driven by an actuator and fitted with a spring to reduce the recoil common in wormwheel-driven platforms. The spring-loaded design has the added advantage of interchangeable actuators, with adjustable sensitivity to choose from a variety of actuators, such as precision adjustment screws, differential micrometers or electric actuators. The GON Series displacement stations of the same size can be used individually or in a stack. In a stacked configuration, the axes of rotation will intersect each other to move orthogonally around common points in space. When used with a 13 mm stroke actuator, the GON40-L angular displacement table has a rotating motion range of ±5°. The movement of the measuring table can be firmly locked using the hexagonal screws on the side of the stage.
Features:
-
Realize the interchangeability of actuators
-
Can be combined to provide multi-axis motion
-
Can be easily adapted to the needs of specific systems
