销售安立 MS4623A 网络分析仪

浏览次数:188

产品参数

选件 是否计量 发货周期 保修时间 成色
否 3天 90天 8成新
所在地 机身号 状态 资料下载
深圳市 完好
更新日期:2024-10-29
联系电话:0755-86016691

* 产品描述

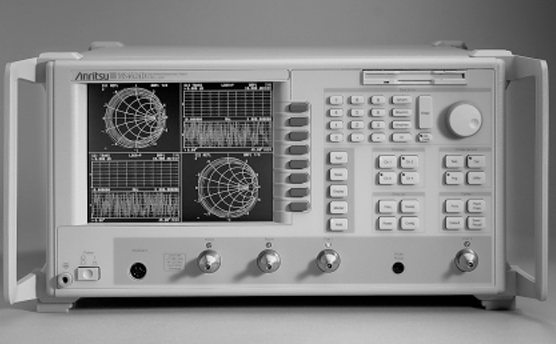

MS4623A 是 Anritsu 的 6 GHz 网络分析仪。网络分析仪是一种功能强大的仪器,可以以无与伦比的精度测量射频设备的线性特性。许多行业都使用网络分析仪来测试设备、测量材料和监测信号的完整性。

附加功能:

  • 频率范围:10 MHz-6 GHz
  • 测量速度:150 μsec/点
  • 动态范围:125 dB
  • 源功率:+10 dBm
  • 接收器噪声低至 –115 dBm
  • S 参数不确定度:< 0.05 dB
  • 混合模式 S 参数
  • 嵌入/反嵌入ng
  • Arbitrary Impedance
  • AutoCal® 简化了 2、3 和 4 端口校准
  • N 型、3.5 mm 或 GPC-7 连接器
  • 序列 自动重复击键
  • 增强的标记简化了数据收集
  • 用于自定义数据查看的叠加显示
  • 用于大容量存储的外部 SCSI 接口



详细信息

The MS4623A is a 6 GHz network analyzer from Anritsu. A network analyzer is a powerful instrument that measures linear characteristics of radio frequency devices with unparalleled accuracy. A range of industries use network analyzers to test equipment, measure materials, and monitor the integrity of signals.

Additional Features:

  • Frequency range: 10 MHz-6 GHz
  • Measurement Speed: 150 μsec/point
  • Dynamic Range: 125 dB
  • Source Power: +10 dBm
  • Receiver Noise as Low as –115 dBm
  • S-Parameter Uncertainty: < 0.05 dB
  • Mixed Mode S-Parameters
  • Embedding/De-embedding
  • Arbitrary Impedance
  • AutoCal® Simplifies 2,3 and 4-Port Calibrations
  • N-type, 3.5 mm, or GPC-7 Connectors
  • Sequences Automate Repetitive Keystrokes
  • Enhanced Markers Simplify Data Collection
  • Overlay Displays to Customize Data Viewing
  • External SCSI Interface for Massive Storage
