Product Description:

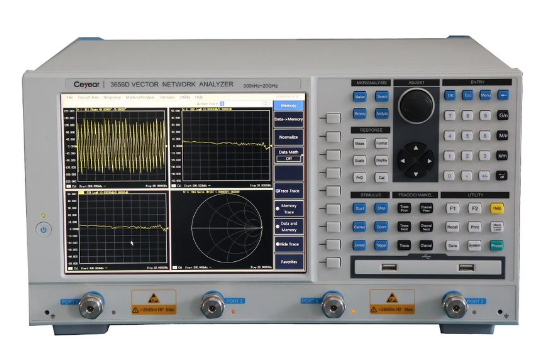

The 3656 series vector network analyzer is suitable for wireless communication, cable TV, education and automotive electronics, and can be used to measure the performance of RF components such as filters, amplifiers, antennas, cables and cable TV connectors. The product uses Windows operating system; It has error calibration function, time domain function and fixture simulator function. It has many display formats such as logarithmic amplitude, linear amplitude, standing wave, phase, group delay, Smith circle chart, polar coordinates, etc. Multiple calibration methods are available, including frequency response, single port, response isolation, enhanced response, full dual port, fast SOLT calibration and electrical calibration. Capable of multi-channel and multi-window display; It has USB port, LAN port, GP-IB port, VGA port. It can quickly and accurately measure the amplitude, phase and group delay characteristics of the S-parameter of the measured part, with efficient and powerful error correction capability.
Features:
Dynamic range up to 125dB (IFBW=10Hz) for accurate measurement of high rejection ratio devices.
0.001dBrms trace noise, can effectively reduce the measurement error
The time domain software function can be used to measure the time domain of the tested part and comprehensively test the performance index of the tested part. For example, cable fault location and length measurement.
With limit test, ripple test, bandwidth test, filter automatic statistics and other analysis functions, so that loss, ripple, suppression at a glance, and easy to debug the filter.
