Product Description:

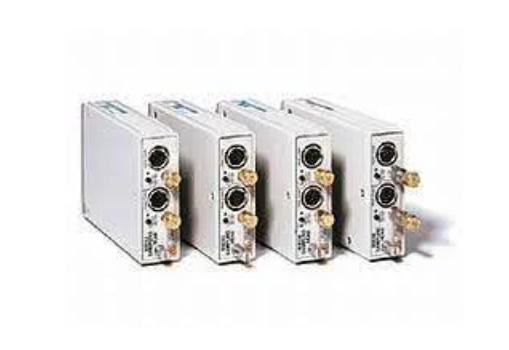

The 80E02 is a dual-channel 12.5 GHz sampling module designed for low noise measurement in digital communications and device characterization applications. It provides a collection rise time of 28 ps and a typical display noise of 400 μVRMS.
The 80E02 is ideal for low noise applications. Common applications for the 80E02 include capturing and displaying the switching characteristics of high-speed communication circuits, making accurate statistical measurements of signal noise and signal timing jitter, or obtaining stable timing measurements of fast digital ics.
When used with the Tektronix 80SJNB Jitter, Noise and BER software, these modules are able to separate jitter and noise into their components, understand the precise cause of eye closure, and obtain highly accurate BER and 3-D eye contour inference. When used with the 82A04 phase reference module, the timebase accuracy can be improved to 200 fsRMS jitter, which, combined with 300 μV background noise and 14-bit resolution, ensures the highest signal fidelity of the measured signal.
Features:
Bandwidth up to 70 GHz and measured rise time of 5 ps (10-90%)
The lowest analysis noise - 450 μVRMS at 60 GHz and 300 μVRMS at 30 GHz
Remote Sampler *1 Position the sampler close to the DUT and ensure optimal signal fidelity
Independent injector offset correction ensures easy deembedding of fixtures and probes
Precision microwave connectors (3.5mm, 2.92mm, 2.4mm and 1.85mm) up to 70 GHz bandwidth and 5 ps measurement rise time (10-90%)
The lowest analysis noise - 450 μVRMS at 60 GHz and 300 μVRMS at 30 GHz
