Product Description:

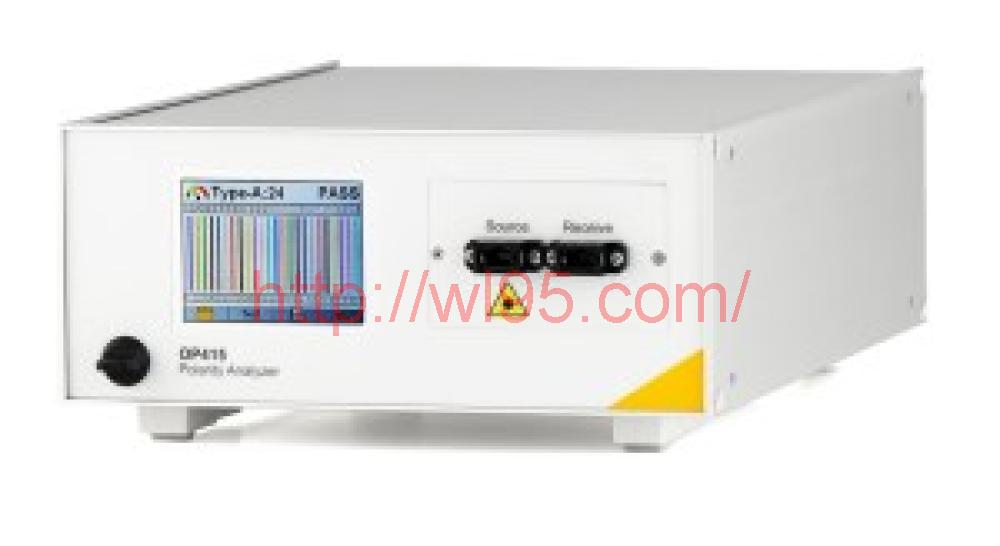

OP415 is designed to efficiently test 24-core MTP®/MPO cable assemblies, but it can be easily configured for 8-core and 12-core testing. It is pre-installed with 12 fibers and 24 fiber polarity types A, B, and C, and can create and store custom fiber mapping and channel configurations. Alternatively, OP415 can learn the polarity type from existing cables and store it for future use.
Features:
-
Test the polarity of 24 fiber optic cables in 1.5 seconds
-
Replaceable front panel box for 16, 12 or 8 fiber MTP®/MPO configuration
-
Test polarity type A, B, C or custom configuration:
(1) Simple pass/fail of predefined polarity type
(2) Or identify the cable polarity type
-
Learn polarity types from existing cables and store your custom polarity for instant retrieval
-
Visual fault finder with 24 independent bright red 650nm lasers helps visual channel identification and routing
-
Especially suitable for round non-color-coded fibers; just terminate one end and use the VFL function to identify the channel terminated by the second connector
-
Power level display provides valuable feedback on the quality of each channel termination
-
Built-in memory stores results for later analysis
-
The full-color touch screen graphically displays the fiber distribution map for rapid production
