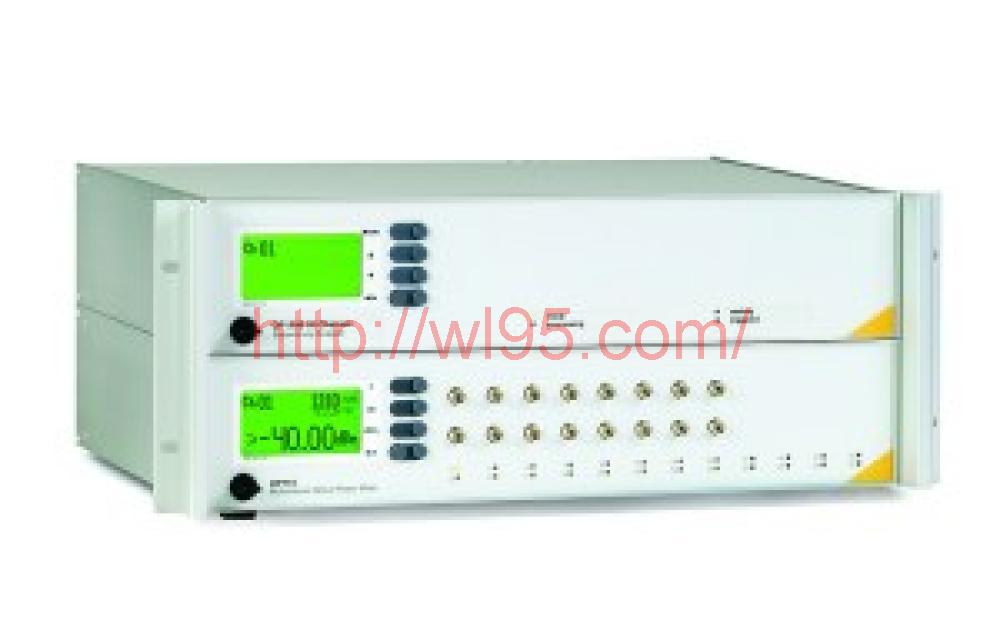

销售OptoTest OP1100 光纤不连续性测试仪和分析仪

浏览次数:269

产品参数

选件 是否计量 发货周期 保修时间 成色
否 1-4周 12月 全新
所在地 机身号 状态 资料下载
深圳市 完好
更新日期:2021-12-08
联系电话:0755-86016691

* 产品描述

产品描述:

OP1100 光纤不连续性测试仪和分析仪可让您每0.8 微秒到 1 秒捕获一次短暂的光功率中断和丢失。随附的易于操作的 OPL-Disc 软件将所有事件记录到电子表格中以供分析。本产品根据 EIA/TIA-FOTP-32A 进行测试。


该测试解决方案提供了一种方法,用于测试各种无源或有源光纤组件在施加外部刺激(例如温度、振动或物理冲击)期间对不连续性(信号丢失、瞬态输出或透射率波动)的敏感性。


产品特点:

  • 单模/多模能力
  • 输入功率范围 -40dBm 至 -2dBm
  • 0.8µs 至 1s 的可选压差检测范围
  • 0.5dB 至 3dB 的可选损耗阈值
  • 捆绑的 OPL-DISC 应用程序,可将数据直接记录到电子表格中
  • USB 接口可实现无缝远程控制
  • 支持最常见的连接器选项(FC、ST、SC 等)


详细信息

Product Description:
OP1100 Fiber Discontinuity Tester and Analyzer allows you to capture a brief interruption and loss of optical power every 0.8 microsecond to 1 second. The accompanying easy-to-operate OPL-Disc software records all events in a spreadsheet for analysis. This product is tested according to EIA/TIA-FOTP-32A.


This test solution provides a method for testing various passive or active fiber optic components against discontinuities (signal loss, transient output, or transmittance) during the application of external stimuli (such as temperature, vibration, or physical shock) Volatility).


Features:

  • Single-mode/multi-mode capability
  • Input power range -40dBm to -2dBm
  • Optional differential pressure detection range from 0.8µs to 1s
  • Selectable loss threshold from 0.5dB to 3dB
  • The bundled OPL-DISC application can record data directly into a spreadsheet
  • USB interface can realize seamless remote control
  • Supports the most common connector options (FC, ST, SC, etc.)
