| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 1-4周 | 12- | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |

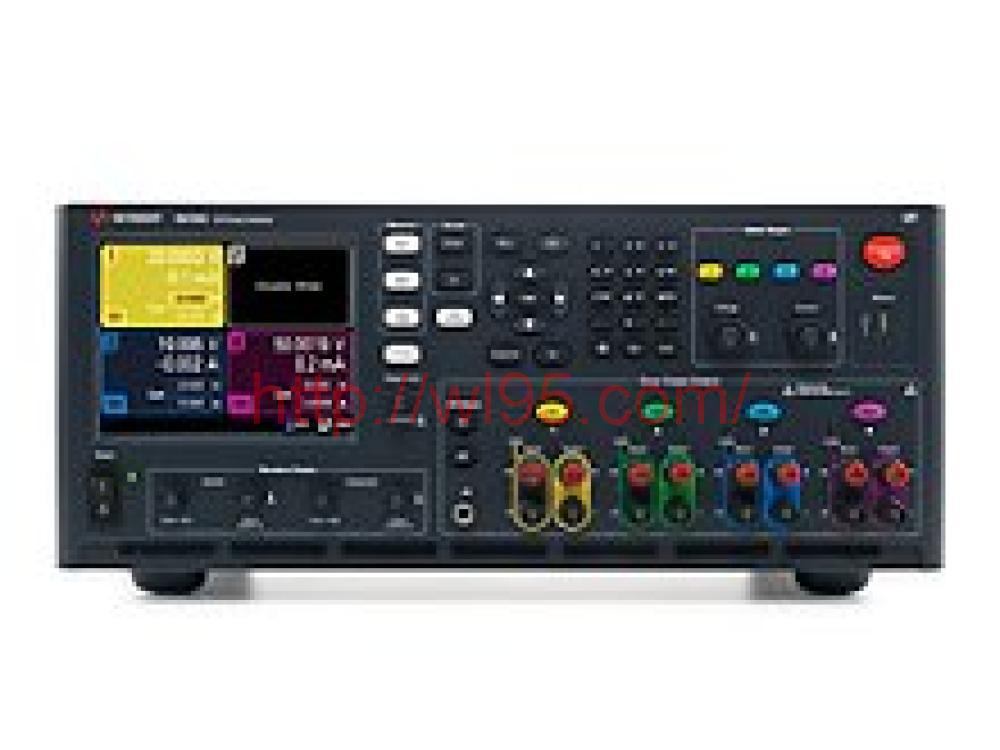

N6705C 直流电源分析仪将多达 4 个先进电源与数字万用表、示波器、任意波形发生器和数据记录仪功能融为一体，可以显著提高为被测器件提供和测量直流电压和电流的效率。N6705C 可独立测量被测器件的输入电流，无需使用多个设备构建包括传感器（例如电流探头和分路器）在内的复杂测量装置。它也无需开发和调试程序，即可控制仪器组合并进行有效的测量，因为前面板已经提供了所有功能和测量。它还可与 14585A 控制和分析软件一起使用，获得更强大的控制和分析功能。若需要自动进行工作台设置，N6705C 可通过 GPIB、USB、LAN 进行完全编程，并且符合 LXI 类标准。
支持 BenchVue 软件：配合使用计算机和仪器，可以完成更多工作，并且无需编程。通过计算机轻松控制电源来设置参数，快速构建自动测试。
N6705C 提供了灵活的配置，可满足您对电源和分析功能的需求。它是一款 4 插槽主机，可安装多达 4 个直流电源模块，直流总输出功率高达 600 W。模块需单独订购。
N6705C 和 N6700 模块化电源系统支持相同的模块，可选择的模块超过 30 种。适用于 N6705C 的基础电源包括：50 W、100 W 和 300 W；电压高达 150 V，电流高达 50 A。适用于 N6705C 的高性能电源包括 ：50 W、100 W、300 W 和 500 W；电压高达 60 V，电流高达 50 A。适用于 N6705C 的精密电源包括：50 W、100 W、300 W 和 500 W；电压高达 60 V，电流高达 50 A。适用于 N6705C 的电源/测量单元包括：20 W；电压高达 20 V，电流高达 3 A。每个模块均包括内置电压表、安培计、示波器、任意波形发生器和数据记录仪功能。
The N6705C DC Power Analyzer provides unrivaled productivity gains for sourcing and measuring DC voltage and current into the DUT by integrating up to 4 advanced power supplies with DMM, Scope, Arb, and Data Logger features. The N6705C eliminates the need to gather multiple pieces of equipment and create complex test setups including transducers (such as current probes and shunts) to measure current into your DUT. The DC Power Analyzer also eliminates the need to develop and debug programs to control a collection of instruments and take useful measurements because all functions and measurements are available at the front panel. For even greater control and analysis functions, the DC Power Analyzer can be used with the NEW PathWave BenchVue BV9200 Control and Analysis Software or 14585A Control and Analysis Software. The BV9200 software offers the same functionality as the 14585A software with an updated user interface, new advanced data analysis features, and automation capability. When automated bench setups are required, the N6705C is fully programmable over GPIB, USB, LAN and is LXI Compliant. Find more information on BV9200 Control and Analysis Software or 14585A Control and Analysis Software.
BenchVue software enabled: Do more with your PC and instrument together, no programming required. Easily control your power supplies to set parameters and quickly build automated tests on your PC.
The N6705C offers flexible configuration to meet your power sourcing and analysis requirements. The N6705C is a 4-slot mainframe that accepts up to 4 DC Power Modules, and up to 600 W total DC Power Module output power. The modules are ordered separately.
N6705C accepts the same modules as N6700 Modular Power System, with over 30 modules to choose from. Basic sources for the N6705C include: 50 W, 100 W, and 300 W; up to 150 V, up to 50 A. High-performance sources for the N6705C include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50 A. Precision sources for the N6705C include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50 A. Source/Measure units for the N6705C include: 20 W; up to 20 V, up to 3 A. Each module includes built-in voltmeter, ammeter, scope, arbitrary waveform generator, and data logger functions.
