浏览次数：707
| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 1-4周 | 12- | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |
CX1101A 单通道电流传感器具有 40 nA 至 1 A 的宽测量范围、100 MHz 的独立最大带宽，以及该系列中最宽的 ±12 V 共模电压范围，能够满足多种应用的需求。它使用传感器头适配器与被测器件建立电气连接，并配备一套 CX1203 同轴端接传感器头和电缆，让您可以立即开始测量。宽带噪声抑制电流测量技术使您能用小输入电阻（通常为 410 mΩ）测量低电平电流波形。使用一个 CX1206A 大电流传感器头，可将最大电流波形测量扩展至 10 A。
RENT KEYSIGHT CX1101A

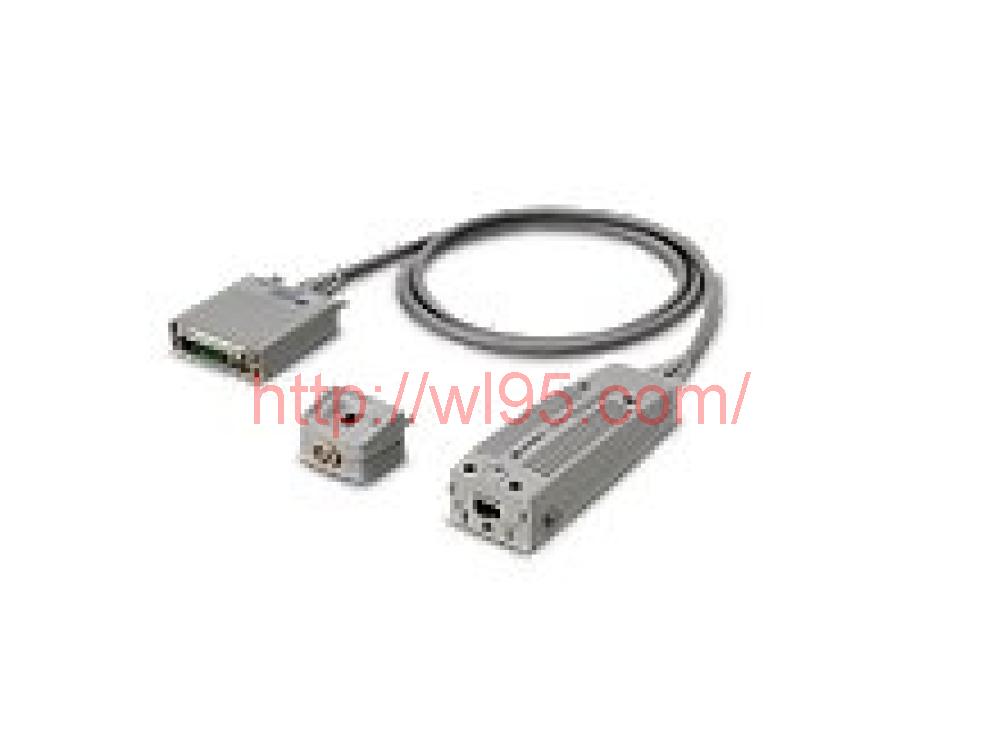

The Keysight CX1101A Single Channel Current Sensor covers many types of applications with the wide measurement ranges from 40 nA to 1 A, 100 MHz stand-alone maximum bandwidth, and the series widest common mode voltage range. Using a Sensor Head adapter enables the electric connection to DUT, and one CX1203 Coaxial Termination Sensor Head and cables are furnished, so that you can start measurements immediately. The wideband noise suppressed current measurement technology allows you to measure low-level current waveforms with a small value of input resistance typically 410 mΩ. Using a CX1206A High Current Sensor Head extends the maximum current waveform measurements up to 10 A.
Features and specificaiton of the Keysight CX1101A include:
