浏览次数：243
| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 1-4周 | 12- | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |

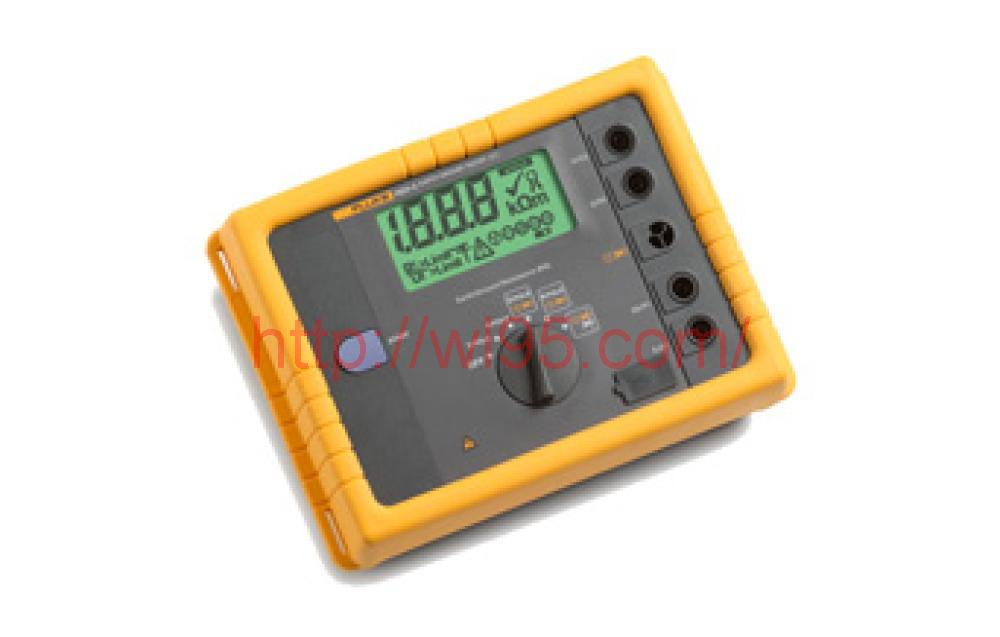

Fluke 1623-2 Earth Ground Tester快速，准确地执行了所有四个地面测试。
Fluke 1623-2接地测试仪仅使用夹具，桩子或一个夹具和桩子来测量接地回路电阻。通过无桩测试方法，Fluke 1623-2能够仅使用电流钳来测量多接地系统的接地回路电阻。这种技术消除了断开平行地面并找到辅助地面桩的合适位置这一危险且耗时的工作。您可以使用它在以前未曾考虑过的地方进行接地测试，例如建筑物内，电力塔或无法接触土壤的任何地方。
保持您的选择开放
请记住，只有在被测建筑物或结构存在粘结接地系统的情况下，无桩测试方法才有效。如果只有一条接地线（通常在许多住宅应用中使用），则将需要使用需要桩的电位降测试方法。
1625-2也非常易于使用。世界一流的配件可加快设置和测试时间。测试仪会告诉您每次测试要连接哪个桩或夹具。大的旋转开关和按钮即使戴手套也很容易操作。您最多可以存储1,500条记录，并可以通过USB端口轻松访问它们。
需要更高的准确性吗？查看提供以下内容的1625-2：
其他有用的功能：
Fluke 1623-2 Earth Ground Tester performs all four ground tests quickly and accurately.
The Fluke 1623-2 earth ground tester measures earth ground loop resistances using only clamps, only stakes, or one clamp and stakes. With the stakeless test method, the Fluke 1623-2 is able to measure earth ground loop resistances for multi-grounded systems using only current clamps. This technique eliminates the dangerous, and time consuming job of disconnecting parallel grounds, and finding suitable locations for auxiliary ground stakes. You can use it to perform earth ground tests in places you’ve not considered before, such as inside buildings, on power pylons, or anywhere you don’t have access to soil.
Keep your options open
Keep in mind, the stakeless test method works only if a bonded earth ground system exists for the building or structure under test. If there is only one path to ground, typical with many residential applications, you will need to use the fall-of-potential test method that requires stakes.
The 1625-2 is also very easy to use. World class accessories speed set up and test time. And the tester tells you which stakes or clamps to connect for each test. The large rotary switch and buttons are easy to operate even with a gloved hand. And you can store up to 1,500 records and access them easily via the USB port.
Need even more accuracy? Check out the 1625-2 that offers:
Other useful capabilities:
