浏览次数：504
| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 1-4周 | 12- | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |
产品介绍
AV3644A/45A/46A/49/49A S参数测试模块是研发矢量网络分析仪系列产品基础上推出的新一代毫米波扩频产品，与上一代毫米波扩频系统相比，其在测量速度、动态范围、测量稳定性等方面都有明显改善，是上一代毫米波矢量网络分析仪扩频系统的更新换代产品。在硬件方面，采用全新的设计理念与技术方案，使整机的关键技术性能指标获得显著提高；

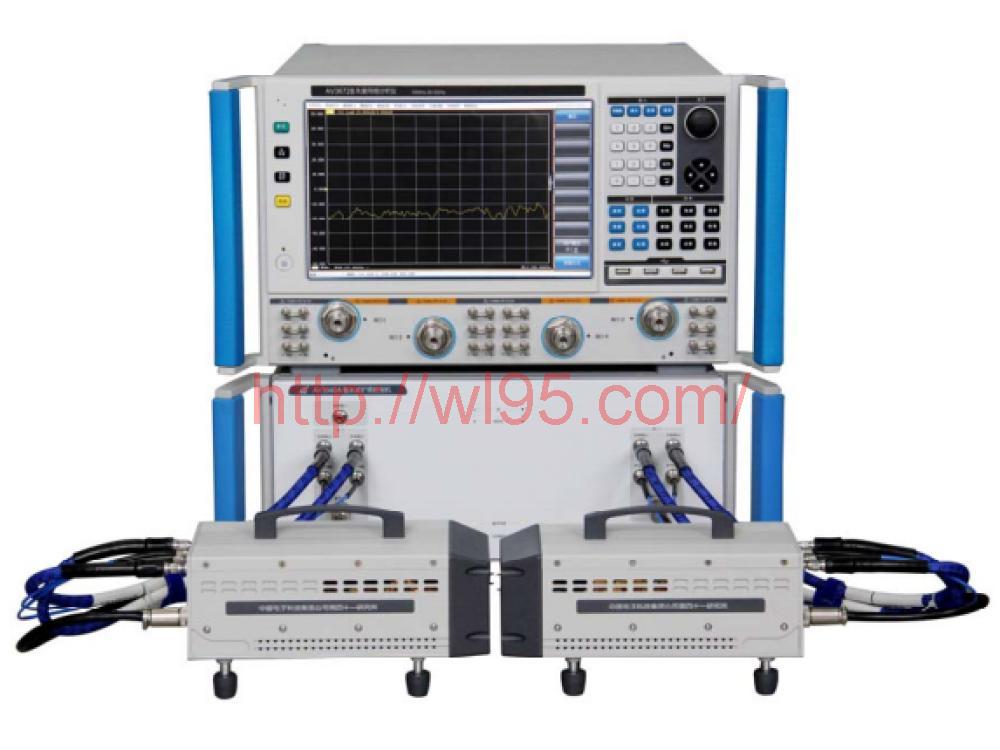

AV3644A/45A/46A/49/49A T/R测试模块可与AV3640A毫米波扩频控制机、矢量网络分析仪组成毫米波矢量网络分析仪系统，实现5mm、3mm、2mm、1mm频段及更高频段的灵活配置，具有系统配置简洁、用户界面友好、测试精度高等功能特点，实现对毫米波被测网络全S参数的测量。该系统广泛应用于毫米波部件、MMIC、天线与RCS和材料等领域的研发和生产测试。
主要特点:
● 频率覆盖50GHz～325GHz
● Windows XP操作系统，中文菜单，兼备英文菜单选项
● 具有频响、单端口、响应隔离、全双端口、TRL等多种校准方式
● 适应不同型号矢量网络分析仪主机
product description
The AV3644A/45A/46A/49/49A S-parameter test module is a new generation of millimeter-wave spread spectrum products launched on the basis of the R&D vector network analyzer series. Compared with the previous generation millimeter-wave spread spectrum system, its measurement speed and dynamics The range, measurement stability and other aspects have been significantly improved. It is an updated product of the previous generation millimeter wave vector network analyzer spread spectrum system. In terms of hardware, the use of new design concepts and technical solutions has significantly improved the key technical performance indicators of the whole machine;
The AV3644A/45A/46A/49/49A T/R test module can be combined with the AV3640A millimeter wave spread spectrum controller and vector network analyzer to form a millimeter wave vector network analyzer system, realizing 5mm, 3mm, 2mm, 1mm frequency bands and higher The flexible configuration of the system has the features of simple system configuration, friendly user interface, and high test accuracy, and realizes the measurement of all S parameters of the millimeter wave measured network. The system is widely used in R&D and production testing of millimeter wave components, MMIC, antennas, RCS and materials.
Main features:
● Frequency coverage from 50GHz to 325GHz
● Windows XP operating system, Chinese menu, and English menu options
● With frequency response, single port, response isolation, full dual port, TRL and other calibration methods
● Adapt to different models of vector network analysis Host
