浏览次数：668
| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 1-4周 | 12- | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |

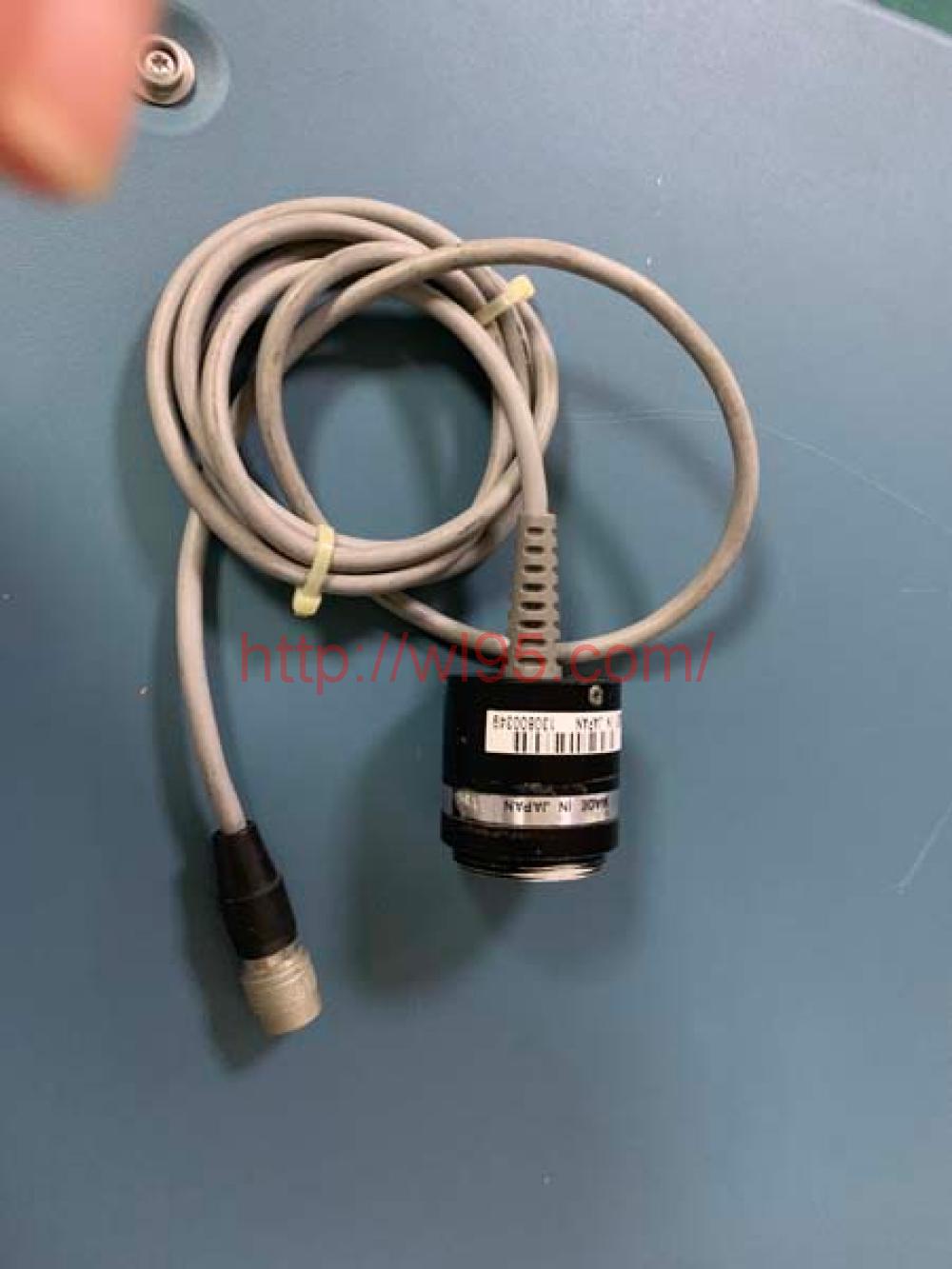

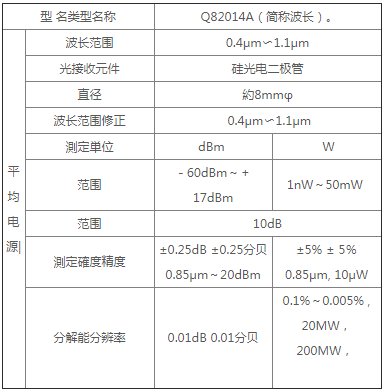

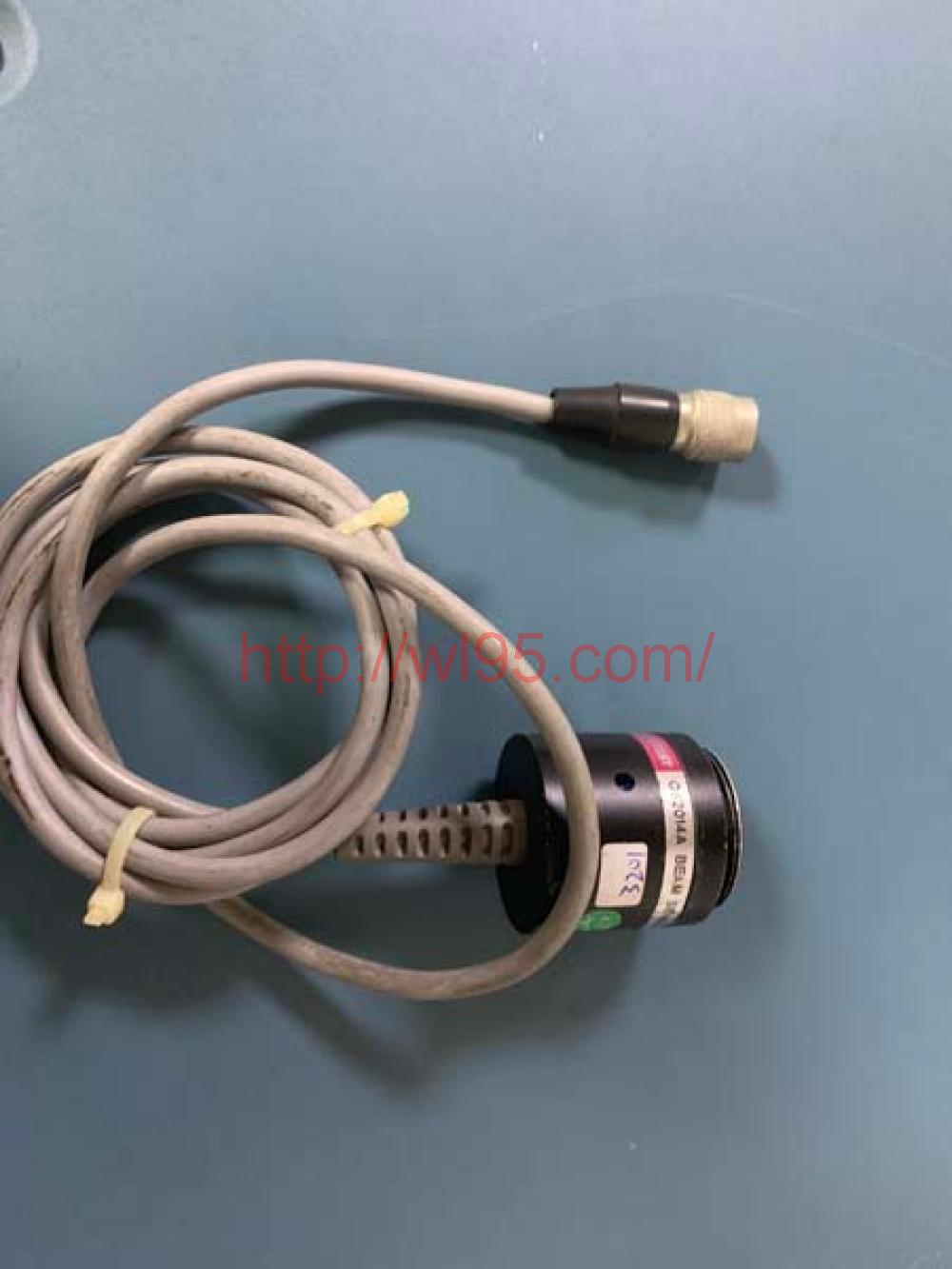

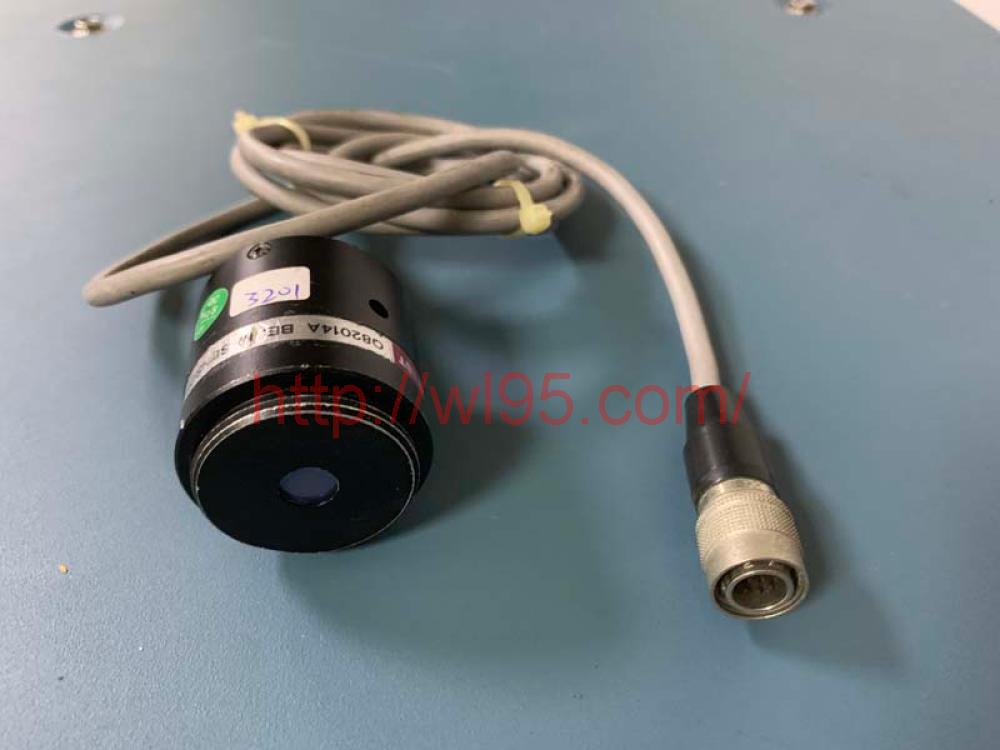

Q82014A （短波）光学传感器|光功率计探头|现货 波长范围 ，0.4μm〜1.1μm ；范围，－60dBm～＋17dBm（1nW～50mW）
产品详细信息
Absolute Accuracy of A/D converter:
±0.1%(included sensor measurement accuracy) dBr Function:
Measured value relative to a measured reference value AVR/PEAK function:
Available in the Q82021A AVG measures average power. PEAK measures peak power and enables waveform monitoring. CF (calibration factor) setting to compensate for sensor sensitivity:
Mode 1 (CFnm):
An internal calibration factor (standard data) is applied automatically according to the wavelength. The calibration factor is in dB for dBm measurement, and is a linear factor for watt measurement. Mode 2 (CFMPY······· CF multiply):
The calibration factor can be set manually from the front panel. The calibration factor is in dB for dBm measurement, and is a linear factor for Watt measurement. It is backed up when power is off.
