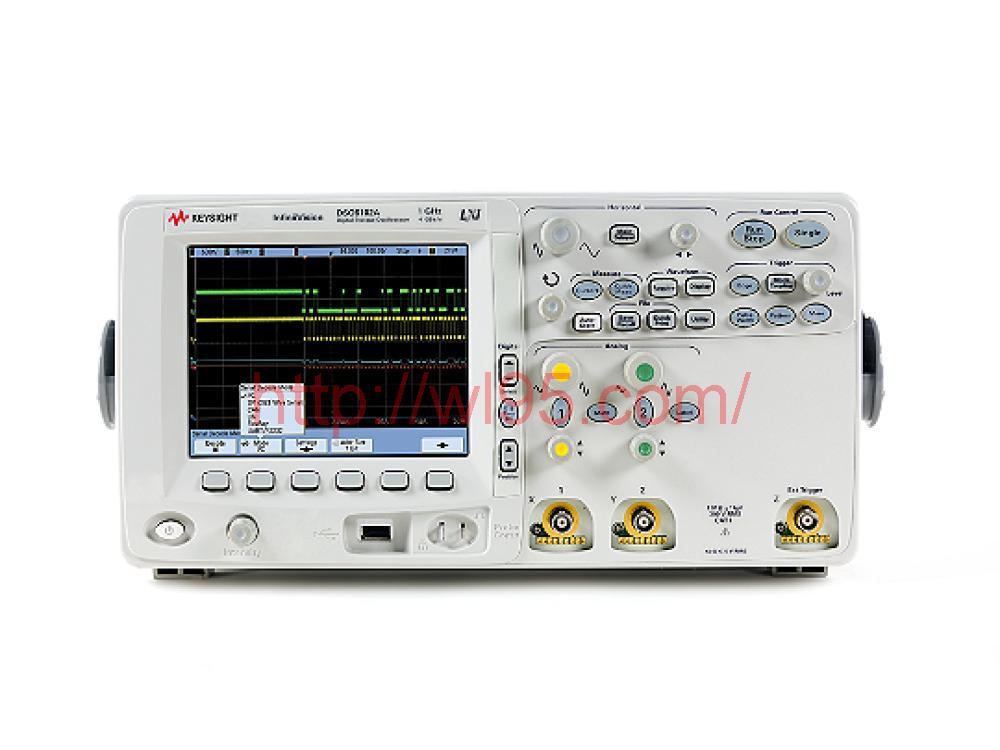

Bandwidth-1GHz,Maxium Sample Rate-4GSa/s,Channels-2
The performance and problem-solving tools you need to meet your mixed analog and digital design challenges, today and tomorrow
A variety of models optimized to meet your needs:
100 MHz, 300 MHz, 500 MHz and 1 GHz bandwidth
Up to 4 GSa/s sample rate
Unique 2+16-channel,4+16-channel mixed signal oscilloscope (MSO) and 2- or 4-channel digital storage oscilloscope (DSO) models
Industry-leading performance:
Standard 1 Mpts MegaZoom III deep memory;up to 8 Mpts optional
High-definition XGA (1024 x 768) color display system with ultra-fast real-time update rate of up to 100,000 waveforms/sec and 256 intensity levels
Flexibility to upgrade a DSO to an MSO at any time
Full-scale connectivity - Standard USB, LAN, GPIB and XGA video output
Powerful triggering including analog HDTV, CAN, I2C, LIN, SPI, and USB
AutoProbe interface
Built-in help system in six languages
NEW I2C/SPI, CAN/LIN bus decode options
NEW secure environment mode option
If you work with both analog and digital circuitry, Keysight Technologies 6000 Series oscilloscopes can help you easily see more signal activity in your designs. The unique 2+16- or 4+16-channel mixed signal oscilloscope (MSO) models and the traditional 2- and 4-channel digital storage oscilloscope (DSO) models are optimized with the capabilities you need for verifying and debugging designs that include embedded microcontrollers, DSPs, FPGAs,ADCs, DACs, and transducers.
These scopes give you the tools you need to solve your mixed analog and digital engineering challenges more easily. Ideal for mixed analog and digital signal analysis
The 6000 Series scopes combine a suite of essential features that are ideal for analyzing designs with both analog and digital components:
1 Mpts of Keysight Technologies third generation MegaZoom III deep memory captures long, non-repeating signals and maintains high sample rates, allowing you to quickly zoom in on areas of interest. Optional 2 Mpts and 8 Mpts memory lets you capture fast and elusive signal problems over even longer periods of acquisition time.
A revolutionary ultra-responsive, high-definition color display lets you see more signal details than ever before. The 100,000 waveforms/sec real-time waveform update rate is more than 27 times faster than that of a typical digital scope in this class.
Three standard interfaces: high-speed USB2.0 device, 10/100 Base-T LAN (Ethernet), and GPIB interfaces allow you to easily save your waveform data or images to your PC. You can print the waveforms on a connected printer or connect a USB flash drive (or other USB mass storage device) to the USB 1.1 host port on the front or the rear of the oscilloscope.
Flexible triggering lets you easily isolate and analyze the complex signals and fault conditions common in mixed analog and digital designs. I2C,CAN, LIN, USB, SPI and video, including analog HDTV/EDTV, triggering come standard.
When your needs change, you can upgrade your DSO6000 Series scope to an MSO with the addition of a scope logic kit that you can install yourself. This combination of capabilities is tailored to give you the measurement power you need to get your mixed analog and digital job done faster.
For more information, go to www.Keysight Technologies.com
Do you really want to start tomorrow's project with yesterday's oscilloscope technology on your bench? Here are six reasons to think twice about your first choice for a new scope:
More Bandwidth — Up to 1 GHz
More Channels — Up to 20 Time-Aligned Scope and Logic Channels in One Instrument
More Memory — Up to 800 Times More Than the Leading Competitor's Scope Series
More Triggering — Powerful Serial and Mixed-Signal Triggering Across All Channels
More Display — XGA Color Display with 100,000 Waveforms/Second Update Rate and 256 Levels of Intensity Grades
More Connectivity Choices — LAN, USB, GPIB and XGA Video are All Included Standard
