销售安捷伦 81595B 光开关

浏览次数：2016

晧辰自营，品质保证，配送快捷

点击这里>>了解回收业务详情

产品参数

选件	是否计量	发货周期	保修时间	成色
	否	7天	3-	9成新
所在地	机身号	状态	资料下载
深圳市		完好	点击下载

价格：电议

邮件咨询

加入收藏

加入购物车

更新日期：2020-03-14

联系电话：0755-86016691

* 产品描述

Main characteristics and technical indicators

Key performance specifications

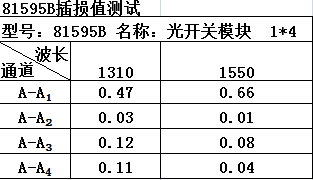

Insertion Loss < 1dB .. 2dB
Guaranteed lifetime > 10 Mio. cycles
PDL < 0.05dB
Highest repeatablity specified over 10.000 random switch cycles: 0.02dB

Description

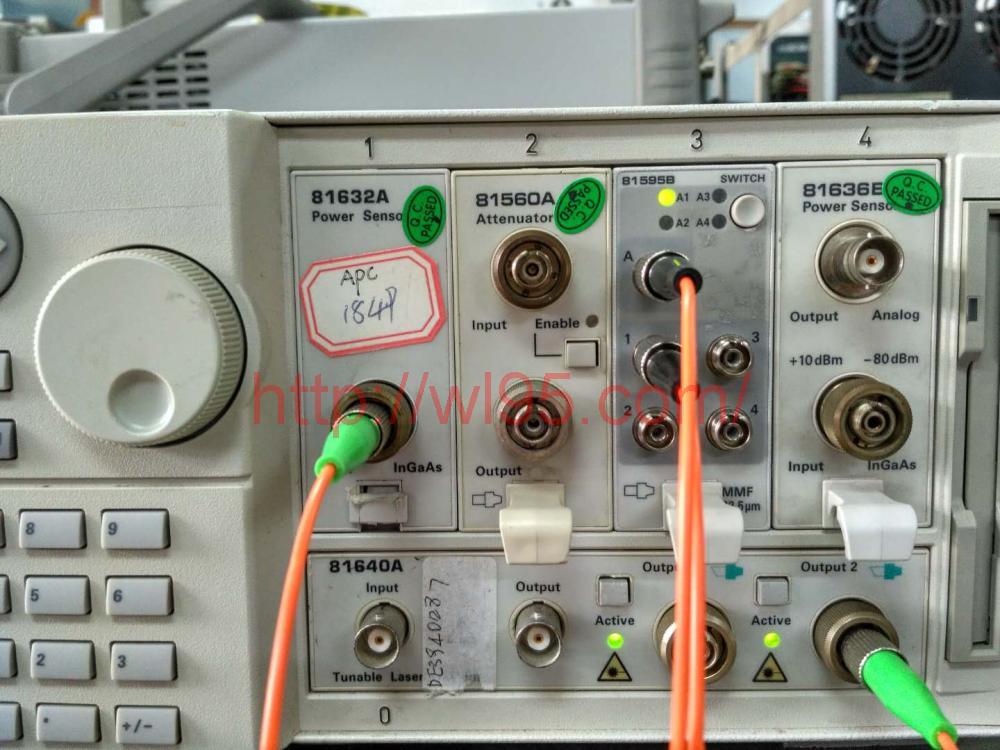

The plug-in module for Keysight's Lightwave Solution Platform 8163B, 8164B, 8166B is ideal for flexible system configuration in applications such as transceiver/receiver test with small foot-print or multiple passive component test with complex cascade.

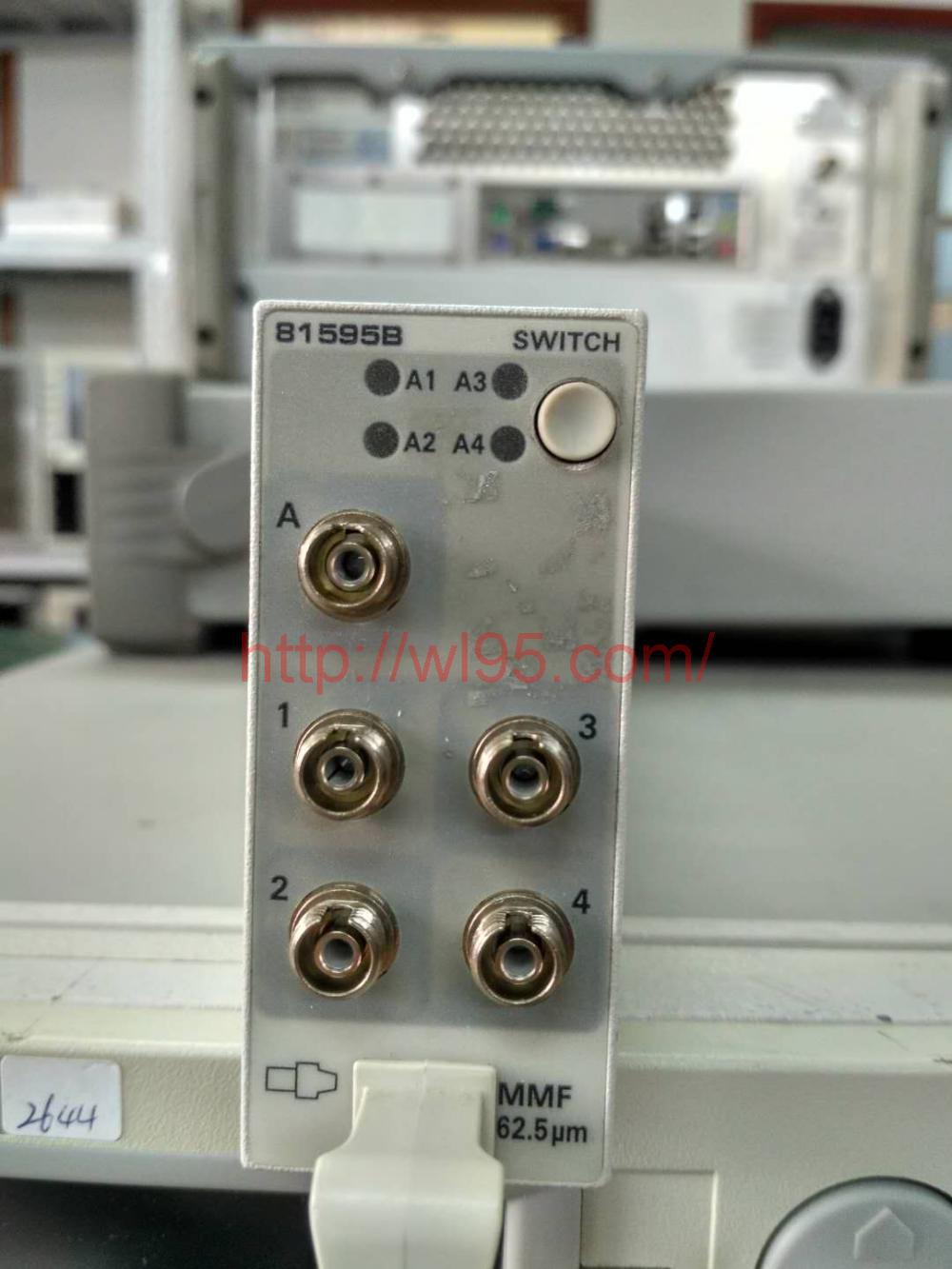

The Keysight modular design of the optical switch features a 1x4 matrix in both SMF and MMF with low insertion loss and highly repeatable switch routing in <10 ms switching time.

Routing of various optical sources such as laser in various wavelenght range and routing of various optical receiver such as power sensor, oscilloscope, BERT.

Features:

Highest repeatablity specified over 10.000 random switch cycles: 0.03dB
Guaranteed lifetime > 10 Mio. cycles
Insertion Loss < 2dB
PDL < 0.07dB for Single-mode option
Return Loss > 55dB
Crosstalk up to -70dB
High switching speed < 10ms

Benefits:

Using one test setup for testing DUTs in all transmission bands.
High uptime of test system minimize cost of ownership.
Minimize test uncertainties, maximize power budget enables higher production yield an highly competitive product specifications.
Minimize test times - maximize production throughput.
Minimal influence on transmitted signal.

主要特性与技术指标

Key performance specifications
Insertion Loss < 1dB .. 2dB
Guaranteed lifetime > 10 Mio. cycles
PDL < 0.05dB
Highest repeatablity specified over 10.000 random switch cycles: 0.02dB

描述

The Keysight modular design of the optical switch features a 1x4 matrix in both SMF and MMF with low insertion loss and highly repeatable switch routing in <10 ms switching time.

Routing of various optical sources such as laser in various wavelenght range and routing of various optical receiver such as power sensor, oscilloscope, BERT.

Features:

Highest repeatablity specified over 10.000 random switch cycles: 0.03dB
Guaranteed lifetime > 10 Mio. cycles
Insertion Loss < 2dB
PDL < 0.07dB for Single-mode option
Return Loss > 55dB
Crosstalk up to -70dB
High switching speed < 10ms

Benefits:

Using one test setup for testing DUTs in all transmission bands.
High uptime of test system minimize cost of ownership.
Minimize test uncertainties, maximize power budget enables higher production yield an highly competitive product specifications.
Minimize test times - maximize production throughput.
Minimal influence on transmitted signal.
