产品详情

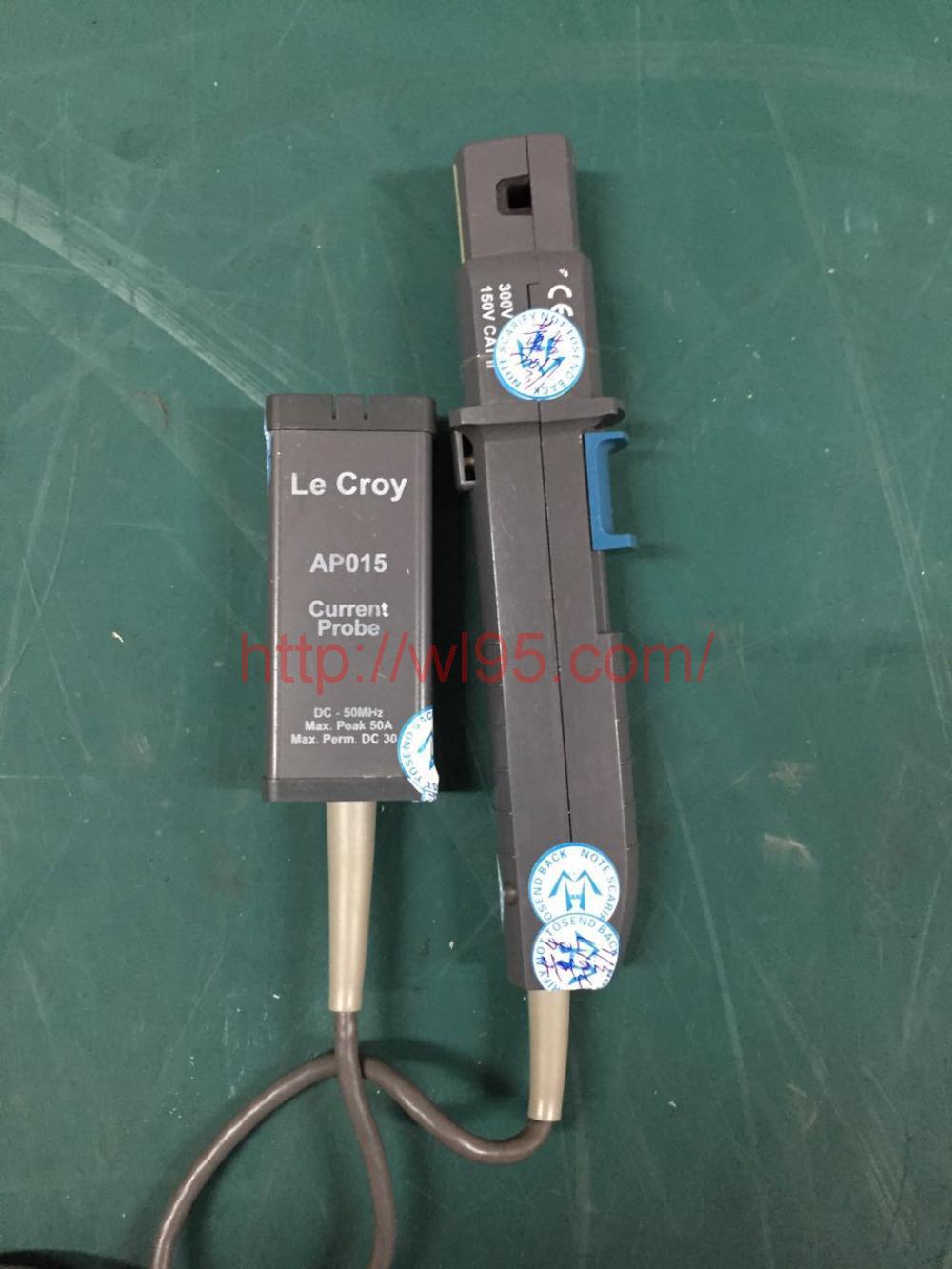

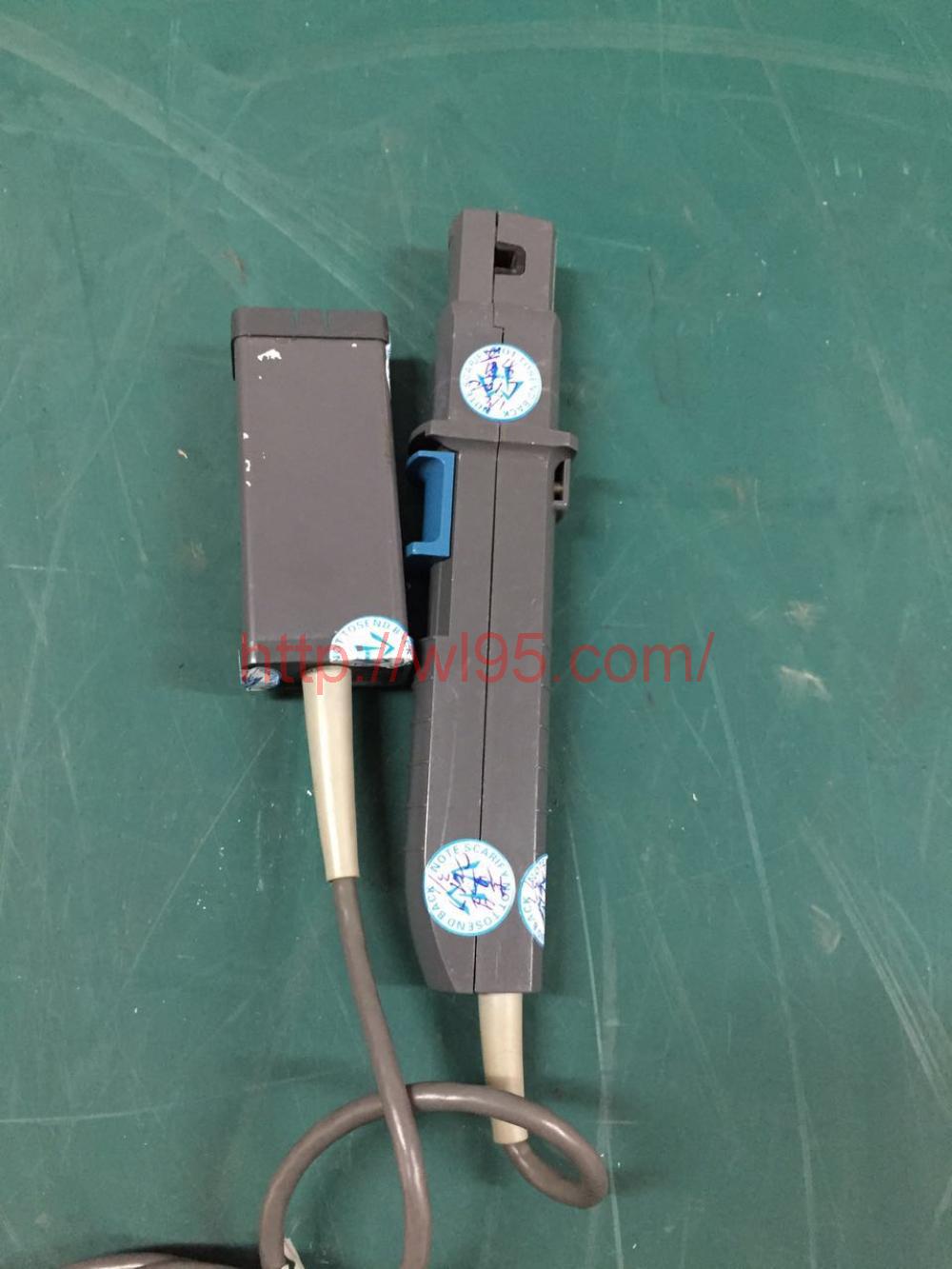

销售力科 AP015 电流探头

浏览次数:264

产品参数

选件 是否计量 发货周期 保修时间 成色
否 3天 90- 9成新
所在地 机身号 状态 资料下载
深圳市 破损
更新日期:2019-11-25
联系电话:0755-86016691

* 产品描述

The Teledyne LeCroy AP015 current probe can measure continuous current of 30Arms and peak pulses of up to 50A for durations up to 10 seconds. This probe also features an overheating protection circuit, which will display an on-screen warning to the user to prevent damage. A probe unlock detection feature is also built in to the AP015 to ensure accurate measurements.

AP015 Specifications/Features

  • Bandwidth (Probe Only): 50MHz
  • Coupling: AC, 1MΩ; DC, 1MΩ; GND
  • Risetime (typical): 7ns
  • Max Continuous Input Current: 30A
  • Max Peak Current (at pw): 50A for <10s
  • Sensitivity: 10mA/div to 50A/div
  • Amplitude Accuracy: ±1% of reading to 15A ±2% of reading to 30A
  • Maximum Circuit Voltage: 300V CAT I, 150V CAT II (Bare Conductor)
  • Interface: all ProBus Oscilloscopes
  • Cable Length: 2m (6.6ft)
  • Maximum Conductor Size: 5mm (0.2in)
