| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 5天 | 12- | 全新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |

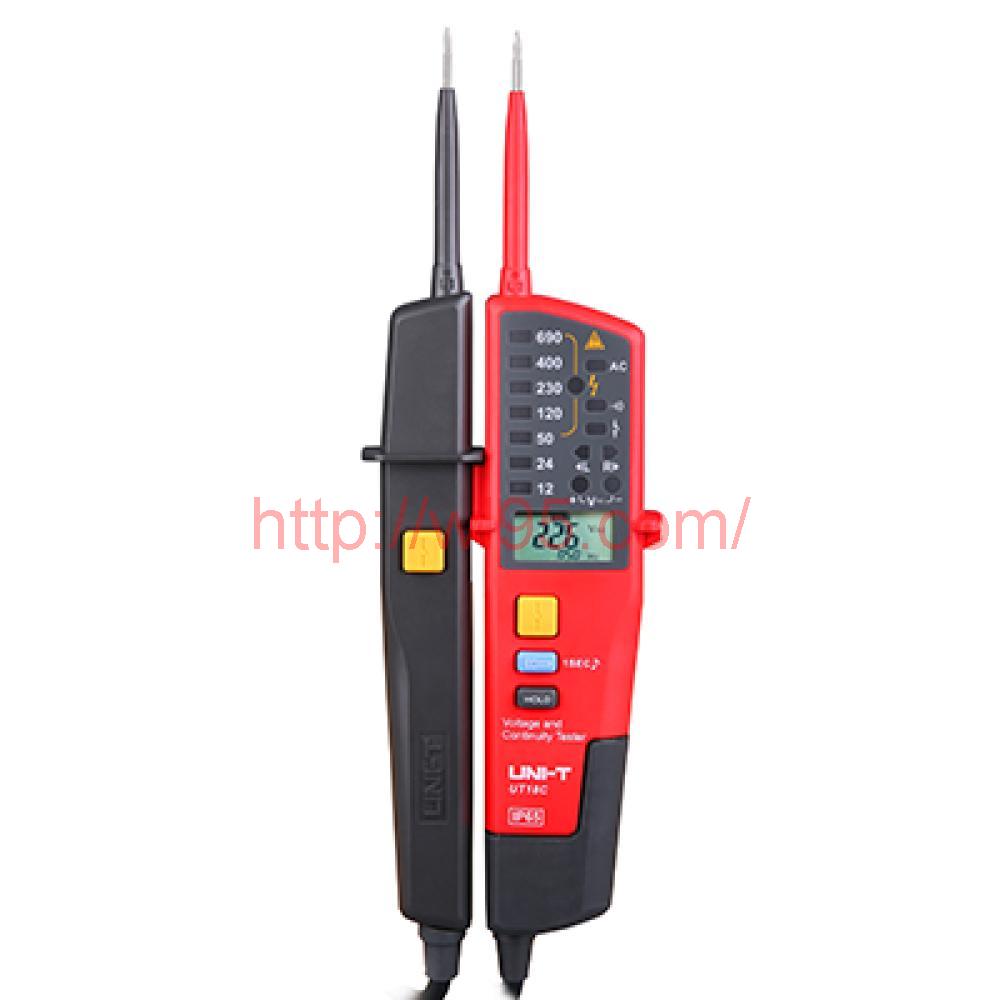

UT18系列测试笔具有测量交直流电压（包含三相交流电）测量，三相交流电的相位指示，通断测试，RCD测试，单表笔测量（可以判定零线或火线），自检，无电池检测等功能。
可适用于：冶炼、电子、制造、石油、国防、电力、化工等行业。亦用来解决电子、工厂自动化、电力分配和机电设备中的复杂问题。
| Specifications | Range | Best Accuracy |
| Model |
|
UT18C |
| LED AC/DC Voltage Indication (V) | 12V | 8V±2V |
| 24V | 18V±2V | |
| 50V | 38V±4V | |
| 120V | 92V±6V | |
| 230V | 174V±8V | |
| 400V | 320V±10V | |
| 690V | 550V±15V | |
| Phase Rotation Test | Operating Voltage: 100V~690V | √ |
| Frequency：50Hz~ 60Hz | ||
| Single Lead(L2)Voltage Detection | Operating Voltage：100V~690V | √ |
| Frequency: 50Hz~ 400Hz | ||
| Continuity Test | Resistance: 0~100KΩ | √ |
| Beeper and LED light Indicator | ||
| RCD Test | Operating Voltage：230V(50Hz～400Hz) | √ |
| Polarity Detection | Positive & Negative | √ |
| Self-inspection | All LED or LCD indicator | √ |
| No Power Test | Operating Voltage: 50VAC/120VDC~690VDC/AC | √ |
| Features | ||
| IP65 | √ | |
| Auto Range | All Range | √ |
| Exceed Voltage | Voltage Range：713V～788V | √ |
| Auto standby | standby current <10uA | √ |
| Silent mode | All Range | √ |
| Work Light | All Range | √ |
| Low Battery Indication | Voltage Range：2.2V～2.4V | √ |
| LCD Display (Voltage+frequency) | 6V~ 690V (40Hz～400Hz) | ±(1.5%+5) |
| General Characteristic | ||
| Power | 1.5V Batteries（R03) × 2 | |
| LCD Size | 31×20mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 280g | |
| Product Size | 272mm×85mm×31 mm | |
| Standard Accessories | Batteries | |
| Standard Individual Packing | Blister, English Manual | |
| Standard Quantity Per Carton | 30PCs | |
| Standard Carton Measurement | 440mm × 295mm × 455mm (0.079 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 17.5Kg | |
