| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 1-4周 | 12月 | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 未知 |
LDC-3900 系列模块化主机具有 4 个通道，以及多达 8 个隔离输出，用于控制多个激光二极管。模块包括最大输出为 200mA 至 4A 的电流源、可进行最高 32W 功率和电压测量的 TE（热电）控制器模块，以及可实现 200mA 至 2A 激光控制和集成式 12W TE 控制的控制器模块。
The LDC-3900 Series Modular Laser Diode Controllers feature 4 channels with up to 8 isolated outputs for controlling multiple laser diodes. Modules include current sources with maximum outputs from 200mA to 4 A, TE (thermoelectric) controller modules with up to 32 W of power and voltage measurement, and controller modules with laser control from 200 mA to 2 A and integrated 12 W TE control.

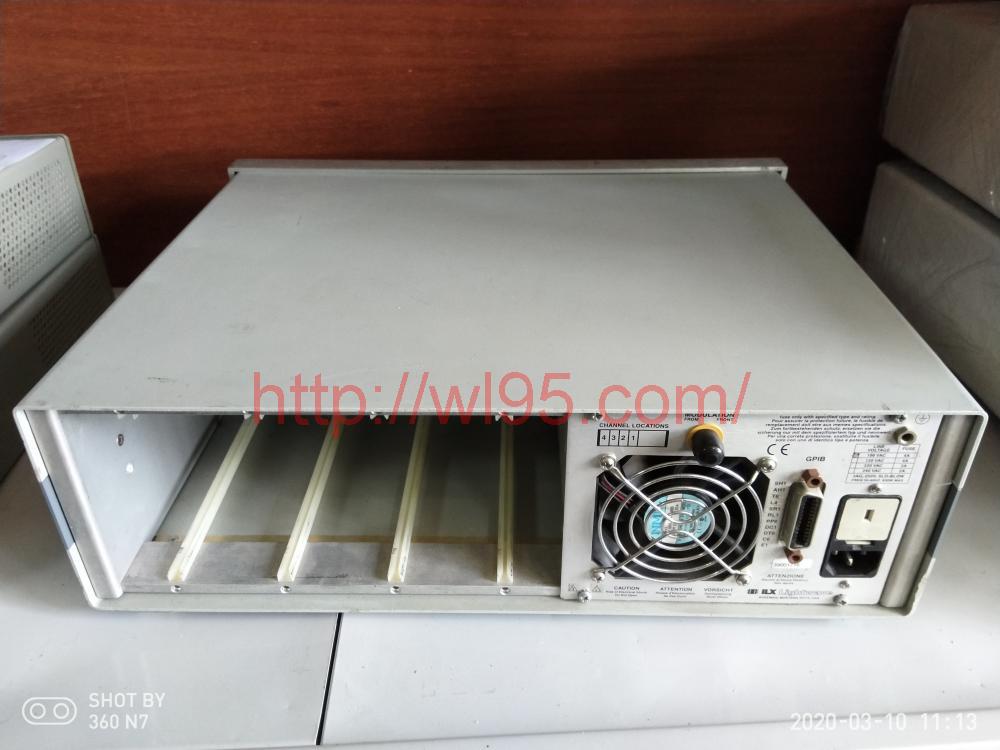

Four current source modules and five combination modules along with two TE controller only modules make the LDC-3900configurable for many laser diode testing and control applications. Each module is electrically floating or fully isolated from all other modules. This allows you to configure your laser diode test system without the worry of potential laser diode damaging ground loops. An independent power supply powers each channel, providing protection and stability for your laser diode. Every module incorporates low noise, high stability performance, and ILX Lightwave’s unmatched laser diode protection topologies including independent current limits and laser diode shorting relays.
The LDC-3900urrent source design offers superior laser protection and low noise, high stability performance. These modules also features a photo-diode measurement circuit for devices with backfacet monitor photodiode and analog modulation up to 500kHz for dithering the laser current for wavelength tuning. Five different current source modules up to 4A can be driven in any one of the following modes:
The LDC-3900 Series TEC modules control temperature of your devices with 32W of power. These TEC modules offer maximum flexibility with a choice of operating modes and temperature sensors covering thermistors, IC, and RTDs. A low noise, biopolar output with TE voltage measurement and an ultra-stable topology achieves stabilities better than 0.005°C. A smart integrator control loop, programmable from the front panel or through GPIB, delivers fast settling times.
Controller modules combine a current source with a temperature controller in one module. Laser current from 200mA to 2A is available with an integrated 12W temperature controller for current and temperature control of laser diodes. All of the features found in the current only and temperature control modules are incorporated into these flexible modules and include multiple modes of operation, external modulation, a choice of temperature sensors, and all protection features.

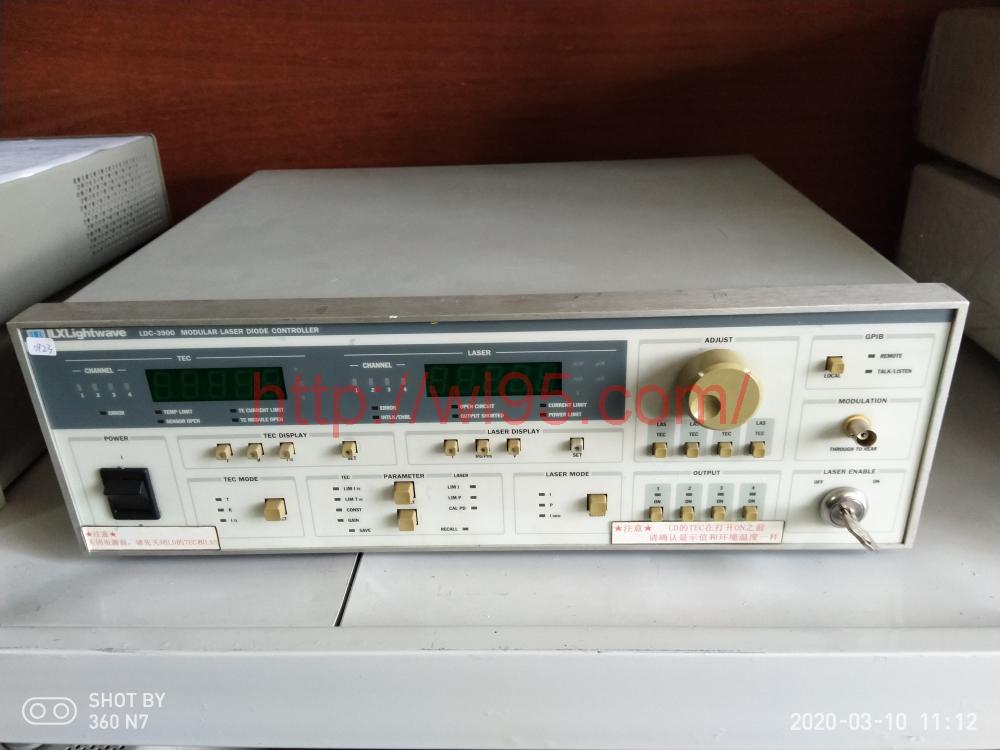

Divided into two sections, TEC and LASER, the front panel offers quick, easy operation and information display without confusing multi-layer menus. Each channel is directly addressable from the front panel “adjust” section and indicated through discrete LEDs next to the respective display. Laser and TEC parameters and modes are easily selected or adjusted through discrete push buttons.
For automated control, the IEEE/GPIB interface allows programming and readout from most computers. All instrument and module functions are accessible through the interface allowing you to simultaneously control multiple laser diodes from the same address. For virtual instrument programming, LabVIEW® drivers are available.
