销售ILX Lightwave LDT-5910B 温度控制器

浏览次数:185

产品参数

选件 是否计量 发货周期 保修时间 成色
否 1-4天 12- 8成新
所在地 机身号 状态 资料下载
深圳市 未知
更新日期:2022-10-22
联系电话:0755-86016691

* 产品描述

LDT-5910B的主要特性:

◆ 拥有220MIPS的运算性能;
◆ 拥有2D图形协处理器,提升显示性能;
◆ 更低的内核电压,支持低电压存储器;
◆ 支持LINUX2.4、LINUX2.6、WINCE5.0等主流嵌入式操作系统;
◆ 最大支持2048*2048分辨率TFT-LCD,同是扩展VGA输出;
◆ 具有更多可用的I/O口;
◆ 内置CAN总线控制器;
◆ 支持大容量工业级NandFlash;
◆ 具有工业级温度范围;
◆ 支持SD卡/CF卡储存容量扩展;


应用领域:

本开发系统本身具有开放、集成度高、尺寸小、可扩展性强、低功耗等特点。已经广泛应用于纺织行业、数控行业、汽车电子、工业触摸屏控制系统、机器人视觉、媒体处理无线应用、数字家电、车载设备、通信设备、网络终端等场合。

详细信息

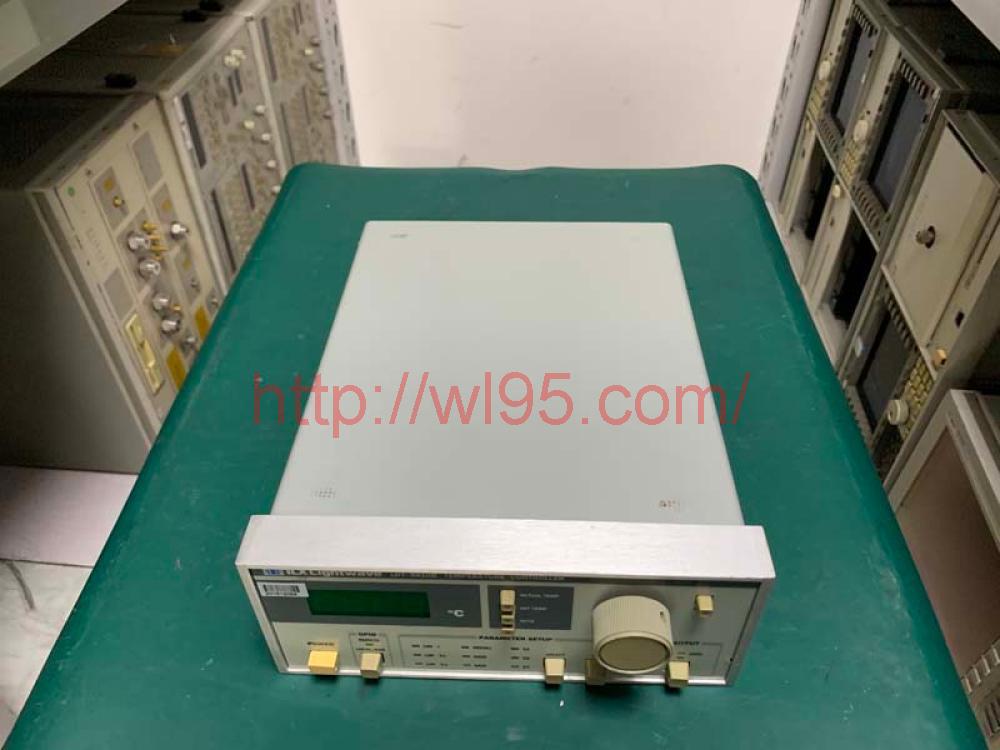

Newport / ILX Lightwave LDT-5910B Temperature Controller

Features

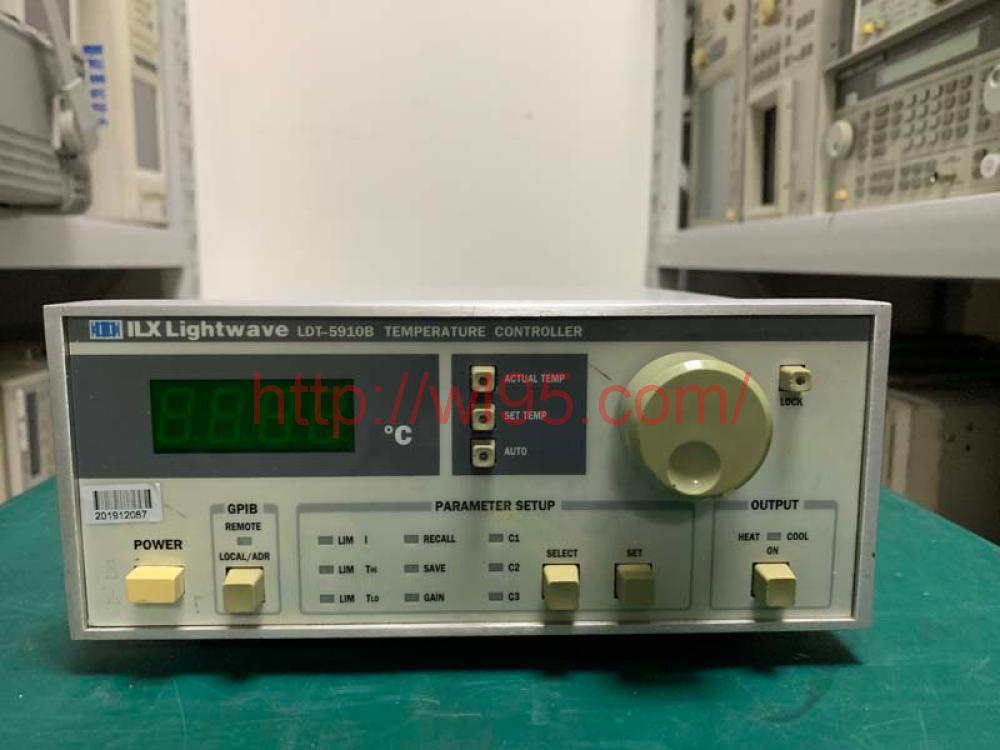

  • Intuitive Front Panel Layout
  • Large and Easy-to-Read Green LED Display
  • Display Resolution of 0.1 Degree Centigrade
  • Output Current Limit Control to Safely Operate all TE Coolers
  • Configurable for a Variety of Thermal Sensors
  • Output will Supply 4 amps, 16 Watts

Description

The LDT-5910B is a microprocessor-based, precision thermoelectric temperature controllerdesigned for temperature control of laser diodes, detectors and other temperature sensitivedevices. The LDT-5910B can be used for laser diode testing, laser diode frequencystabilization, IR detector cooling, and to determine the characteristics of electronic devices.

The LDT-5910B combines high analog stability with the versatility of a microprocessor-based instrument. The internal microprocessor controls the operation of the LDT-5910B and performs the non-linear conversion of thermistor resistance to temperature based on three user defined constants. You can configure the LDT-5910B to operate with a wide variety of thermis tor temperature sensors and TE modules, as well as AD590 series and LM335 series temperature sensors. The model 1233 GPIB/IEEE-488 interface allows remote programming and completely automated control of the LDT-5910B.
