皓辰团队专业维修，品质保障！！！

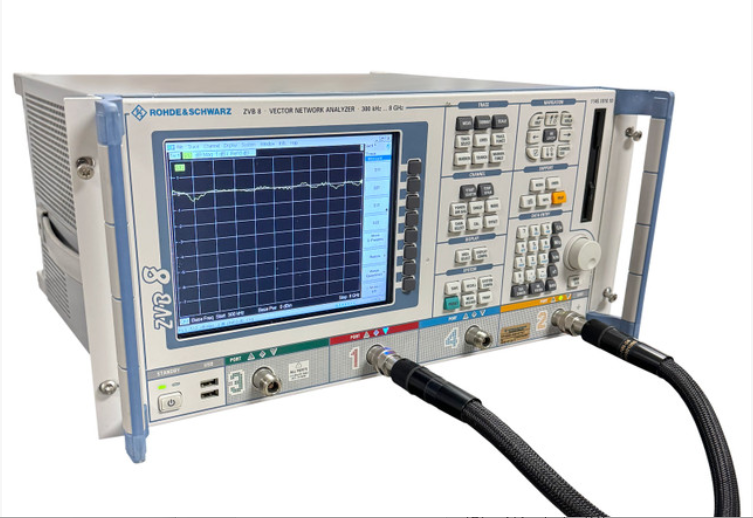

专业维修 ROHDE&SCHWARZ ZVB8 矢量网络分析仪，其常见的故障及原因分析如下
1、无法开机或频繁重启
可能原因：
电源模块故障：输入电压异常（如电网波动）或内部电源板电容老化、保险丝熔断。
主控制板或 CPU 损坏：长期使用导致焊点脱落或芯片过热损坏（如 CPU 板组件故障）。
硬盘或系统文件损坏：硬盘物理损坏或系统文件丢失导致启动失败。
2、射频端口信号异常（如无输出、测试曲线波动）
可能原因：
端口物理损坏：N 型连接器变形、内部针脚断裂或氧化。
射频模块故障：耦合器（如 A21 模块）或电子开关（如 A24 模块）老化导致信号链路中断。
校准数据异常：长期未校准或校准件性能退化。
3、显示异常（黑屏、花屏、白屏）
可能原因：
显示屏排线松动或老化：长期使用导致排线接触不良。
显示控制板故障：驱动芯片虚焊或损坏（如 GPU 模块异常）。
系统软件崩溃：固件版本不兼容或硬盘文件损坏。
4、校准失败或测试结果异常
可能原因：
校准步骤错误：未按顺序连接标准件（如开路、短路、负载）。
校准件性能退化：匹配负载回波损耗下降或直通线损耗超标。
测试端口或电缆连接不良：射频电缆未拧紧或内部断路。
通过了解设备的常见故障，您可以更好地维护和使用它，确保其长期稳定运行。若无法解决，欢迎联系晧辰！我们的维修团队拥有丰富的实战经验和专业的维修流程，可为您提供快速、可靠、优质的维修服务！
Haichen team provides professional maintenance and guarantees quality!!!
Professional maintenance for ROHDE&SCHWARZ ZVB8 vector network analyzer. The common faults and their causes are as follows
1. Unable to turn on the device or frequent restarts
Possible reasons:
Power module failure: Abnormal input voltage (such as grid fluctuations) or aging of internal power board capacitors or fuse blowout.
Main control board or CPU damage: Long-term use causes the solder joints to fall off or the chips to overheat and get damaged (such as component failure of the CPU board).
Hard disk or system file damage: Physical damage to the hard disk or loss of system files causes the system to fail to boot.
2. Abnormal signal at the RF port (such as no output or fluctuation in the test curve)
Possible reasons:
Port physical damage: N-type connector deformed, internal pins broken or oxidized.
RF module failure: The aging of the coupler (such as module A21) or the electronic switch (such as module A24) causes the signal link to be interrupted.
Calibration data anomaly: Long-term non-calibration or degradation of calibration tool performance.
3. Display abnormalities (black screen, flickering screen, white screen)
Possible reasons:
Display screen cable loosening or aging: Long-term use has caused poor contact of the cable.
Display control board failure: The driver chip is short-circuited or damaged (such as abnormality in the GPU module).
System software crashed: Incompatible firmware version or damaged hard disk files.
4. Calibration failure or abnormal test results
Possible reasons:
Calibration procedure error: Standard components (such as open circuit, short circuit, load) were not connected in the correct sequence.
Calibration component performance degradation: The matching load return loss decreases or the direct connection line loss exceeds the standard.
Test port or cable connection is poor: The RF cable is not tightened or there is a short circuit inside.
By understanding the common faults of the equipment, you can better maintain and use it, ensuring its long-term stable operation. If the problem cannot be solved, please feel free to contact Haochen! Our maintenance team has rich practical experience and professional maintenance procedures, and can provide you with fast, reliable and high-quality maintenance services!
