皓辰团队专业维修，品质保障！！！

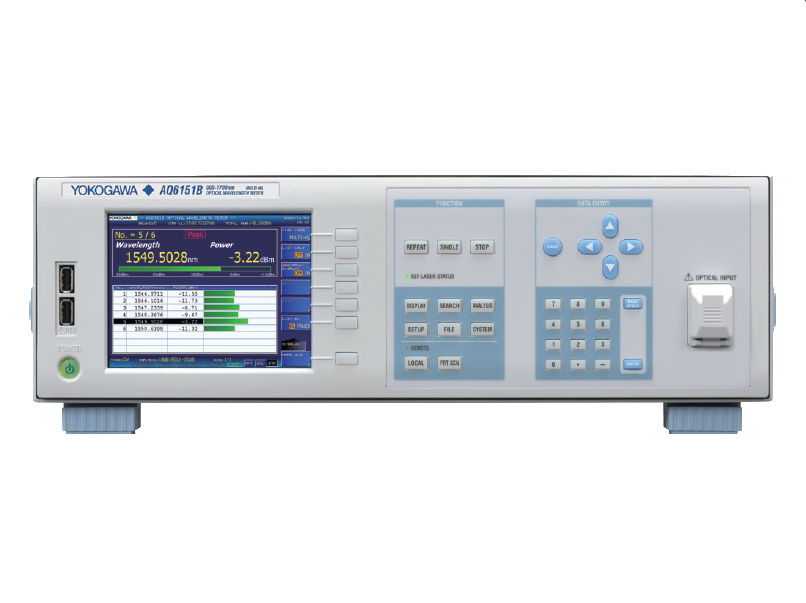

专业维修 YOKOGAWA AQ6151B 光波长计，其常见的故障及原因分析如下
1、设备无法开机或频繁断电
可能原因：
电源适配器故障：输入电压超出额定范围（AC 100-240V ±10%），或适配器输出功率不足（需 12V/2A）。
内部电源模块损坏：长期使用后电解电容老化，导致输出电压波动。
电源线接触不良：插头氧化或线缆内部断路。
2、电池续航骤降（仅便携式型号）
可能原因：锂电池长期未使用或过充导致容量衰减。
3、长或功率测量偏差超出规格
可能原因：
参考光源老化：内置 He-Ne 激光器使用寿命约 30,000 小时，老化后波长稳定性下降（温度系数 >0.07 nm/°C）。
校准过期：未按周期（建议每 1 年）进行 NIST 溯源校准。
光纤端面污染：光信号耦合效率下降导致功率测量误差。
4、多波长测量漏检或误判
可能原因：
信号分离不足：相邻波长间隔 <5 GHz 时，FFT 算法可能误判。
增益设置不当：输入光功率过低（<-40 dBm）导致 AGC 动态范围不足。
通过了解设备的常见故障，您可以更好地维护和使用它，确保其长期稳定运行。若无法解决，欢迎联系晧辰！我们的维修团队拥有丰富的实战经验和专业的维修流程，可为您提供快速、可靠、优质的维修服务！
Haichen team provides professional maintenance and guarantees quality!!!
Professional maintenance for YOKOGAWA AQ6151B optical wavelength meter. The common faults and their causes are as follows
The equipment fails to start up or experiences frequent power outages.
Possible reasons:
Power adapter failure: Input voltage exceeds the rated range (AC 100-240V ±10%), or the adapter's output power is insufficient (requires 12V/2A).
Internal power module failure: After long-term use, the electrolytic capacitors have aged, causing fluctuations in the output voltage.
Power cord connection problem: The plug is oxidized or there is a short circuit inside the cable.
2. Battery life significantly decreases (applies only to portable models)
Possible cause: The lithium battery has been unused for a long time or has been overcharged, resulting in capacity reduction.
3. Longitudinal or power measurement deviation exceeds the specification
Possible reasons:
Reference light source aging: The built-in He-Ne laser has a lifespan of approximately 30,000 hours. After aging, the wavelength stability decreases (temperature coefficient > 0.07 nm/°C).
Calibration has expired: The NIST traceability calibration has not been conducted at the recommended interval (suggested every 1 year).
Fiber end face contamination: The decline in optical signal coupling efficiency leads to measurement errors in power.
4. Missed or incorrect detection in multi-wavelength measurement
Possible reasons:
Insufficient signal separation: When the adjacent wavelength interval is less than 5 GHz, the FFT algorithm may make incorrect judgments.
Improper gain setting: The input optical power is too low (<-40 dBm), resulting in insufficient AGC dynamic range.
By understanding the common faults of the equipment, you can better maintain and use it, ensuring its long-term stable operation. If the problem cannot be solved, please feel free to contact Haochen! Our maintenance team has rich practical experience and professional maintenance procedures, and can provide you with fast, reliable and high-quality maintenance services!
