晧辰团队专业维修，品质保障!!!

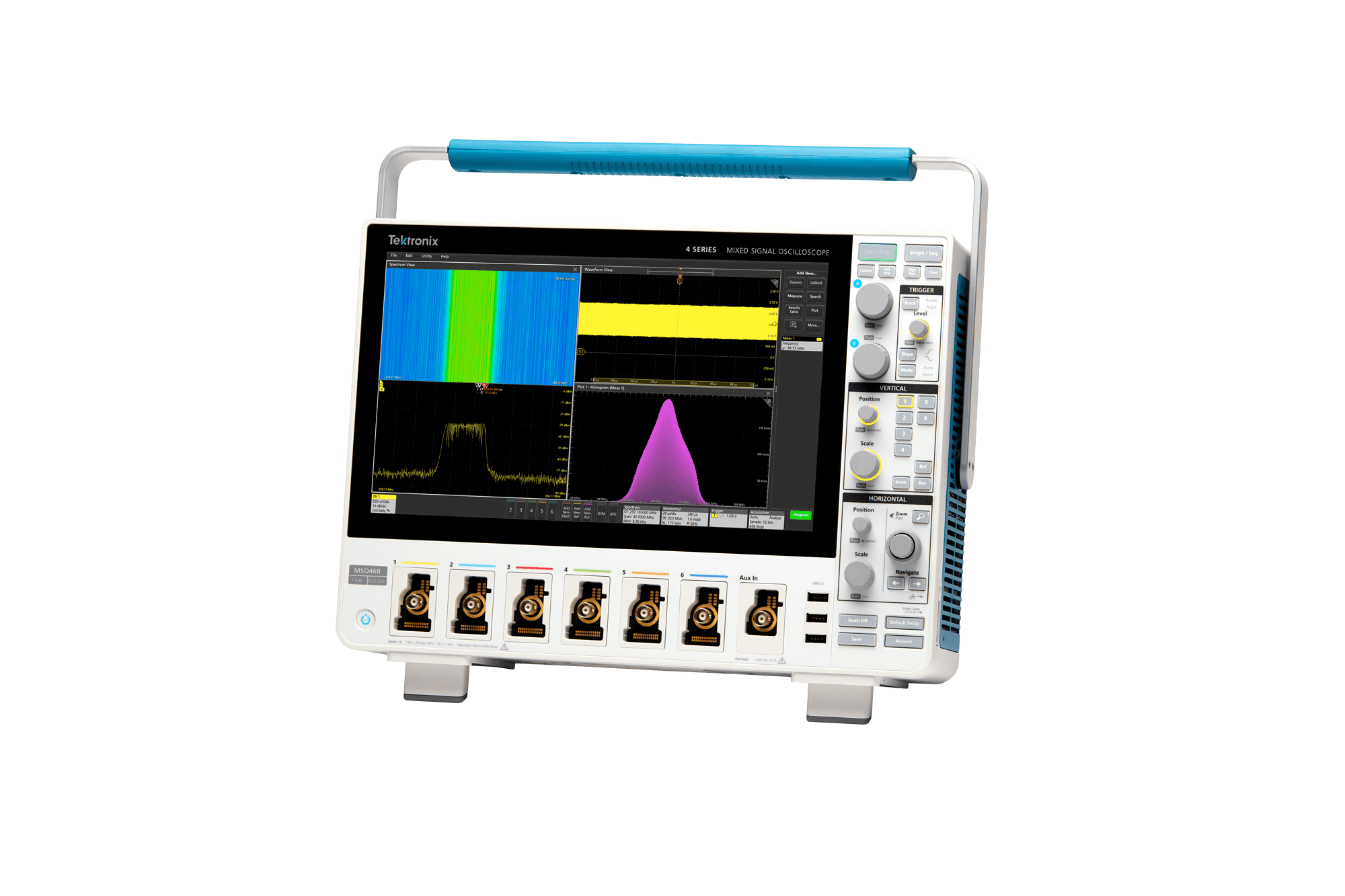

专业维修泰克 MSO46B 混合信号示波器，其常见的故障及原因分析如下
故障点：信号显示异常
原因分析：
信号源问题：信号源本身存在故障，如输出幅度过低、频率不稳定等，导致示波器接收到的信号质量不佳。
连接问题：信号线与示波器或信号源之间的连接不良，如接头松动、接触不良等，导致信号传输过程中产生衰减或干扰。
示波器设置不当：示波器的耦合模式、垂直刻度、触发方式等设置不合理，导致信号无法准确捕捉或显示。
故障点：幅值误差
原因分析：
示波器带宽不足或采样率较低：当被测信号的频率较高时，示波器的带宽和采样率可能无法满足要求，导致幅值测量结果偏离真实值。
校准状态不佳：示波器长时间未进行校准或校准不当，由于环境温度变化、组件老化等原因导致校准状态发生变化，从而产生幅值误差。
输入电路问题：示波器的输入电路设计或质量不佳，如阻抗匹配不合适、幅频响应不平坦等，都可能导致幅值测量的误差。
通过了解设备的常见故障，您可以更好地维护和使用它，确保其长期稳定运行。若无法解决，欢迎联系晧辰！我们的维修团队拥有丰富的实战经验和专业的维修流程，可为您提供快速、可靠、优质的维修服务
Hao Chen team professional maintenance, quality assurance!!
Professional maintenance of Tektronix MSO46B mixed signal oscilloscope, its common failures and causes are analyzed as follows
Fault: The signal display is abnormal
Reason analysis:
Signal source problem: The signal source itself has faults, such as the output amplitude is too low, the frequency is unstable, etc., resulting in poor signal quality received by the oscilloscope.
Connection problem: The connection between the signal line and the oscilloscope or signal source is poor, such as loose joints, poor contact, etc., resulting in attenuation or interference during signal transmission.
Improper oscilloscope setting: the coupling mode, vertical scale, trigger mode and other Settings of the oscilloscope are unreasonable, resulting in the failure to accurately capture or display the signal.
Fault point: amplitude error
Reason analysis:
Insufficient oscilloscope bandwidth or low sampling rate: When the frequency of the measured signal is high, the bandwidth and sampling rate of the oscilloscope may not meet the requirements, resulting in amplitude measurement results deviating from the true value.
Poor calibration status: oscilloscope has not been calibrated for a long time or improper calibration, due to changes in ambient temperature, component aging and other reasons, resulting in changes in calibration status, resulting in amplitude errors.
Input circuit problems: The design or quality of the input circuit of the oscilloscope is poor, such as inappropriate impedance matching and uneven amplitude and frequency response, which may lead to errors in amplitude measurement.
By understanding the common faults of the equipment, you can better maintain and use it to ensure its long-term stable operation. If you can not solve, welcome to contact Hao Chen! Our maintenance team has a wealth of practical experience and professional maintenance process, can provide you with fast, reliable, quality maintenance service
