晧辰团队专业维修，品质保障!!!

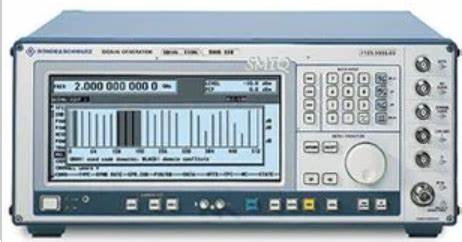

专业维修罗德与施瓦茨 SMIQ06B 信号发生器，其常见的故障及原因分析如下
故障点：无法正常开机
原因分析：
电源模块故障：可能是电源板损坏、电源线连接不良或电源插座无电，导致设备无法接收正常供电。
主板问题：主板上的开机电路或相关元件损坏，无法触发开机信号。
显示模块故障：显示面板组件损坏或显示背光不亮，导致无法正常显示开机界面。
故障点：输出信号异常
原因分析：
输出端故障：阻抗异常、无信号输出或信号幅度异常，可能是输出端口损坏、连接线松动或内部电路故障。
调制器问题：I/Q调制器性能下降或损坏，导致生成的信号质量不佳。
设置错误：用户设置的参数不正确，如频率、幅度、调制方式等，导致输出信号与预期不符。
故障点：显示故障
原因分析：
显示屏损坏：显示屏本身出现故障，如黑屏、花屏等。
显示驱动电路问题：与显示屏连接的驱动电路出现故障，导致显示异常。
通过了解设备的常见故障，您可以更好地维护和使用它，确保其长期稳定运行。若无法解决，欢迎联系晧辰！我们的维修团队拥有丰富的实战经验和专业的维修流程，可为您提供快速、可靠、优质的维修服务
Hao Chen team professional maintenance, quality assurance!!
Professional maintenance of Rohde & Schwarz SMIQ06B signal generator, its common failures and causes are analyzed as follows
Fault point: The machine cannot be turned on normally
Reason analysis:
Power module fault: The power module is damaged, the power cable is improperly connected, or the power socket is disconnected. As a result, the device cannot receive power supply.
Motherboard problem: The power-on circuit or related components on the motherboard are damaged and cannot trigger the power-on signal.
Display module fault: The display panel component is damaged or the display backlight is off. As a result, the startup screen cannot be displayed.
Fault: The output signal is abnormal
Reason analysis:
Output fault: Abnormal impedance, no signal output, or abnormal signal amplitude, which may be a damaged output port, loose connection line, or internal circuit fault.
Modulator problems: I/Q modulator performance degrades or is damaged, resulting in poor quality generated signals.
Setting error: The parameters set by the user are incorrect, such as frequency, amplitude, modulation mode, etc., resulting in the output signal is not consistent with the expected.
Fault point: Indicates the fault
Reason analysis:
Display damage: The display itself is faulty, such as black screen, flower screen, etc.
Display driver circuit problem: The driver circuit connected to the display screen is faulty, resulting in abnormal display.
By understanding the common faults of the equipment, you can better maintain and use it to ensure its long-term stable operation. If you can not solve, welcome to contact Hao Chen! Our maintenance team has a wealth of practical experience and professional maintenance process, can provide you with fast, reliable, quality maintenance service
