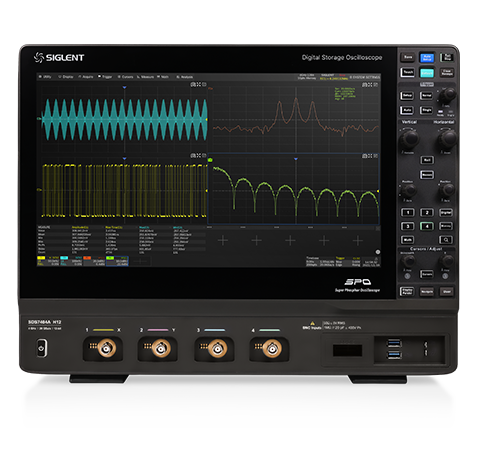

专业维修鼎阳科技 SDS7000A 数字存储示波器，其常见的故障及原因分析如下
故障点：无扫描线
原因分析：
电源电路、示波管电路、触发扫描电路或X轴放大器故障：这些部分的工作异常可能导致示波器无法正常产生扫描电压，从而无法形成扫描线。
增辉通道（Z通道）故障：若示波管栅极电位与阴极电位之间的差值不正常，或增辉信号无法正确送达示波管栅极，也可能导致无扫描线。这通常与高压电源或示波管灯丝电路的故障有关。
故障点：扫描线逐步变暗
原因分析：
高压电源故障：高压电源的滤波电容性能变劣或高压引线绝缘层老化可能导致高压漏电，从而影响示波管的聚焦和亮度稳定性。
示波器管灯丝电路故障：若变压器绕组对地绝缘性能变差，会形成负高压漏电，使阴极负压绝对值减小，栅、阴之间电位差绝对值增大，从而导致扫描线变暗。
通过了解设备的常见故障，您可以更好地维护和使用它，确保其长期稳定运行。若无法解决，欢迎联系晧辰！我们的维修团队拥有丰富的实战经验和专业的维修流程，可为您提供快速、可靠、优质的维修服务
Hao Chen team professional maintenance, quality assurance!!
Professional maintenance of Dingyang Technology SDS7000A digital storage oscilloscope, its common failures and reasons are analyzed as follows
Fault point: No scan line
Reason analysis:
Failure of the power supply circuit, oscilloscope tube circuit, trigger scan circuit, or X-axis amplifier: Abnormal operation of these parts may cause the oscilloscope to fail to produce scan voltage properly, and thus fail to form scan lines.
Enhancement channel (Z channel) failure: If the difference between the grid potential and the cathode potential of the oscilloscope tube is abnormal, or the enhancement signal does not reach the oscilloscope tube grid correctly, it may also result in no scan line. This is usually related to the failure of the high-voltage power supply or the oscilloscope tube filament circuit.
Fault point: The scanning line gradually darkens
Reason analysis:
High voltage power supply failure: The filter capacitor performance of the high voltage power supply deteriorates or the insulation layer of the high voltage lead deteriorates, which may lead to high voltage leakage, which affects the focusing and brightness stability of the oscilloscope tube.
Oscilloscope tube filament circuit failure: If the transformer winding to the ground insulation performance is poor, will form a negative high voltage leakage, so that the absolute value of the negative pressure of the cathode decreases, the absolute value of the potential difference between the grid and the cathode increases, resulting in darkening of the scan line.
By understanding the common faults of the equipment, you can better maintain and use it to ensure its long-term stable operation. If you can not solve, welcome to contact Hao Chen! Our maintenance team has a wealth of practical experience and professional maintenance process, can provide you with fast, reliable, quality maintenance service
