皓辰团队专业维修，品质保障!!!

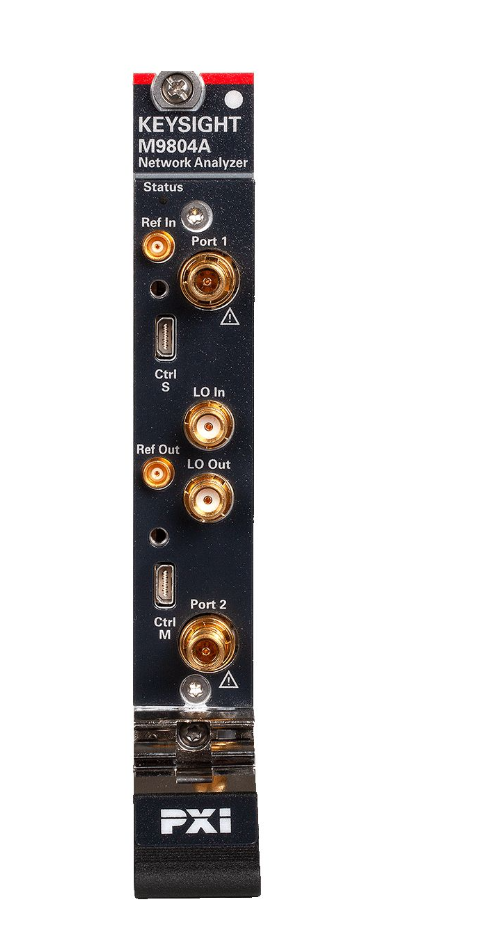

专业维修安捷伦 M9804A 矢量网络分析仪，其常见的故障及原因分析如下
故障点：开机自检失败
原因分析：可能是核心部件（如CPU、ROM、RAM、I/O接口等）故障，导致自检过程中无法正确检测或初始化这些部件。
故障点：测量反射正常，但测量传输信号低且曲线不平
原因分析：可能是端口2的定向耦合器、B通道接收组件（如采样器、第二混频器）、ADC电路的多路开关等出现故障。特别是采样器损坏，会导致信号传输异常。
故障点：工作一段时间后报错，输出功率电平不可调
原因分析：可能是自动电平控制电路或功率模块故障。这些故障可能由元器件性能下降、虚焊或温度过高引起。
故障点：屏幕显示锁相错误
原因分析：锁相电路涉及的电路较多，可能包括信号源、信号分离部分、R通道采样部分等。此故障可能是由硬件故障（如R通道采样器损坏）或电缆连接不良导致。
Hao Chen team professional maintenance, quality assurance!!
Professional maintenance of Agilent M9804A vector network analyzer, its common failures and causes are analyzed as follows
Fault point: power-on self-test failed
Cause analysis: Core components (such as CPU, ROM, RAM, and I/O interfaces) may be faulty. As a result, these components cannot be correctly detected or initialized during the self-check.
Fault point: The measurement reflection is normal, but the measurement transmission signal is low and the curve is uneven
Cause analysis: It may be that the directional coupler of port 2, the B-channel receiving component (such as the sampler, the second mixer), the multiway switch of the ADC circuit, etc., is faulty. In particular, the damage of the sampler will lead to abnormal signal transmission.
Fault point: An error is reported after working for a period of time, and the output power level is not adjustable
Cause analysis: It may be the fault of automatic level control circuit or power module. These failures can be caused by degraded component performance, faulty welding, or excessive temperature.
Fault point: The screen displays a phase lock error
Reason analysis: Phase-locked circuit involves more circuits, which may include signal source, signal separation part, R channel sampling part, etc. This fault can be caused by a hardware failure (such as a damaged R-channel sampler) or a poor cable connection.
By understanding the common faults of the equipment, you can better maintain and use it to ensure its long-term stable operation. If you can not solve, welcome to contact Hao Chen! Our maintenance team has a wealth of practical experience and professional maintenance process, can provide you with fast, reliable, quality maintenance service!
