皓辰团队专业维修，品质保障!!!

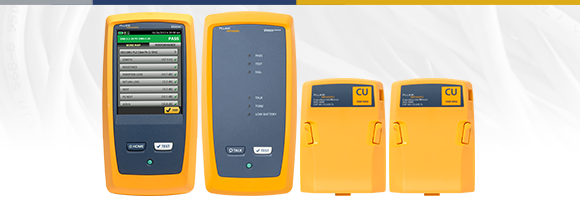

专业维修福禄克 DSX-5000 电缆分析仪，其常见的故障及原因分析如下
故障点：无法开机或启动异常
原因分析：电源故障、主板问题或内部连接线松动。
故障点：测试结果不准确
原因分析：校准问题、测试参数设置不当、连接器或电缆损坏、测试仪设置错误（如NVP设置不正确）或测试仪与被测电缆不兼容。
故障点：Wiremap测试结果异常（如开路、短路、反向线对、交叉线对、分裂线对）
原因分析：导线连接问题（如未正确连接、连接点断开）、电缆损坏、连接器故障或测试仪设置错误。
故障点：回波损耗（RL）测试不合格
原因分析：阻抗不连续（如电缆与水晶头连接不良、电缆制造瑕疵、电缆安装损伤）、使用了劣质电缆（如铜包铝或铜包铁仿冒全铜双绞线）或测试仪的HDTDR功能异常。
通过了解设备的常见故障，您可以更好地维护和使用它，确保其长期稳定运行。若无法解决，欢迎联系晧辰！我们的维修团队拥有丰富的实战经验和专业的维修流程，可为您提供快速、可靠、优质的维修服务！
Hao Chen team professional maintenance, quality assurance!!
Professional maintenance of Fluke DSX-5000 cable analyzer, its common faults and causes are analyzed as follows
Fault point: The device cannot be started or is started abnormally
Cause: The power supply is faulty, the mainboard is faulty, or the internal cable is loose.
Fault point: The test result is inaccurate
Cause analysis: Calibration problems, improper setting of test parameters, connector or cable damage, incorrect tester setting (such as incorrect NVP setting), or incompatible tester with cable under test.
Fault: The Wiremap test result is abnormal (such as open circuit, short circuit, reverse wire pairs, crossed wire pairs, and split wire pairs).
Cause analysis: Wire connection problems (such as incorrect connection, disconnected connection point), cable damage, connector failure, or incorrect tester Settings.
Point of failure: Return loss (RL) test failed
Cause analysis: impedance discontinuity (such as poor connection between the cable and the RJ45 connector, cable manufacturing defects, cable installation damage), the use of inferior cables (such as copper-clad aluminum or copper-clad iron imitation of all copper twisted pair), or the HDTDR function of the tester is abnormal.
By understanding the common faults of the equipment, you can better maintain and use it to ensure its long-term stable operation. If you can not solve, welcome to contact Hao Chen! Our maintenance team has a wealth of practical experience and professional maintenance process, can provide you with fast, reliable, quality maintenance service!
