皓辰团队专业维修，品质保障!!!

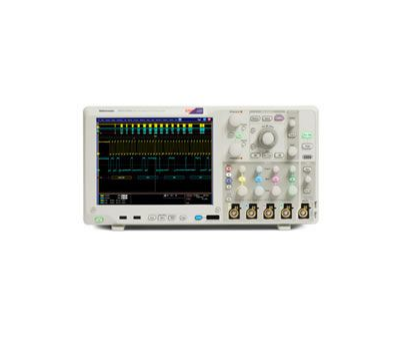

专业维修泰克 MSO5204B 混合信号示波器，其常见的故障及原因分析如下
故障点：开机异常，无法进入示波器界面
原因分析：仪器控制板损坏，导致开机流程无法顺利完成。
故障点：花屏
原因分析：仪器控制板逻辑单元损坏，导致屏幕显示异常；或者屏幕下方按键失灵，按键控制板损坏。
故障点：测量软件无法启动
原因分析：仪器系统损坏，固件丢失，导致软件无法正常加载和运行。
故障点：信号输出或采集异常
原因分析：可能是输入通道故障、放大器电路问题、ADC转换异常或信号线连接不良等。
故障点：通信故障
原因分析：通信接口损坏、接口连接线问题或系统软件通信模块异常，导致示波器无法与其他设备或系统进行正常通信。
通过了解设备的常见故障，您可以更好地维护和使用它，确保其长期稳定运行。若无法解决，欢迎联系晧辰！我们的维修团队拥有丰富的实战经验和专业的维修流程，可为您提供快速、可靠、优质的维修服务！
Hao Chen team professional maintenance, quality assurance!!
Professional maintenance of Tektronix MSO5204B mixed signal oscilloscope, its common failures and causes are analyzed as follows
Fault point: Abnormal startup, unable to enter the oscilloscope interface
Cause analysis: The instrument control board is damaged, resulting in the startup process can not be successfully completed.
Fault point: flower screen
Cause analysis: The logic unit of the instrument control board is damaged, resulting in abnormal screen display; Or the key at the bottom of the screen fails, and the key control board is damaged.
Fault point: Measurement software cannot be started
Cause analysis: The instrument system is damaged and the firmware is lost, resulting in the software cannot be loaded and run normally.
Fault: Signal output or collection is abnormal
Cause analysis: It may be input channel failure, amplifier circuit problems, ADC conversion abnormalities or poor signal line connection.
Fault: The communication is faulty
Cause analysis: The communication interface is damaged, the interface connection line is faulty, or the system software communication module is abnormal, resulting in the oscilloscope cannot communicate with other devices or systems normally.
By understanding the common faults of the equipment, you can better maintain and use it to ensure its long-term stable operation. If you can not solve, welcome to contact Hao Chen! Our maintenance team has a wealth of practical experience and professional maintenance process, can provide you with fast, reliable, quality maintenance service!
