皓辰团队专业维修，品质保障!!!

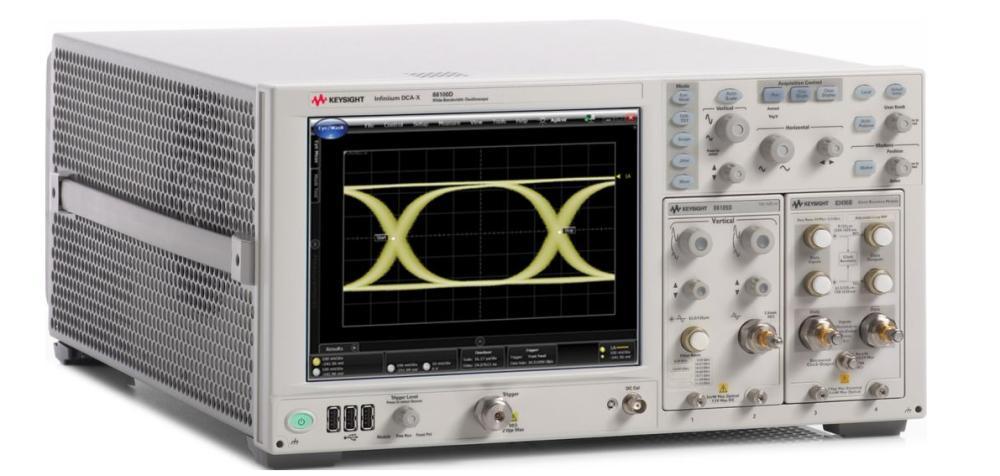

专业维修是德科技 86100D Infiniium DCA-X 宽带宽示波器主机，其常见的故障及原因分析如下
故障点：波形显示异常（如无波形、波形失真）
原因分析：信号输入通道故障（如探头连接不良、衰减器设置不当）、显示电路故障，或示波器设置不当（如时间基准、垂直灵敏度设置错误）。
故障点：测量精度不准确
原因分析：示波器校准状态不准确，或探头、连接线等附件引入误差。
故障点：通道故障（如某个通道无法测量）
原因分析：该通道的信号处理电路（如放大器、滤波器）故障，或通道选择开关损坏。
故障点：触发功能异常
原因分析：触发电路故障，或触发设置不当（如触发电平、触发源设置错误）。
Hao Chen team professional maintenance, quality assurance!!
Professional maintenance of Keysite Technology 86100D Infiniium DCA-X broadband wide oscilloscope host, its common failures and causes are analyzed as follows
Fault point: Abnormal waveform display (such as no waveform, waveform distortion)
Cause analysis: Signal input channel failure (such as poor probe connection, improper attenuator setting), display circuit failure, or oscilloscope setting improper (such as time reference, vertical sensitivity setting wrong).
Fault point: Measurement accuracy is not accurate
Cause analysis: oscilloscope calibration state is not accurate, or probe, connection line and other accessories introduced error.
Point of failure: Channel failure (if a channel cannot be measured)
Cause analysis: The signal processing circuit (such as amplifier, filter) of the channel is faulty, or the channel selection switch is damaged.
Fault point: The trigger function is abnormal
Cause analysis: The trigger circuit is faulty, or the trigger setting is improper (such as the trigger level and trigger source setting is wrong).
By understanding the common faults of the equipment, you can better maintain and use it to ensure its long-term stable operation. If you can not solve, welcome to contact Hao Chen! Our maintenance team has a wealth of practical experience and professional maintenance process, can provide you with fast, reliable, quality maintenance service!
