皓辰团队专业维修，品质保障!!!

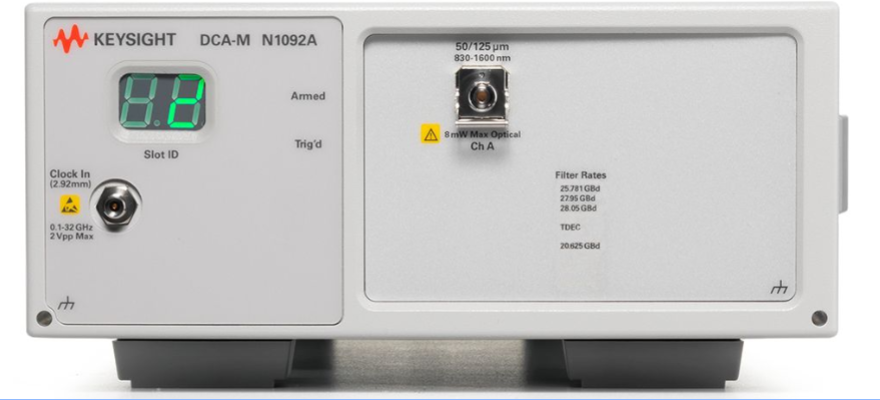

专业维修安捷伦 N1092A 示波器，其常见的故障及原因分析如下
故障点：无法开机
原因分析：电源模块故障、电源线未接好或电源开关损坏。
故障点：波形显示异常（如无波形、波形失真）
原因分析：信号输入通道故障（如探头连接不良、探头损坏）、显示电路故障或示波器设置不当。
故障点：眼图测试不准确
原因分析：偏置电流设置不当、上升沿速度过快、过阻尼、阻抗不连续、反射、NRZ数据连续性问题、对称性不佳、振荡和过冲、终端端接阻抗不匹配、发射端信号预处理不当、接收器均衡处理不当或通道串扰。
Hao Chen team professional maintenance, quality assurance!!
Professional maintenance of Agilent N1092A oscilloscope, its common failures and causes are analyzed as follows
Fault point: Can not be turned on
Cause: The power module is faulty, the power cable is improperly connected, or the power switch is damaged.
Fault point: Abnormal waveform display (such as no waveform, waveform distortion)
Cause analysis: signal input channel failure (such as poor probe connection, probe damage), display circuit failure or oscilloscope improper setting.
Fault point: Eye map test is not accurate
Cause analysis: improper bias current setting, too fast rising edge speed, over-damping, impedance discontinuity, reflection, NRZ data continuity problems, poor symmetry, oscillation and overshoot, terminal impedance mismatch, improper signal preprocessing at the transmitter, improper receiver equalization, or channel cross talk.
By understanding the common faults of the equipment, you can better maintain and use it to ensure its long-term stable operation. If you can not solve, welcome to contact Hao Chen! Our maintenance team has a wealth of practical experience and professional maintenance process, can provide you with fast, reliable, quality maintenance service!
