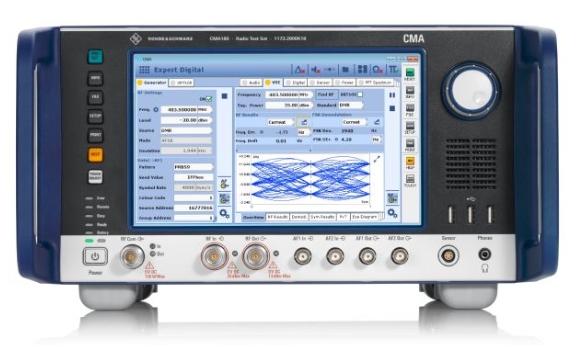

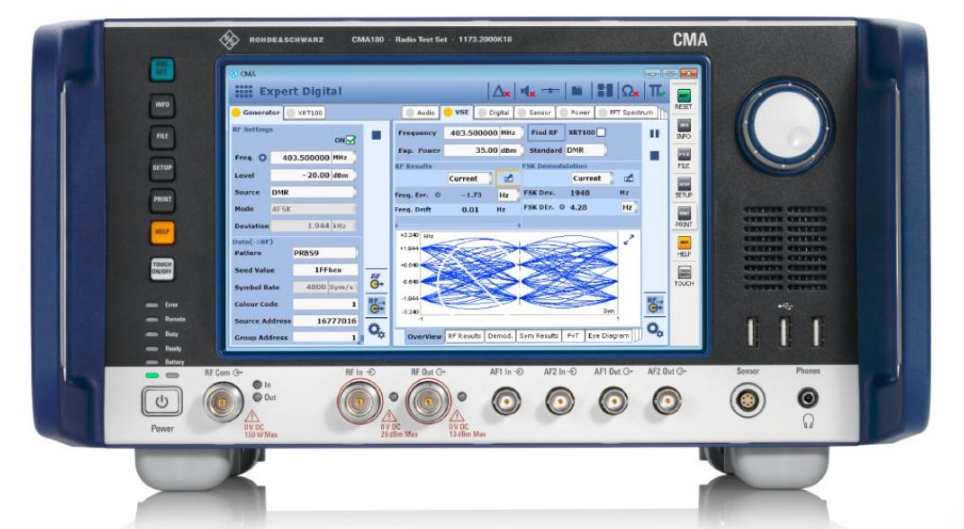

R&S CMA180 is a multi-functional radio communication tester launched by Rohde & Schwarz, covering a frequency range of 0.1 MHz to 3 GHz, supporting analog and multiple digital communication standard tests. It integrates signal generation and analysis functions, which can be extended to 6 GHz frequency and 160 MHz bandwidth via options. Supporting battery power supply and portable operation, it is widely used in R&D, certification and maintenance scenarios of public safety radios, tactical radios and other equipment.
-
Frequency & Bandwidth: Basic frequency 0.1 MHz-3 GHz, extendable to 6 GHz via options; standard 20 MHz bandwidth, up to 160 MHz after expansion, covering mainstream frequency bands.
-
Signal Support: Analog standards including AM, FM, PM, SSB, etc.; digital standards supporting DMR, P25, TETRA, etc., adapting to multi-scenario testing needs.
-
Performance Parameters: RF generator output up to +16 dBm, supporting 150 W peak input power, capable of accurately measuring parameters like ACP and occupied bandwidth.
-
Scalability: Frequency/bandwidth upgrade via CMA-XRT100 option, supporting parallel testing of up to 8 radios, suitable for mass production needs.
-
Usability: Built-in I/Q recording and playback function, supporting battery-powered portable use, intuitive graphical interface, and automatic execution of certification test sequences.
