Description:
The three-channel diode power sensor supports continuous averaging, burst averaging, time slot averaging, gate averaging and trace measurement, and is therefore suitable for a variety of applications. These sensors have outstanding performance and unprecedented measurement speed and accuracy, and can be used for precise average power measurement of wireless signals ranging from GSM and LTE to 5G NR. For detailed analysis, the sensor provides additional measurement functions, such as a time slot mode with a video bandwidth of 100 kHz and a tracking mode.
Features:

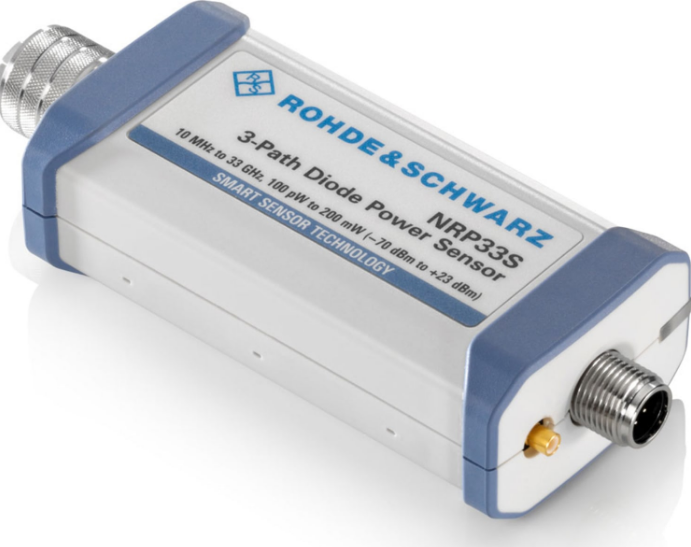

Three-channel diode power sensor
Frequency range: 10 MHz to 33 GHz
Level: -70 dBm to +23 dBm
Connector type: 3.5mm (m)
Please refer to the following text for information on the requirements for computer or instrument connection accessories
If the LAN used does not support the PoE standard, the sensor is connected to the LAN through the PoE switch (R&S NRP-ZAP2)
