Product Description:

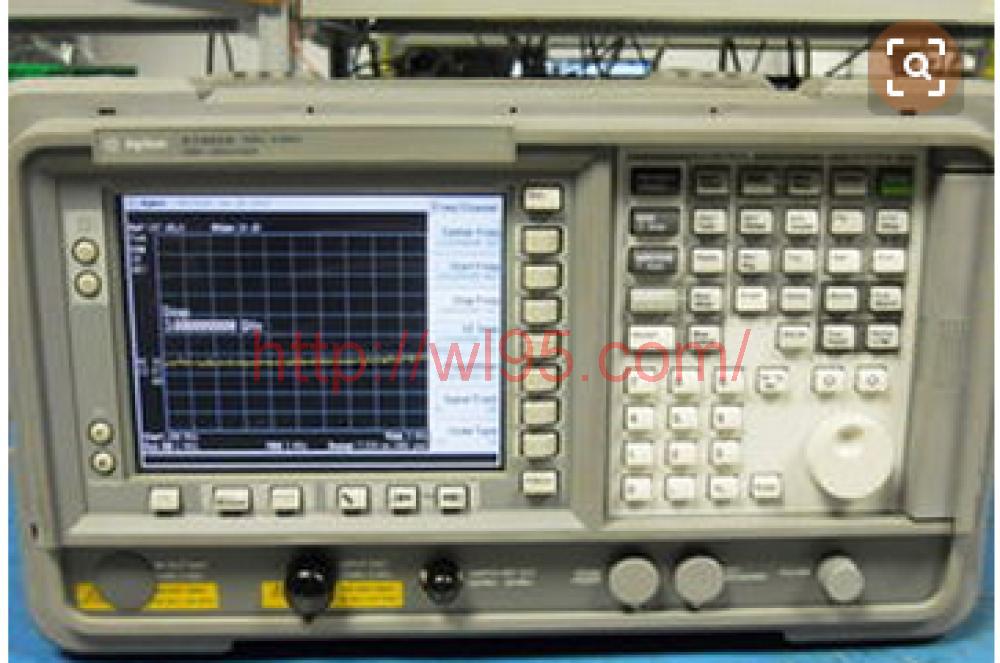

Early evaluation of your design's EMI performance is essential for a successful product. The E7405A EMC standard analyzer provides the capabilities you need in an analyzer to make in-house EMI precompliance testing a reality.The EMC standard analyzer offers you the best value with more productivity options built-in, and guarantees the fast delivery.
Radiated emissions
When combined with a broadband antenna, the E7405A provides the capabilities to check for radiated emissions coming from your DUT. This is best done in an area that is free from reflective objects such as an open area or EMI chamber.
Conducted emissions
Test for noise or interference placed on power or data lines by coupling the E7405A instrument to the power or data line through a line impedance stabilization network (LISN) device or absorbing clamp.
Features：
-
Log sweep
-
Built-in preamplifier
-
Optional tracking generator
-
Options included standard are: A4H, AYQ, B72, 060, 1DR, 1DS
Performance:
-
1 Hz to 5 MHz (including 200 Hz, 9 kHz, 120 kHz, 1 MHz EMI BW)
-
+12.5 dBm TOI
-
≤ 150 dBm displayed average noise level (DANL)
-
Optional (UKB) for lower frequency of 100 Hz
