描述：

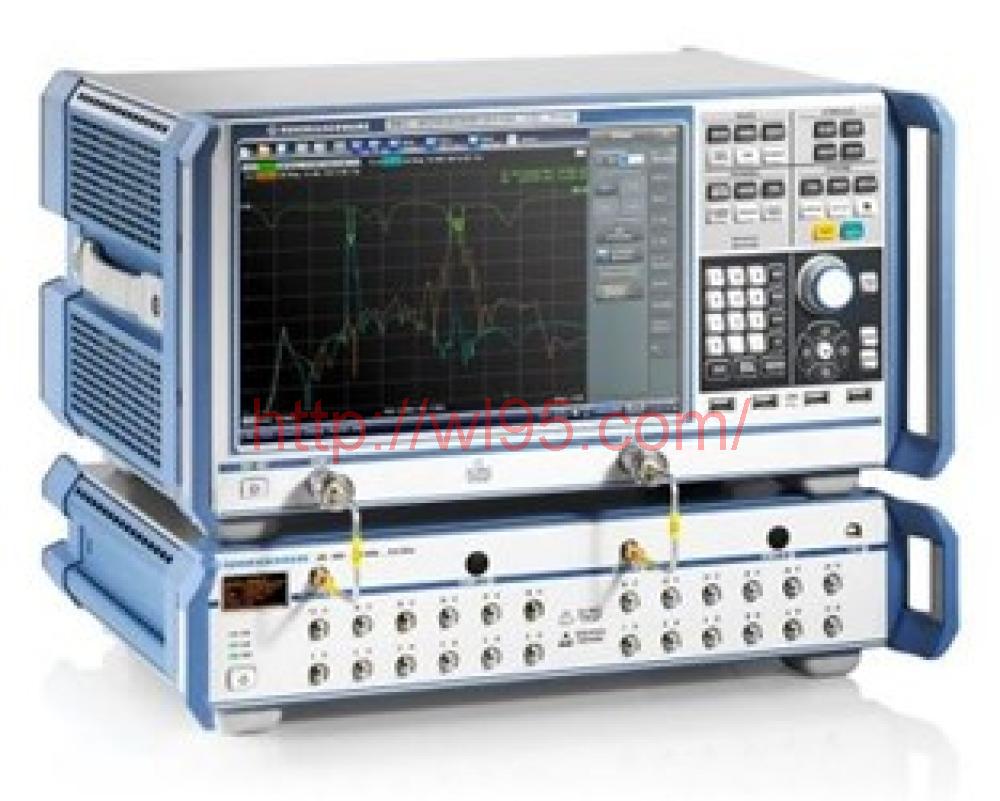

R＆S®ZN-Z84是一个48端口解决方案，旨在补充R＆S ZNB网络分析仪。它用于在研发和生产阶段测试无线通信市场的多端口组件。该矩阵覆盖10 MHz至8.5 GHz频率范围，可以直接通过ZNB网络分析仪进行控制和操作。
ZN-Z84开关矩阵使用户能够测量天线I / O模块，多频带滤波器和分离器的S参数，其多达48个端口的配置使其成为支持支持智能手机或平板电脑的前端模块的完整表征的理想选择在不同的频段上运行。
除了S参数测量之外，该开关矩阵还可以用于多天线阵列的相位测量，还可以表征常见的多端口DUT。
Description:
R&S®ZN-Z84 is a 48-port solution designed to complement the R&S ZNB network analyzer. It is used to test multi-port components in the wireless communications market during the development and production stages. The matrix covers the frequency range of 10 MHz to 8.5 GHz and can be directly controlled and operated by the ZNB network analyzer.
The ZN-Z84 switch matrix enables users to measure the S-parameters of antenna I/O modules, multi-band filters and splitters, and its up to 48 port configuration makes it a complete characterization of front-end modules that support smart phones or tablets The ideal choice to operate on different frequency bands.
In addition to S-parameter measurement, the switch matrix can also be used for phase measurement of multi-antenna arrays and can also characterize common multi-port DUTs.
