附加的功能：

• 电压：0-20V
• 电流：0-76A
• 功率：1520W
• 输出可以并联和串联
• 过压，过流和过热保护
• 模拟编程和监控
• GPIB，LAN，USB 2.0接口
• 85-265 VAC通用交流输入
• IVI-COM驱动程序
• 可编程仪器的标准命令（SCPI）
• 小型高密度1 U封装
• 内置电压和电流测量

描述

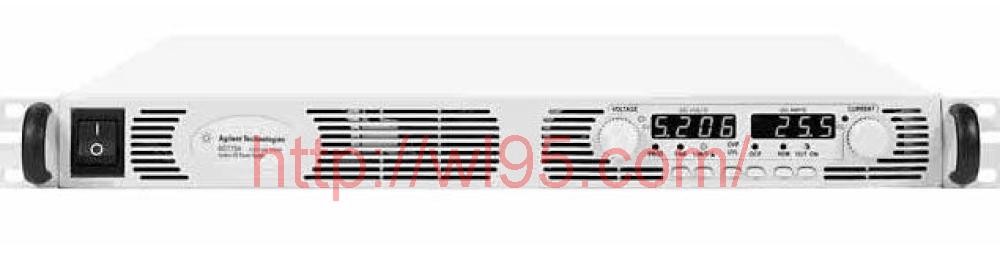

Agilent HP N5764A，1520W经济实惠的单输出可编程直流电源，提供稳定的输出功率以及内置的电压和电流测量。1U高的小尺寸节省了宝贵的机架空间。为了提供更大的灵活性，提供了GPIB，LAN和USB 2.0接口，使您可以通过选择接口来访问仪器。

简单的前面板操作
您可以使用其旋钮和按钮快速轻松地操作电源。使用前面板控件，您可以粗调或微调输出电压和电流，保护设置并设置开机状态（最后设置存储或出厂默认设置）。同时显示输出电压和电流，LED指示灯显示电源状态和操作模式。您可以锁定前面板控件，以防止意外更改电源参数。

广泛的设备保护
为了保护设备免受损坏，N5700系列电源提供了过热，过流和过压保护（OVP），以在发生故障情况时关闭电源输出。它们还提供了欠压限制（UVL），可防止将输出电压调整为低于特定限制。UVL和OVP功能的组合使您可以为敏感负载电路创建保护窗口。

简化系统连接
N5700系列电源是GPIB，以太网/ LAN和USB 2.0接口的标准配置，使您可以灵活地使用现在和将来使用的I / O接口。

远程访问和控制
内置的Web服务器通过标准浏览器（例如Microsoft®Internet Explorer）提供对仪器的远程访问和控制。使用Web浏览器，您可以远程设置，监视和操作N5700。

轻松的系统集成和配置
为简化系统开发，N5700标配有IVI-COM驱动程序。N5700支持易于使用的SCPI（可编程仪器的标准命令）。此外，它还包括Xantrex XFR系列电源，Sorensen DLM系列电源和Agilent 603x系列电源的兼容性命令集。

灵活的配置：并联和串联连接多个单元
如果您需要更大的输出功率，N5700系列电源可让您灵活地并联最多四个相似额定值的单元以提供更大的输出电流，并串联两个相似额定值的单元以实现更大的输出电流。输出电压。

模拟编程和监控
可通过0至5 V或0至10 V的模拟电压或0至5kΩ或0至10kΩ的电阻将输出电压和电流编程为从零到满量程。

通用交流输入
所有N5700型号均具有通用交流输入，因此可以在全球任何交流电源输入电压下自动操作。它们可以在85 – 265 Vac，47至63 Hz的线路电压下工作，当您从一种电压标准切换到另一种电压标准时，无需设置开关或更换保险丝。它们还提供功率因数校正。

机架安装
每个单元都标配有机架安装耳和把手。此外，N5740A机架安装滑动套件通过提供所有必要的硬件即可在仅1 U的机架空间中机架安装N5700系列电源，使将N5700轻松集成到测试机架中变得容易。

Additional Features:

• Voltage: 0-20V
• Current: 0-76A
• Power: 1520W
• Outputs can be connected in parallel and in series
• Over-voltage, over-current and over-temperature protection
• Analog programming and monitoring
• GPIB, LAN, USB 2.0 interfaces
• 85-265 VAC Universal AC input
• IVI-COM drivers
• Standard Commands for Programmable Instruments (SCPI)
• Small high density 1 U package
• Built-in voltage and current measurement

Description

The Agilent HP N5764A, 1520W affordable single output programmable DC power supply, provides stable output power and built-in voltage and current measurement. The small 1U-high size saves valuable rack space. For greater flexibility GPIB, LAN and USB 2.0 interfaces are provided, allowing you to access the instruments via your choice of interface.

Easy Front-Panel Operation
You can quickly and easily operate the power supply with its rotary knobs and buttons. Using the front-panel controls, you can make coarse or fine adjustments of output voltage and current, protection settings, and set power-on states (last setting memory or factory default setting). The output voltage and current are displayed simultaneously, and LED indicators show power supply status and operating modes. You can lock the front panel controls to protect against accidental power-supply parameter changes.

Extensive Device Protection
To safeguard your device from damage, the N5700 Series power supplies provide overtemperature, over-current and over-voltage protection (OVP) to shut down the power supply output when a fault condition occurs. They also offer an under-voltage limit (UVL) that prevents adjustment of the output voltage below a certain limit. The combination of UVL and OVP capabilities lets you create a protection window for sensitive load circuitry.

Simplify System Connections
The N5700 Series power supplies comes standard with GPIB, Ethernet/LAN, and USB 2.0 interfaces giving you the flexibility to use your I/O interface of choice today and in the future.

Remote Access and Control
The built-in Web server provides remote access and control of the instrument via a standard browser such as Microsoft® Internet Explorer. Using the Web browser, you can set up, monitor and operate the N5700 remotely.

Easy System Integration and Configuration
To simplify system development, the N5700 comes standard with IVI-COM drivers. The N5700 supports the easy-to-use SCPI (Standard Commands for Programmable Instruments). Plus it includes a compatibility command set for the Xantrex XFR series power supplies, the Sorensen DLM series power supplies and the Agilent 603x series power supplies.

Flexible configuration: Connect Multiple Units in Parallel and Series
Should you need greater output power, the N5700 series power supplies give you the flexibility to connect in parallel up to four similarly rated units for greater output current and connect two similarly rated units in series for greater output voltage.

Analog Programming and Monitoring
The output voltage and current can be programmed from zero to full scale by either an analog voltage 0 to 5 V or 0 to 10 V or by resistances of 0 to 5 kΩ or 0 to 10 kΩ.

Universal AC input
All N5700 models have universal AC input so they can be automatically operated from any AC mains input voltage worldwide. They can be operated from line voltages of 85 – 265 Vac, 47 to 63 Hz, with no switch to set or fuses to change when you switch from one voltage standard to another. They also provide power factor correction.

Rack Mounting
The rack mount ears and handles are provided standard with every unit. In addition the N5740A rack mount slide kit makes it easy to integrate an N5700 into a test rack by providing all the necessary hardware to rack mount an N5700 series power supply in only 1 U of rack space.
