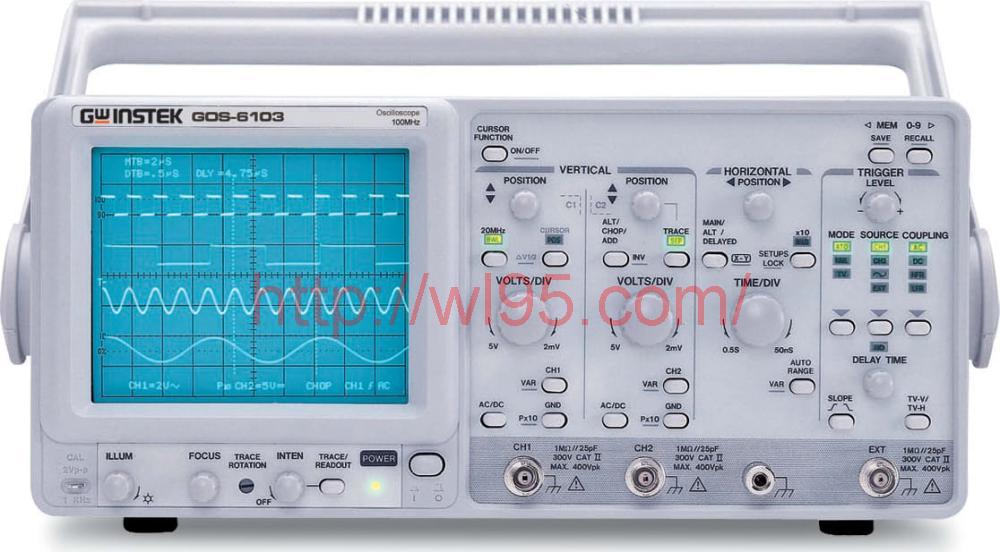

Instek GOS6103示波器是一种图形显示设备-它绘制电信号图形。在大多数应用中，该图显示信号如何随时间变化：垂直（Y）轴表示电压，水平（X）轴表示时间。显示器的强度或亮度有时称为Z轴。
Instek GOS6103示波器的简单图表可以告诉您有关信号的许多信息，例如：信号的时间和电压值，振荡信号的频率，信号所代表的电路的“运动部分”，信号的特定部分相对于其他部分发生的情况，是否有故障组件正在使信号失真，有多少信号是直流电（DC）或交流电（AC）以及有多少信号是噪声以及噪声是否随时间变化。
特征：
The Instek GOS6103 oscilloscope is a graph-displaying device - it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Instek GOS6103 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Features:
