租赁EXFO FOT-930 多功能损耗测试仪

浏览次数:436

晧辰自营,品质保证,配送快捷

产品参数

选件 状态 设备价值 是否计量
完好 0 否
成色 发货周期 所在地
8成新 0天 深圳市
租赁价格: 电议
更新日期:2020-10-10
联系电话:0755-86016691

*产品描述

描述:

具有850/1300/1310 / 1550nm光源的EXFO FOT 930多功能测试仪

EXFO FOT-930 MaxTester多功能损耗测试仪是用于所有网络中双向链路损耗和ORL测试的单一工具解决方案。

通过在一个强大的平台中组合多种工具,可以减少技术人员的培训时间。用户可配置的通过/失败阈值和一键测试可最大程度地减少出错的机会。

使用探头选件可靠地检查连接器端面。可存储多达1,000个测试报告,这些报告可以下载到随附的软件中,以生成全面的自定义报告。



特征:

  • 一键式自动测试多种波长的损耗和ORL,时间小于10秒。
  • 双向的
  • 结合损耗,功率和ORL测量能力
  • 多模和/或单模源
  • 光纤长度测试
  • 连接器检查探头,VFL和Digital Talk选项
  • 通过/失败阈值
  • 高分辨率彩色显示屏
  • 结合了强大的光源,功率计,可视故障定位器,全双工数字通话装置和视频光纤检查探头
  • 高分辨率彩色显示屏和九小时自治
  • 测试基于FTTx的有线电视,POTS和高速数据服务的理想选择
  • 拥有成本:业内最低,得益于三年的保修和建议的校准间隔,无错误的测试以及最少的培训时间



应用范围:

  • 双向链路损耗和ORL表征
  • 高纤网建设
  • FTTx结构

详细信息

Description:

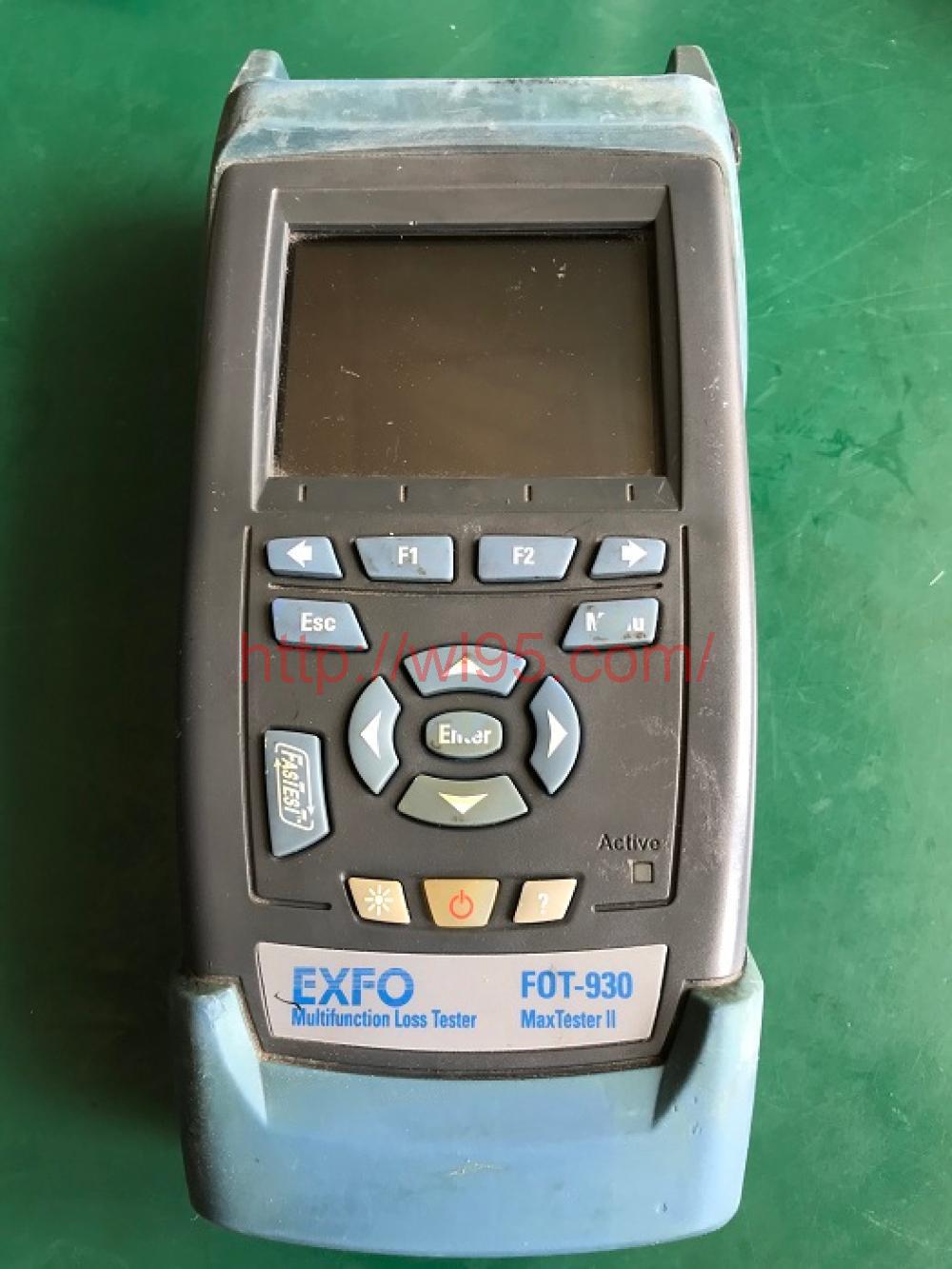

EXFO FOT 930 Multifunction Tester with 850/1300/1310/1550nm Source

The EXFO FOT-930 MaxTester multifunction loss tester is a single tool solution for bi-directional link-loss and ORL testing in all networks.

By combining multiple tools in one powerful platform, technician training time is reduced. User-configurable pass/fail thresholds and one button testing minimize the opportunity for error.

Reliably inspect connector endfaces with the probe option. Stores up to 1,000 test reports that can be downloaded to the included software, to generate comprehensive custom reports.



Features:

  • One Touch Automated Testing of Multiple Wavelengths for Loss & ORL in <10sec.
  • Bidirectional
  • Combines Loss, Power and ORL Measurement Capability
  • Multimode and/or Singlemode Sources
  • Fiber Length Testing

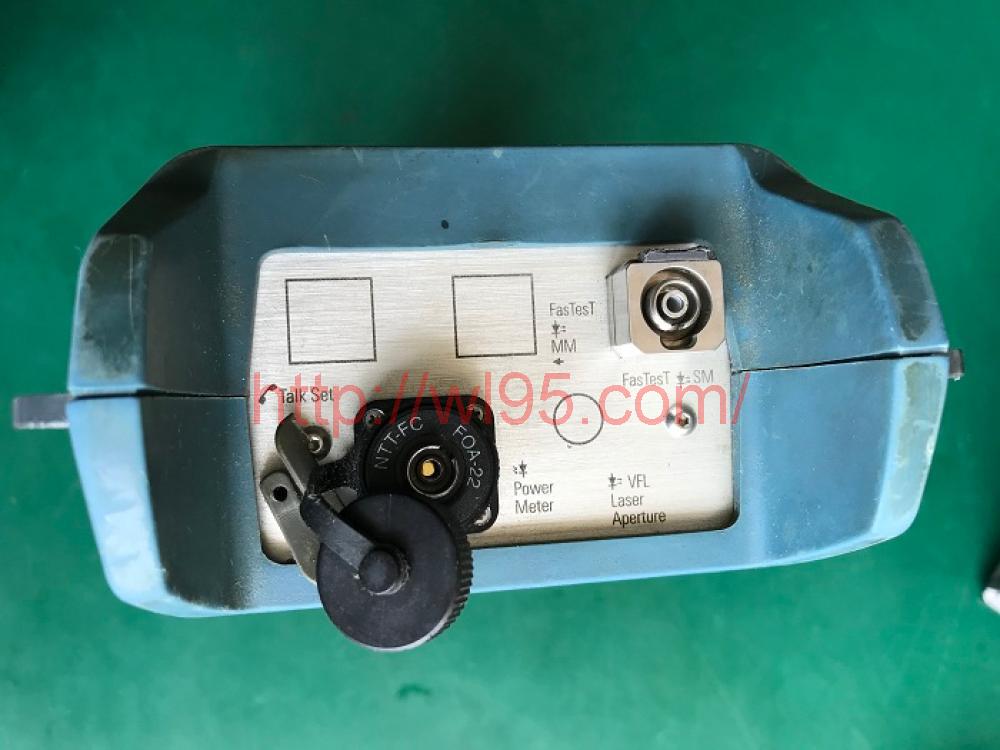

  • Connector Inspection Probe, VFL and Digital Talk Options
  • Pass/fail Thresholds
  • High Resolution Color Display
  • Combines a powerful light source, a power meter, a visual fault locator, a full-duplex digital talk set and a video fiber inspection probe
  • High-resolution color display and nine hours autonomy
  • Ideal for testing FTTx-based cable TV, POTS and high-speed data services
  • Cost of ownership: lowest in the industry, thanks to three-year warranty and recommended calibration interval, error-free testing and minimized training time



Applications:

  • Bidirectional link-loss and ORL characterization
  • High-fiber-count network construction
  • FTTx construction
