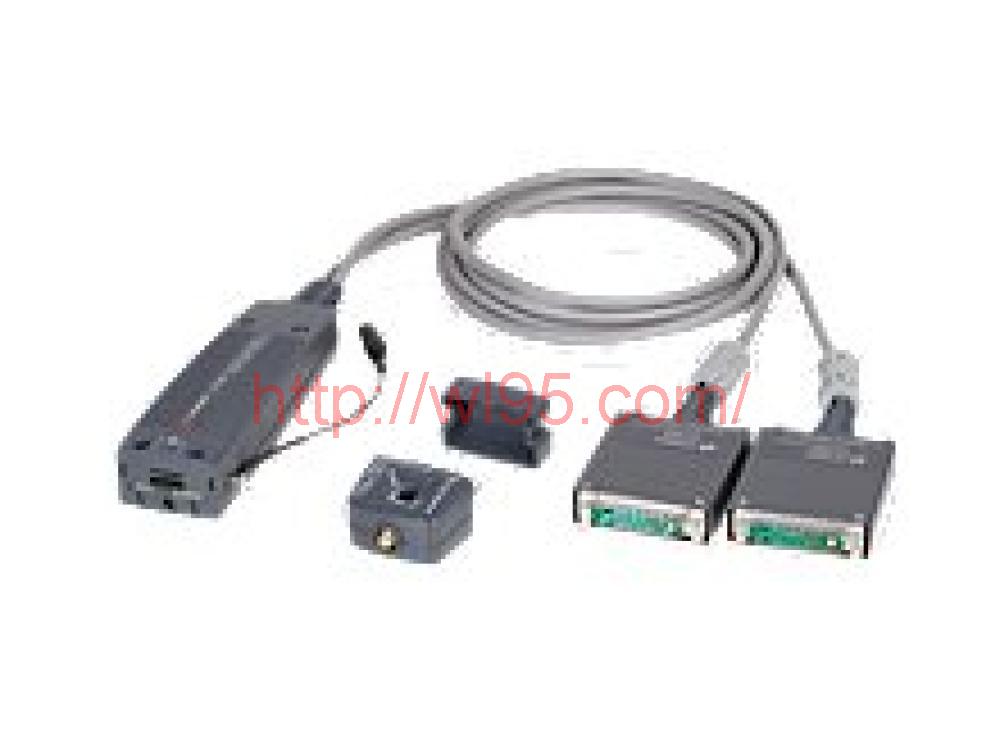

CX1102A 双通道电流传感器使用 CX3300 系列主机的两个通道，能够支持更宽的动态测量范围。主通道和副通道保持同步，测量范围相差 100 倍，让您可以同时在 CX3300 主机上查看两种波形。当您测量宽动态范围电流波形时，例如测量交替在休眠/待机和激活模式下工作的低功率无线器件或低功率微控制器的电流波形，这种传感器非常有用。它拥有从 40 nA 到 1 A 的宽测量范围、100 MHz 的独立最大带宽和高达 ±12 V 的共模电压范围。该传感器使用一个传感器头与被测器件建立电气连接。它还配备一套 CX1203 同轴端接传感器头和电缆，让您可以立即开始测量。宽带噪声抑制电流测量技术使您能够在小输入电阻下（通常为 410 mΩ）测量低电平电流波形。
The CX1102A Dual Channel Current Sensor uses two channels on the CX3300 series mainframe and enables much wider dynamic measurement range. The primary channel and the secondary channel are synchronized and have 100 times range difference, and you can view both waveforms simultaneously on a CX3300 mainframe. It is very useful when you measure wide dynamic range current waveforms such as in low power wireless devices or low power microcontrollers, which operates intermittently between sleep/standby and active states. It features wide measurement ranges from 40 nA to 1 A, 100 MHz stand-alone maximum bandwidth, and up to ±12 V common mode voltage range. Using a Sensor Head enables the electric connection to DUT. One unit of CX1203 Coaxial Termination Sensor Head and cables are furnished, so you can start measurements immediately. The wideband noise suppressed current measurement technology allows you to measure low-level current waveforms with small input resistance, typically 410 mΩ.
