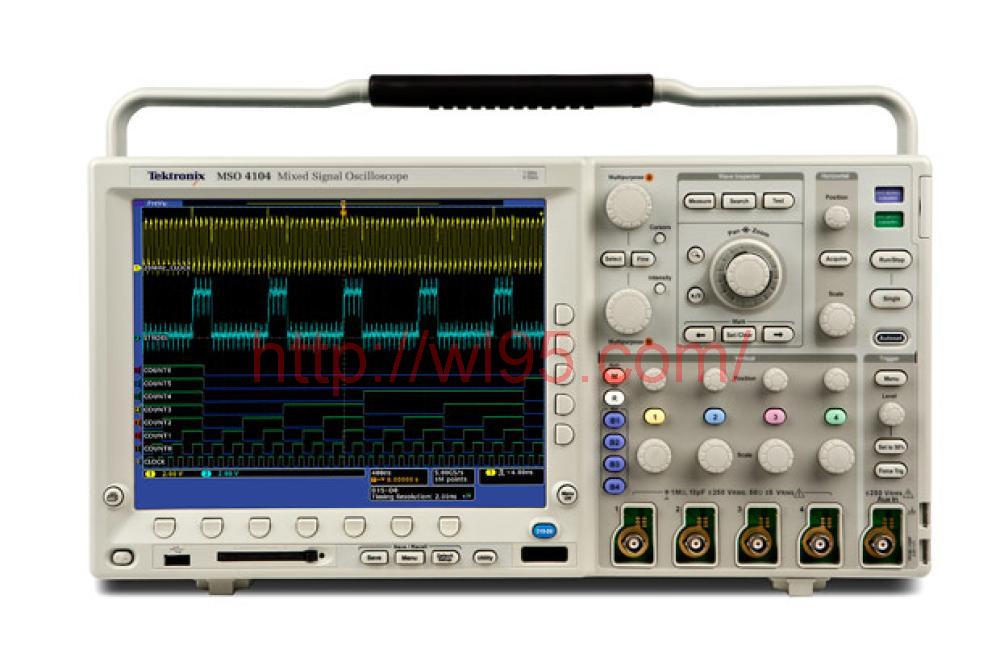

Tektronix DPO4104 Product Overview
Key Performance Specifications
-
1 GHz Bandwidth Models
-
4 Analog Channel Models
-
5 GS/s Sample Rate on All Channels
-
10 Megapoint Record Length on All Channels
-
>50,000 wfm/s Maximum Waveform Capture Rate
-
Suite of Advanced Triggers
-
350 ps Calculated Rise Time 5 mV/div (typical)
-
2 ms Maximum Duration at Highest Sample Rate (All channels)
Ease of Use Features
-
Wave Inspector® Controls provide Easy Navigation and Automated Search of Waveform Data
-
29 Automated Measurements, Waveform Histograms, and FFT Analysis for Simplified Waveform Analysis
-
TekVPI® Probe Interface supports Active, Differential, and Current Probes for Automatic Scaling and Units
-
10.4 in. (264 mm) XGA Color Display
-
Small Footprint and Lightweight – Only 5.4 in. (137 mm) deep and 11 lb. (5 kg)
Connectivity
-
USB 2.0 Host Port on the Front Panel and Two on the Rear Panel for Quick and Easy Data Storage, Printing, and Connecting a USB Keyboard
-
USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
-
Integrated 10/100 Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
Optional Serial Triggering and Analysis
-
Automated Serial Triggering, Decode, and Search Options for I2C, SPI, USB, CAN, LIN, FlexRay, RS-232/422/485/UART, and I2S/LJ/RJ/TDM
Mixed Signal Design and Analysis (MSO Series)
-
Automated Triggering, Decode, and Search on Parallel Buses
-
Per-channel Threshold Settings
-
Multichannel Setup and Hold Triggering
-
MagniVu™ High-speed Acquisition Provides 60.6 ps Fine Timing Resolution on Digital Channels
Optional Application Support
-
Power Analysis
-
HDTV and Custom Video Analysis
