描述：
面加速调试各个阶段的工具要

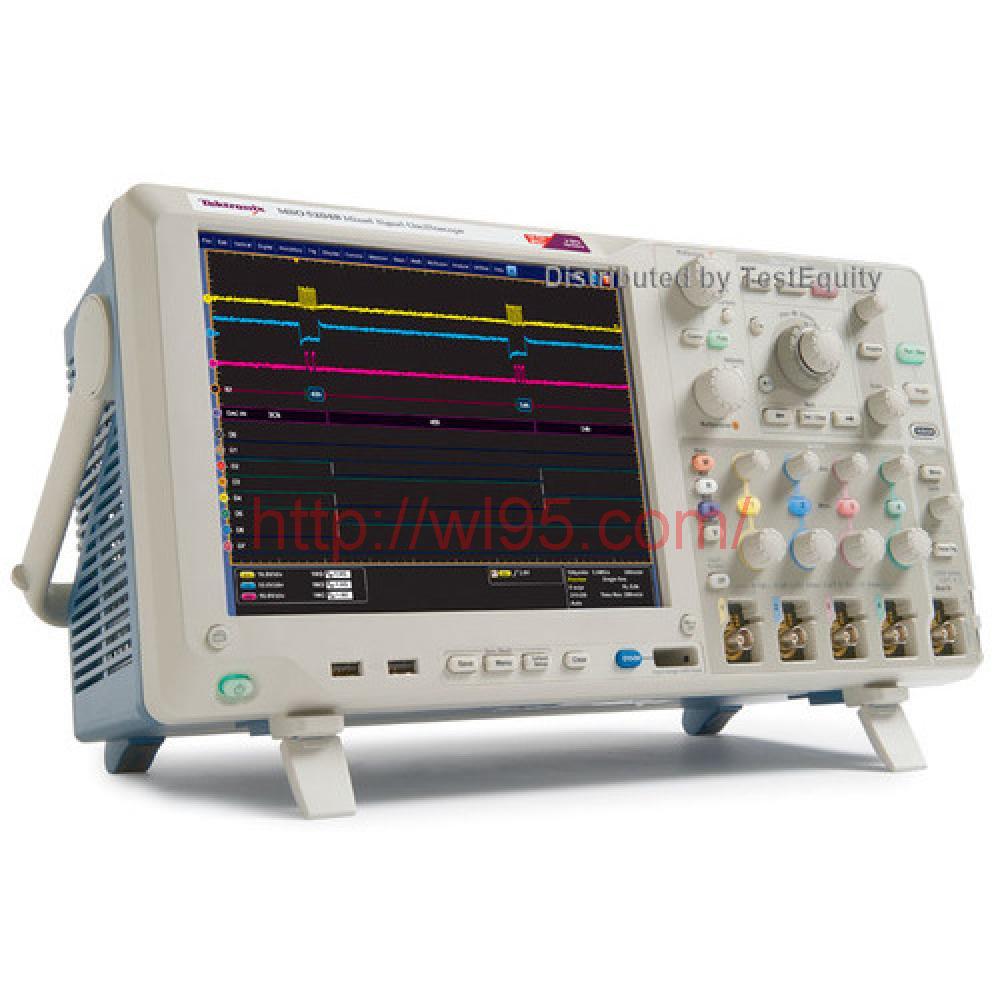

以当今更快的数据速率和更窄的时序余量进行设计，就需要一台具有出色信号采集性能和分析功能的示波器。泰克DPO / MSO5000B系列示波器可在工作台和实验室中提供出色的信号保真度，2 GHz带宽和10 GS / s采样率以及先进的分析和数学功能。直接在示波器上运行基于Windows的分析软件。指向并单击“可视触发器”使您可以轻松捕获复杂的信号。MSO模型包括16个数字定时通道，所有模型都可以配置为解码通用串行协议，从而提供您系统的全面视图。
混合信号设计和分析（MSO型号）
MSO5000B系列混合信号示波器提供16个数字通道。这些通道紧密集成在示波器的用户界面中，简化了操作，并可以轻松解决混合信号问题。MSO功能也可以在以后作为用户升级（选件MSOE）添加。
精确的高速探测
TPP系列探头是每个DPO / DPO5000B系列示波器的标准配置，提供高达1 GHz的模拟带宽和小于4 pF的电容负载。极低的电容性负载可最大程度地减少对电路的不利影响，并且更长的接地导线的容忍度更高。借助探头的宽带宽，您可以看到信号中的高频成分，这对于高速应用至关重要。
长记录长度
标准记录长度为25M /通道（可选，最大记录长度为250 M点），您可以在一次采集中捕获许多感兴趣的事件，甚至数千个串行数据包，以进行进一步分析。与同类示波器不同，DPO / MSO5000B提供了记录长度和采样率的灵活设置，以确保最佳分辨率。
快
速发现
DPO / MSO5000B系列提供了业界最完整的性能来捕获和隔离事件，从而快速洞悉设备的实际操作。泰克专有的FastAcq技术可提供快速的波形捕获-每秒大于250,000个波形-使您能够在几秒钟内看到毛刺和其他不常见的瞬变。
分段内存
分段内存模式使您可以选择多达290,000个内存段，其触发捕获速率超过每秒310,000个触发器。除了存储器的灵活性外，段还带有时间戳，可以单独查看或作为叠加图查看，并使用协议解码等高级功能进行分析。
MagniVu™高速采集
DPO / MSO5000B系列上的主要数字采集模式将以500 MS / s（2 ns的分辨率）捕获多达4000万个点。除主要记录外，DPO / MSO5000B还提供了称为MagniVu的超高分辨率记录，该记录以高达16.5 GS / s（60.6 ps的分辨率）获得10,000点。每次触发时都会采集主波形和MagniVu波形，并且可以随时显示，运行或停止。
导航和搜索
DPO / MSO5000B系列通过其创新的Wave Inspector控件提供了业界最全面的搜索和波形导航。这些控件可加快记录的平移和缩放速度。借助独特的强制反馈系统，您可以在几秒钟内将记录的一端移到另一端。
可视触发和搜索通过扫描所有波形采集并将它们与屏幕上的区域（几何形状）进行比较，可以快速轻松地识别所需的波形事件。可以使用各种形状创建区域，包括三角形，矩形，六边形，梯形和用户指定的形状。
DPO / MSO5000B系列的其他主要功能
所有型号均包括：每个模拟通道一个无源电压探针（TPP0500 500MHz，10X，3,9pF（用于500 MHz和350 MHz型号TPP1000 1 GHz，10X，3.9pF（用于2 GHz和1 GHz型号）），前盖，触摸屏触控笔，用户手册，附件袋，鼠标，校准证书，记录了对国家计量学院的测量可追溯性，符合Z 540-1和ISO9001的要求。MSO型号还包括：一个P6616 16通道逻辑探头和一个逻辑探头附件套件。
Description：
Comprehensive tools that speed every stage of debug
Designing with today's faster data rates and tighter timing margins requires an oscilloscope with outstanding signal acquisition performance and analysis capabilities. Tektronix DPO/MSO5000B Series oscilloscopes provide exceptional signal fidelity, with 2 GHz bandwidth and 10 GS/s sample rate, along with advanced analysis and math capabilities, on your bench and in your lab. Run Windows-based analysis software right on the oscilloscope. Point and click Visual Triggers enable you to capture complex signals with ease. MSO models include 16 digital timing channels, and all models can be equipped to decode common serial protocols, providing a comprehensive view of your systems.
Mixed signal design and analysis (MSO Models)
The MSO5000B Series mixed-signal oscilloscopes provide 16 digital channels. These channels are tightly integrated into the oscilloscope's user interface, simplifying operation and making it possible to solve mixed-signal issues easily. MSO functionality can also be added later as a user upgrade (Option MSOE).
Accurate high-speed probing
The TPP Series probes, included standard with every DPO/DPO5000B Series oscilloscope, provide up to 1 GHz of analog bandwidth, and less than 4 pF of capacitive loading. The extremely low capacitive loading minimizes adverse effects on your circuits and is more forgiving of longer ground leads. And with the probe's wide bandwidth, you can see the high frequency components in your signal, which is critical for high-speed applications.
Long record length
With a standard record length of 25M/channel, (optional up to 250 M point record length), you can capture many events of interest, even thousands of serial packets, in a single acquisition for further analysis. Unlike other oscilloscopes in its class, the DPO/MSO5000B provides flexible setup of both record length and sampling rate to ensure optimum resolution.
Fast discovery
The DPO/MSO5000B Series offers the industry's most complete performance to capture and isolate events, providing fast insight into the real operation of your device. Tektronix proprietary FastAcqtechnology delivers a fast waveform capture - greater than 250,000 waveforms per second - that enables you to see glitches and other infrequent transients within seconds.
Segmented memory
Segmented Memory mode enables you to select up to 290,000 memory segments with a trigger capture rate of over 310,000 triggers per second. Beyond memory flexibility, segments are time stamped and can be viewed individually or as an overlay and analyzed using advanced features like protocol decoding.
MagniVu™ high-speed acquisition
The main digital acquisition mode on the DPO/MSO5000B Series will capture up to 40 M points at 500 MS/s (2 ns resolution). In addition to the main record, the DPO/MSO5000B provides an ultra high-resolution record called MagniVu which acquires 10,000 points at up to 16.5 GS/s (60.6 ps resolution). Both the main and MagniVu waveforms are acquired on every trigger and either can be displayed at any time, running or stopped.
Navigation and search
The DPO/MSO5000B Series offers the industry's most comprehensive search and waveform navigation with its innovative Wave Inspector controls. These controls speed panning and zooming through your record. With a unique force-feedback system, you can move from one end of your record to the other in just seconds.
Visual Trigger and Search makes the identification of the desired waveform events quick and easy by scanning through all waveform acquisitions and comparing them to on-screen areas (geometric shapes). Areas can be created using a variety of shapes including triangles, rectangles, hexagons, trapezoids, and user specified shapes.
Additional DPO/MSO5000B Series Key Features
All models include: one passive voltage probe per analog channel (TPP0500 500MHz, 10X, 3,9pF for 500 MHz and 350 MHz models TPP1000 1 GHz, 10X, 3.9pF for 2 GHz and 1 GHz models), front cover, touchscreen stylus, user's manual, accessory pouch, mouse, calibration certificate documenting measurement traceability to National Metrology Institute(s), Z 540-1 compliance and ISO9001. MSO Models also include: one P6616 16-channel logic probe and a logic probe accessory kit.
