思博伦GSS6560 12通道GPS仿真系统具有以下功能：
思博伦的GSS6560 12通道GPS / SBAS仿真系统为场景创建和数据分析提供了全面的用户控制，使其非常适合在开发/验证环境中使用。
GSS6560 12通道GPS仿真系统可提供用户对方案创建和数据分析的完全控制，使其非常适合在研发或产品开发环境中使用。
提供的GSS6560已预先安装了思博伦的Windows®软件套件SimGEN。SimGEN在基于Windows的直观环境中提供了完整的灵活性和方案定义功能。
应用
GSS6560是一款非常强大且灵活的测试工具，适用于所有GPS L1 C / A代码应用。经常使用此产品的示例应用领域：
汽车： GSS6560可以与思博伦的DR /惯性传感器仿真选件（SimAUTO）集成。该系统广泛用于远程信息处理和IVNS测试应用。SimAUTO与GPS RF相干地模拟汽车运动传感器，例如车轮滴答声和陀螺仪。转台支持可用于带有嵌入式惯性传感器的导航系统，在这种导航系统中，必须物理转动被测设备。
民航： GSS6560包括SBAS（WAAS，EGNOS，MSAS）模拟以及GPS L1。还提供用于修正消息的局域增强系统（LAAS）VHF信号发生器，并且可以与GSSS6560集成。
基于位置的服务： GSS6560可以用作独立的仿真系统，也可以作为集成手机GPS +网络测试解决方案来提供。思博伦提供全面的A-GPS测试系统，可对整个手机环境进行性能测试，并测试标准的最低性能标准测试用例。
太空系统： 思博伦的系统为基于太空的仿真提供特定功能，包括特殊的大气模型以及绕GPS卫星MEO轨道运行的能力。所有这些都是在思博伦的系统中建模的。此外，GSS6560可以轻易接受远程轨道运动轨迹。
主要特点

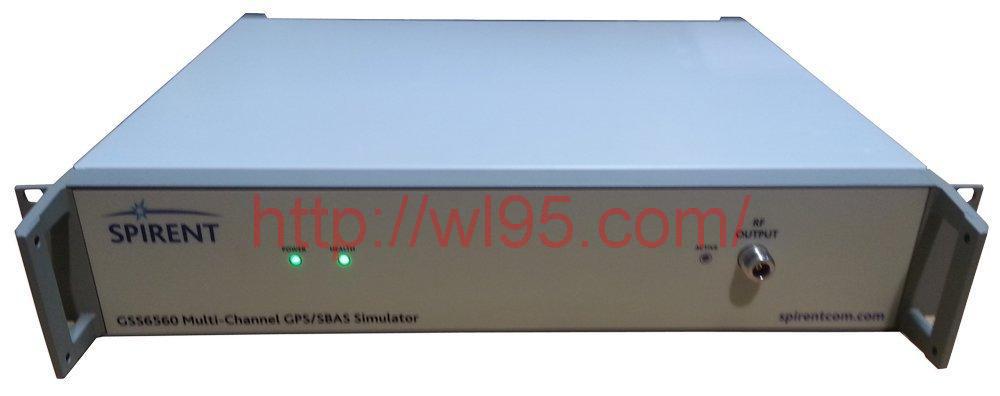

Spirent GSS6560 12-channel GPS Simulation System with the following:
The GSS6560 12 channel GPS/SBAS simulation system from Spirent offers full user control of scenario creation and data analysis, making it ideally suited to use in a development/verification environment.
The GSS6560 12-channel GPS Simulation System offers full user control of scenario creation and data analysis, making it ideally suited for use in a research and development or product development environment.
The GSS6560 is supplied, pre-installed with Spirent’s SimGEN for Windows® software suite. SimGEN offers complete flexibility and scenario definition capability in an intuitive Windows-based environment.
Applications
The GSS6560 is a very powerful and flexible test tool for all GPS L1 C/A code applications. Example application areas where this product is regularly used:
Automotive: The GSS6560 may be integrated with Spirent’s DR/inertial sensor simulation option (SimAUTO). This system is widely used in telematics and IVNS test applications. SimAUTO simulates car motion sensors such as wheel ticks and gyros coherently with the GPS RF. Turntable support is available for navigation systems with embedded inertial sensors where the unit under test has to be physically turned.
Civil Aviation: The GSS6560 includes SBAS (WAAS, EGNOS, MSAS) simulation as well as GPS L1. A Local Area Augmentation System (LAAS) VHF signal generator for correction messages is also available and may be integrated with the GSSS6560.
Location Based Services: The GSS6560 may be used as a stand-alone simulation system or offered as an integrated handset GPS + network test solution. Spirent offers comprehensive A-GPS test systems for performance testing the entire handset environment as well as testing to the standard minimum performance standard test cases.
Space Systems: Spirent’s systems offer specific features for space-based simulation including special atmospheric models and the ability to orbit beyond the GPS satellites MEO. All this is modeled in Spirent’s systems. In addition, remote orbit motion trajectories can be readily accepted by the GSS6560.
Key Features
