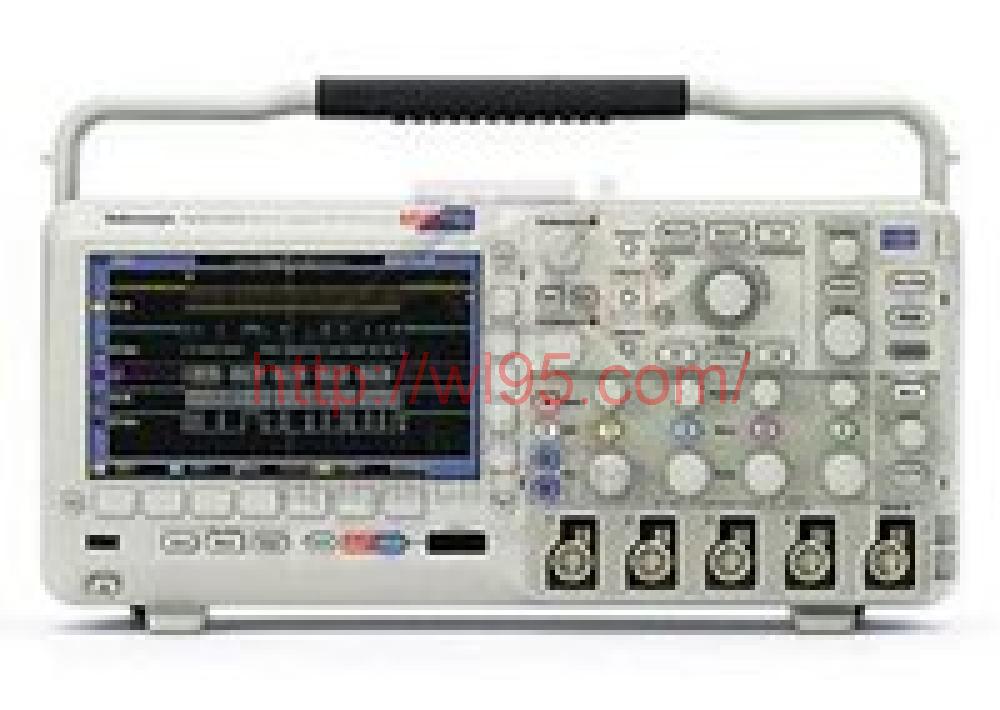

Tektronix MSO2024 Product Overview
Key Performance Specifications
-
200 MHz Bandwidth Models
-
4 Analog Channel Models
-
16 Digital Channels (MSO Series)
-
1 GS/s Sample Rate on All Channels
-
1 Megapoint Record Length on All Channels
-
5,000 wfm/s Maximum Waveform Capture Rate
-
Suite of Advanced Triggers
Ease of Use Features
-
Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data
-
FilterVu™ Variable Low-pass Filter Allows for Removal of Unwanted Signal Noise while still Capturing High-frequency Events
-
29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
-
TekVPI® Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
-
7 in. (180 mm) Widescreen TFT-LCD Color Display
-
Small Footprint and Lightweight – Only 5.3 in. (134 mm) deep and 7 lb. 14 oz. (3.6 kg)
Connectivity
-
USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage
-
USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
-
Optional 10/100 Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
Optional Serial Triggering and Analysis
-
Automated Serial Triggering, Decode, and Search Options for I2C, SPI, CAN, LIN, and RS-232/422/485/UART
Mixed Signal Design and Analysis (MSO Series)
-
Automated Triggering, Decode, and Search on Parallel Buses
-
Multichannel Setup and Hold Triggering
