Keysight InfiniiVision Infiniium 9000 Series — Widest Range of Debug and Compliance Software Applications:

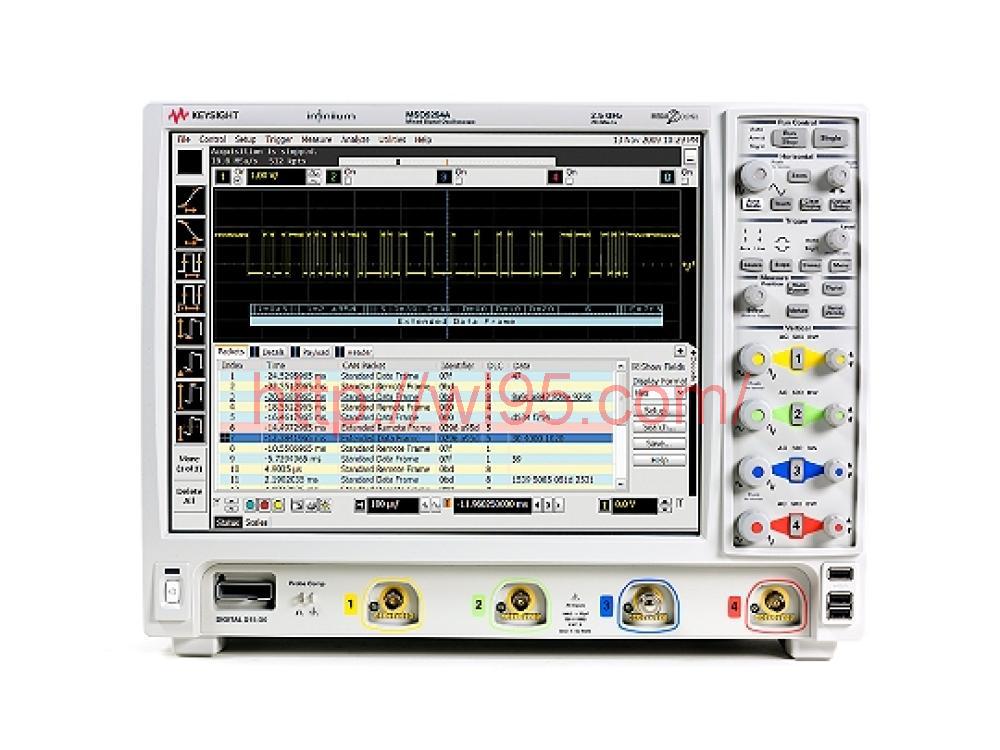

High-performance scope channels ensure superior viewing of signals under test. All models incorporate a powerful, feature-packed Infiniium oscilloscope with responsive deep memory. With standard 20 Mpts/ch, and up to 1 Gpts/ch of memory, you can capture long time periods while retaining fast sample rates. Fast update rates mean your scope stays responsive with deep memory on, ensuring precise representation of analog signals. Advanced triggers are essential when you are investigating suspected problems. Infiniium offers a full range of advanced triggers to help you isolate and capture the condition you need to characterize. The 9000 Series simplifies trigger setups by using intuitive dialog boxes with descriptive graphics. MSO models add 16 high-speed timing channels with standard 128 Mpts digital memory, allowing you to retain fast 2 GSa/s sample rates over long periods of time.
Features:
Bandwidths from 600 MHz to 4 GHz
3-in-1 instrument: oscilloscope, logic analyzer, and protocol analyzer
Channels 4-ch, and 4-ch + 16 digital channels models
Sample rate 10 GSa/s (20 GSa/s on 2-ch) (600 MHz is 5 GSa/s on
4-ch and 10 GSa/s on 2-ch)
Memory 20 Mpts standard (40 Mpts on 2-ch)
Display 15" high-definition display with XGA resolution
Triggering Edge, glitch, runt, timeout, pattern/ pulse range, state, pulse width line, window, setup and hold, video and serial
Capture longer time periods with up to 1 Gpts memory depth
See precise representation of your signal with 20 GSa/s maximum sample rate
Supports a wide range of compliance, protocol, and analysis software applications
Serial protocol applications include CAN, LIN, PCI Express, FlexRay, I2C, SATA, USB, DigRF, JTAG, MIPI D-PHY, RS-232/UART and more
Make your own custom measurement and analysis routines, user-defined filters, or instrument applications with MATLAB software, which is available directly from Keysight
Compatible with a comprehensive line of probing solutions
9000 Series Protocol Applications:
More than 19 protocol decoders are available
Converts DSO or MSO physical layer acquisitions into packets for specific protocols
Quickly move between physical and protocol layer information using the time-correlated tracking marker
9000 Series Compliance Applications:
Test to the exact specifications of each technology standard
Keysight experts participate in multiple technology boards and committees
9000 Series Analysis Applications:
Full offline capability allows you to test from simulation through silicon debug
Power application to provide a full suite of power measurements that run directly on your oscilloscope
Open tightly shut eyes with equalization
