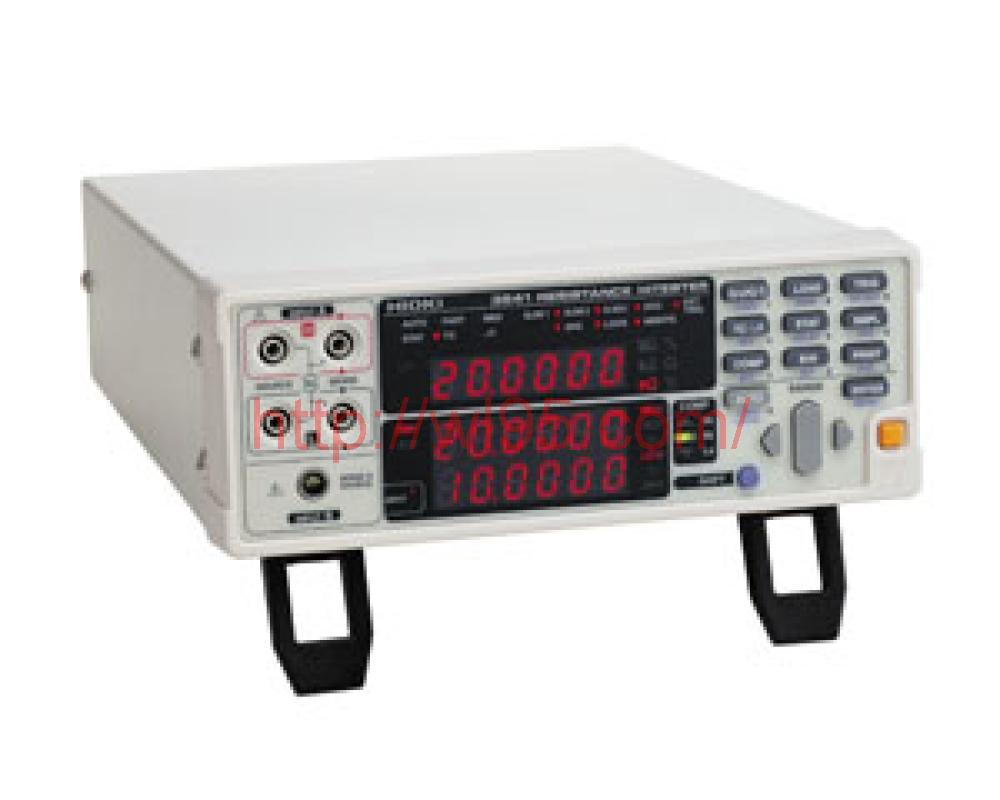

宽量程、高分辨率、适用于系统测试的电阻计
● 广范围测量 最低0.1μΩ（20.00mΩ），最高110MΩ
● 快速采样,最快可达0.6ms (*根据设定条件的不同,会有差异)
● 补正偏置电压,用9451(Pt)/温度探头进行温度补正功能
● 运用4端子测量技术,测试线接触电阻可忽略不计
● 具备统计、演算功能。若再另配选件的9670,可实现打印。
| 测量电流 |
20mΩ（最大显示20.0000mΩ, 分辨率0.1μΩ）~100MΩ量程（最大显示110.000MΩ，分辨率1kΩ），11档切换 |
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 测量精度 |
(SLOW2） ± 0.007% rdg. ±0.0015%dgt.（2k/20kΩ） [Low Power ON时]: ± 0.011% rdg. ±0.01%dgt.（2～2kΩ） |
||||||||||||||||||||
| 测量电流 | DC 1A～100nA, [Low Power ON时]: DC 10m～10μA | ||||||||||||||||||||
| 开路端子电压 | DC 5V（20/200m）, 2.6V（2～20k）, 13V（1M～100M）,[Low Power ON时]: 60mV | ||||||||||||||||||||
| 采样速度 |
|
||||||||||||||||||||
| 其它功能 | 温度测量（-10.0~99.9 °C ），温度补偿电阻值换算，卷线温度上升值换算，比较功能，最多可储存装填30种设定条件,分类（BIN）测量（10分类）, 统计运算, 补偿偏置电压，迟延 , 平均 | ||||||||||||||||||||
| 外部输入/输出 | 输出: BCD, 测量结束,比测仪结果, BIN结果, NG/开放连接器输入: 设定条件选择, 触发, 校准, 0ADJ,印刷 /C-MOS | ||||||||||||||||||||
| 供应电源 | AC 100～240V, 50/60Hz, 30VA max. | ||||||||||||||||||||
| 体积及重量 | 215宽 × 80高 × 295厚mm, 2.6kg | ||||||||||||||||||||
| 附件 | 夹型测试线 9287× 1, 温度探头 9451× 1, 电源线× 1, EXT I/O用插入式连接器× 1 | ||||||||||||||||||||
Wide range, high resolution, resistance meter suitable for system testing
● Wide range measurement is as low as 0.1μΩ (20.00mΩ), up to 110MΩ
● Fast sampling, up to 0.6ms (*Depending on the setting conditions, there will be differences)
● Correct the bias voltage, use 9451 (Pt) / temperature Probe temperature correction function
● Using 4-terminal measurement technology, the contact resistance of the test line can be ignored
● With statistics and calculation functions. If it is equipped with optional 9670, printing can be realized.
| Measuring current |
20mΩ (maximum display 20.0000mΩ, resolution 0.1μΩ) ~ 100MΩ range (maximum display 110.000MΩ, resolution 1kΩ), 11 levels switch |
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| measurement accuracy |
(SLOW2） ± 0.007% rdg. ±0.0015%dgt.（2k/20kΩ） [Low Power ON时]: ± 0.011% rdg. ±0.01%dgt.（2～2kΩ） |
||||||||||||||||||||
| Measuring current | DC 1A～100nA, [When Low Power ON]: DC 10m～10μA | ||||||||||||||||||||
| Open terminal voltage | DC 5V（20/200m）, 2.6V（2～20k）, 13V（1M～100M）,[Low Power ON时]: 60mV | ||||||||||||||||||||
| Sampling rate |
|
||||||||||||||||||||
| other functions | Temperature measurement (-10.0~99.9 °C), temperature compensation resistance value conversion, winding temperature rise value conversion, comparison function, can store up to 30 setting conditions, classification (BIN) measurement (10 classifications), statistical calculation, Compensation offset voltage, delay, average | ||||||||||||||||||||
| External input/output | Output: BCD, measurement end, comparator result, BIN result, NG/open connector input: setting condition selection, trigger, calibration, 0ADJ, printing/C-MOS | ||||||||||||||||||||
| Power supply | AC 100～240V, 50/60Hz, 30VA max. | ||||||||||||||||||||
| Volume and weight | 215 width × 80 height × 295 thickness mm, 2.6kg | ||||||||||||||||||||
| annex | Clip-on test leads 9287×1, temperature probe 9451×1, power cord×1, plug-in connector for EXT I/O×1 | ||||||||||||||||||||
