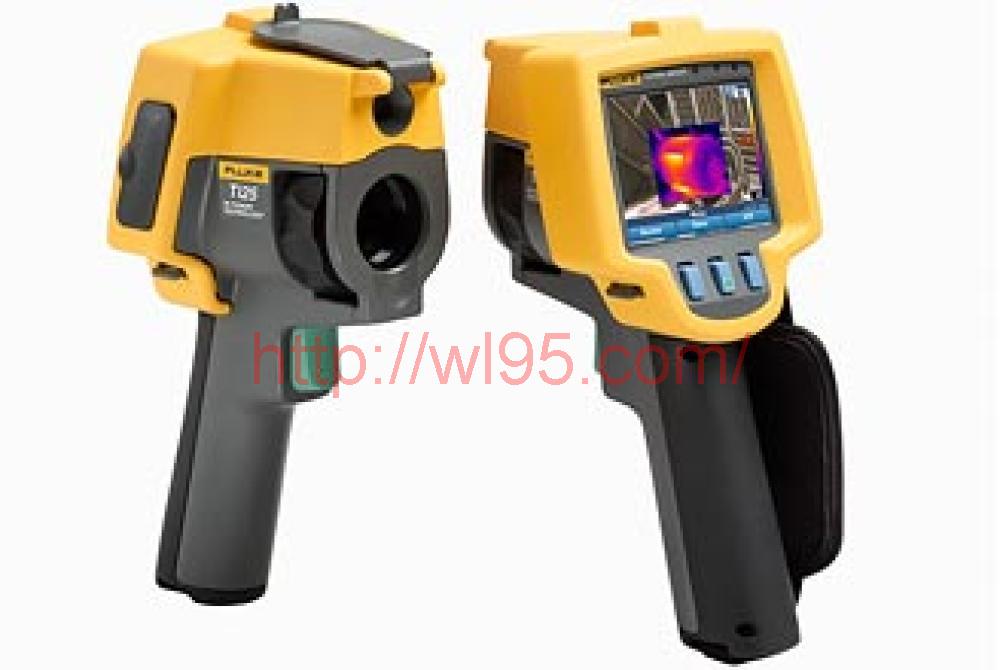

The Fluke TI25 thermal imaging camera is the perfect tool to improve troubleshooting capabilities. This high-performance, full-radiation imager is optimized for harsh working environments, and is very suitable for troubleshooting in electrical installations, electromechanical equipment, process equipment, HVAC/R equipment and more.
Features of Fluke Ti10 thermal imaging camera:
-
Using IR-Fusion? technology to enhance the fault detection and analysis capabilities. Simply scroll under different observation modes to better identify the fault location. Observation modes include full infrared, picture-in-picture or automatic fusion of visible light images and thermal infrared images.
-
Optimized design for field applications in harsh environments
-
Engineered and tested to withstand a drop of 2 meters (6.5 feet)-when was the last time you dropped the tool on the ground?
-
Dustproof and waterproof-IP54 protection level
-
Provides the clear and sharp images needed to quickly find faults
-
Excellent thermal sensitivity (NETD) can be found in an extremely subtle temperature of the difference (it may indicate a failure)
-
Intuitive, easy-to-use 3-button menu-easy navigation with one thumb
-
The toolkit provides all the tools needed for the job
-
Adjustable hand strap-suitable for left or right hand operation
-
made in America
Detailed technical specifications of Fluke Ti10 thermal imaging camera
|
temperature
|
|
Temperature range (-10 ° C or less without correction quasi )
|
-20 °C~+250 °C (-4 °F～+482 °F)
|
|
Accuracy
|
± 5 °C or 5% (whichever is greater)
|
|
|
Imaging performance
|
|
Field of view angle
|
23°×17°
|
|
Spatial resolution (IFOV)
|
2.5 mRad
|
|
Minimum focus distance
|
Infrared: 15 cm (6 in)
Visible light: 46 cm (18 in)
|
|
Focus
|
Manual
|
|
Video frequency
|
9 Hz refresh rate
|
|
Detector type
|
160 × 120 focal plane array, uncooled microbolometer
|
|
Infrared lens type
|
20 mm F = 0.8 lens
|
|
Thermal sensitivity (NETD)
|
≤ 0.2 °C @ 30 °C (200 mK)
|
|
Infrared band
|
7.5 μm～14 μm
|
|
Visible light camera
|
640 × 480 resolution
|
|
|
Image display
|
|
Color palette
|
Iron red, rainbow color, high contrast and gray
|
|
Strength and span
|
Intensity and span automatically or manually smoothly zoom
|
|
Minimum span (manual mode)
|
5 °C (9 °F)
|
|
Minimum span (automatic mode)
|
10 °C (18 °F)
|
|
Minimum span (automatic mode)
|
Full infrared or picture-in-picture
|
|
Picture in Picture (PIP)
|
100% infrared image displayed in the center 320 × 240 pixel area
|
|
Full screen (close PIP)
|
100% infrared image is displayed in the center 6400 × 480 pixel area
|
|
|
Image and data storage
|
|
Storage medium
|
SD memory card, can save at least 1200 IR-Fusion images in .IS2 format and link visible images, or 3000 basic infrared images in .bmp format
|
|
file format
|
Non-radiation (.bmp) or total radiation (.is2)
non-radiation (.bmp) image files do not require analysis software
|
|
Use Smart View ? Software export file formats
|
JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF and EMF
|
|
