产品简介：
Fluke TiS60 红外热像仪，FLK-TIS60热像仪分辨率 260x195具备采用 IR-Fusion® 技术的高精度图像融合功能，以 260x195 的分辨率获得Z大像素性能优质图像，与 3.0 英寸 LCD 屏幕相比，使用 3.5 英寸 320x240 LCD 屏幕进行检查可获得多出 33% 的查看面积，通过专有的 IR-Fusion® 融合和 PIP 模式快速找出问题 – 捕捉所需细
产品详情：

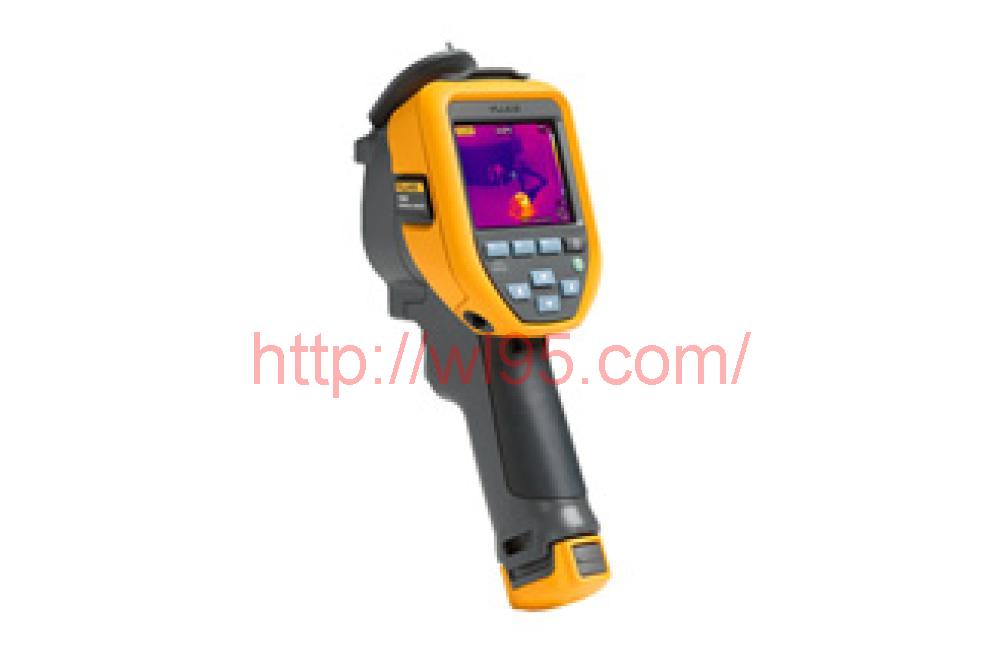

Fluke TiS60 红外热像仪，FLK-TIS60热像仪
使用固定焦距的 TiS60 红外热像仪快速识别问题 - 分辨率为 260x195，具备采用 IR-Fusion? 技术的高精度图像融合功能。
轻松查看细节，像素提高 2.51 倍。
随时随地安全存储并管理您的图像2
通过 Fluke Connect? 节省时间并提高现场生产力
TiS60 红外热像仪产品特点：
TiS60 红外热像仪技术参数：
| 主要特性 | |
| IFOV（空间分辨率） | 2.4 mRad |
| 探测器分辨率 | 260x195 |
| 视场角 | 35.7 ° x 26.8 ° |
| 距离与光点尺寸比 | 417:1 |
| 无线连接 | 有 |
| 兼容 Fluke Connect? 应用程序 | 是（如有提供） |
| IR-Fusion? 技术 | |
| AutoBlend? 模式 | 5 个预设值（0%、25%、50%、75%、100%） |
| 画中画 (PIP) | 5 个预设值（0%、25%、50%、75%、100%） |
| 对焦系统 | 固定焦距，zui小焦距 0.45 m (1.5 ft) |
| 加固显示屏 | 3.5 英寸（横向）320 x 240 LCD |
| 适用于单手使用的舒适耐用设计 | 有 |
| 热敏度 (NETD) | 30 °C 目标温度时，≤ 0.08 °C (80 mK) |
| 温度测量范围（-10°C 以下未校准） | -20 °C 至 +550 °C(-4 °F 至 1022 °F) |
| 水平和跨度 | 顺畅的自动和手动缩放 |
| 在手动与自动模式之间快速自动切换 | 有 |
| 手动模式下的快速自动重新调节 | 有 |
| zui小跨度（手动模式下） | 2.5 °C |
| zui小跨度（自动模式下） | 5 °C |
| 内置数字照相机（可见光） | 5 MP |
| 帧频 | 9 Hz |
| 激光指针 | 有 |
| 数据存储和图像捕捉 | |
| 扩展的 SD 存储系统 | 内置 4GB 存储卡和 4GB 可插拔微型 SD 卡 |
| 图像捕捉、查看、保存机制 | 单手图像捕捉、查看和保存功能 |
| 图像文件格式 |
非辐射测量 (.bmp) 或 (.jpeg) 或全辐射测量 (.is2)； 非辐射测量（.bmp、.jpg）文件无需使用分析软件 |
| 即刻上传 | 使用 Wifi 连接即刻将捕获的图像上传到 Fluke Connect 服务器 |
| 内存查看 | 缩略图查看 |
| 软件 | SmartView? 软件 - 全面分析和报告软件及 Fluke Connect?（如有提供） |
| 使用 SmartView? 软件导出文件的格式 | BMP、DIB、GIF、JPE、JFIF、JPEG、JPG、PNG、TIF 及 TIFF |
| 语音附注 | 是，蓝牙耳机（单独出售） |
| IR-PhotoNotes? | 是（3 个图像） |
| 标准视频录制 | 有 |
| 辐射测量法视频录制 | 有 |
| 视频文件格式 | 非辐射（MPEG 编码 .AVI)和全辐射 (.IS3) |
| 流化视频（远程显示） | 有 |
| 电池 | |
| 电池（可现场更换、可充电） | 两块锂离子智能电池组，通过五格 LED 显示来指示电量水平 |
| 电池使用时间 | 4 小时以上 |
| 电池充电时间 | 2.5 小时完全充电 |
| 电池充电系统 | 双座电池充电器或在热像仪内充电 |
| 交流电工作 | 通过随附电源（100 VAC 至 240 VAC，50/60 Hz）使用交流电工作 |
| 温度测量 | |
| 精度 | ±2 °C 或 2% （在标称温度 25 °C 下，取较大数值） |
| 屏显发射率校正 | 是（数值和表格） |
| 屏显反射背景温度补偿 | 有 |
| 屏显传输校正 | 有 |
| 调色板 | |
| 标准调色板 | 8：铁红色、蓝红色、高对比度、琥珀色、反相琥珀色、液态金属色、灰阶、反相灰阶 |
| Ultra Contrast? 调色板 | 8：超铁红色、超蓝红色、超高对比度、超琥珀色、超反相琥珀色、超液态金属色、超灰阶、超反相灰阶 |
| 通用技术指标 | |
| 颜色报警（温度报警） | 高温、低温、等温线 |
| 红外光谱带 | 7.5 μm 至 14 μm |
| 操作温度 | -10 °C 至 +50 °C（14 °F 至 122 °F） |
| 存放温度 | -20 °C 至 +50 °C（-4 °F 至 122 °F） |
| 相对湿度 | 10% 至 95%，非冷凝 |
| 中心点温度测量 | 有 |
| 点温度 | 有 |
| 用户可定义点标记 | 3 |
| 中间框 | 可扩展/收缩的测量箱，具有 MIN-AVG-MAX（低-中-高）三档温度 |
| 安全标准 | EN 61010-1：非 CAT、污染等级 2、EN 60825-1：2 类、EN 60529、EN 62133（锂电池） |
| 电磁兼容性 | EN 61326-1:2006、EN 55011： A 类、EN 61000-4-2、EN 61000-4-3 |
| C Tick | IEC/EN 61326-1 |
| US FCC | EN61326-1、FCC 第 5 部分、EN 55011 A 类、EN 61000-4-2、EN 61000-4-3 |
| 振动与冲击 | 2G、IEC 68-2-6 和 25G、IEC 68-2-29 |
| 掉落 | 可承受 2 米（6.5 英尺）的掉落冲击 |
| 尺寸（高 x 宽 x 长） | 26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in) |
| 重量（含电池） | 固定焦距 .72 kg (1.6 lb)、手动对焦 .77 kg (1.7 lb) |
| 壳体防护等级 | IP54（防尘封口保护，*防水） |
| 保修期 | 两年（标准），也可延长保修 |
| 建议的校准周期 | 两年（假定正常操作和老化） |
| 支持的语言 | 捷克语、荷兰语、英语、芬兰语、法语、德语、匈牙利语、意大利语、日语、朝鲜语、波兰语、葡萄牙语、俄语、简体中文、西班牙语、瑞典语、繁体中文和土耳其语 |
TiS60 红外热像仪标准附属配件:
| 型号名称 | 描述 |
| FLK-TiS60 |
包括：
|
TiS60 红外热像仪可选附属备件：
| Thermal Imaging Accessories | |
| FLK-TRIPOD3 | 三脚架安装底座 |
| 电池，充电器和适配器 | |
| FLK-TI-SBC3B | Ti-SBP3 锂离子充电电池组充电座。适用型号：TiS65、TiS60、TiS55、TiS50、TiS40、TiS45、TiS20、TiS10、TiX560、TiX520、Ti400、Ti300、Ti200、Ti125、Ti110、Ti105、Ti100、Ti95、Ti90、TiR125、TiR110、TiR105、Ti32、TIR32、Ti29、TiR29、Ti27 和 TiR27。 |
| FLK-TI-SBP3 | TiS65、TiS60、TiS55、TiS50、TiS40、TiS45、TiS20、TiS10、Ti400、Ti300、Ti200、Ti125、Ti110、Ti105、Ti100、TiR125、TiR110、TiR105、Ti32、Ti29 和 Ti27 红外热像仪的额外电池组。 |
| TI-CAR CHARGER | 车载充电器 |
Product introduction:
Fluke TiS60 infrared thermal imager, FLK-TIS60 thermal imager has a resolution of 260x195 with a high-precision image fusion function using IR-Fusion® technology to obtain high-quality images with Z-large pixel performance at a resolution of 260x195, compared with a 3.0-inch LCD screen , Using a 3.5-inch 320x240 LCD screen for inspection can obtain 33% more viewing area, and quickly find out the problem through the proprietary IR-Fusion® fusion and PIP mode-capture the required details
Product Details:
Fluke TiS60 thermal imager, FLK-TIS60 thermal imager
Use a fixed focal length TiS60 thermal imaging camera to quickly identify problems-with a resolution of 260x195 and high-precision image fusion using IR-Fusion? technology.
Easily view details, and the pixels are increased by 2.51 times.
Safely store and manage your images anytime, anywhere 2
Save time and increase field productivity with Fluke Connect?
Features of TiS60 Thermal Imaging Camera:
Technical parameters of TiS60 thermal imaging camera:
| Main features | |
| IFOV (spatial resolution) | 2.4 mRad |
| Detector resolution | 260x195 |
| Field of view | 35.7 ° x 26.8 ° |
| Distance to spot size ratio | 417:1 |
| Wireless connections | Have |
| Compatible with Fluke Connect? App | Yes (if provided) |
| IR-Fusion? Technology | |
| AutoBlend? mode | 5 preset values (0%, 25%, 50%, 75%, 100%) |
| Picture in Picture (PIP) | 5 preset values (0%, 25%, 50%, 75%, 100%) |
| Focus system | Fixed focal length, minimum focal length 0.45 m (1.5 ft) |
| Reinforced display | 3.5 inch (landscape) 320 x 240 LCD |
| Comfortable and durable design suitable for one-handed use | Have |
| Thermal sensitivity (NETD) | At 30 °C target temperature, ≤ 0.08 °C (80 mK) |
| Temperature measurement range (no calibration below -10°C) | -20 °C to +550 °C (-4 °F to 1022 °F) |
| Level and span | Smooth automatic and manual scaling |
| Quickly and automatically switch between manual and automatic modes | Have |
| Fast automatic readjustment in manual mode | Have |
| Small span (in manual mode) | 2.5 °C |
| Small span (in automatic mode) | 5 °C |
| Built-in digital camera (visible light) | 5 MP |
| Frame rate | 9 Hz |
| Laser pointer | Have |
| Data storage and image capture | |
| Extended SD storage system | Built-in 4GB memory card and 4GB removable micro SD card |
| Image capture, view, and save mechanism | One-handed image capture, view and save function |
| Image file format |
Non-radiation measurement (.bmp) or (.jpeg) or total radiation measurement (.is2); non-radiation measurement (.bmp, .jpg) files do not require analysis software |
| Upload now | Use Wifi connection to instantly upload captured images to Fluke Connect server |
| Memory view | Thumbnail view |
| software | SmartView? Software-Comprehensive analysis and reporting software and Fluke Connect? (if provided) |
| Use SmartView? Software export file format | BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF and TIFF |
| Voice notes | Yes, Bluetooth headset (sold separately) |
| IR-PhotoNotes? | Yes (3 images) |
| Standard video recording | Have |
| Radiometry video recording | Have |
| Video file format | Non-radiation (MPEG encoding.AVI) and full radiation (.IS3) |
| Streaming video (remote display) | Have |
| battery | |
| Battery (replaceable on site, rechargeable) | Two lithium-ion smart battery packs, indicating the power level through a five-segment LED display |
| Battery life | 4 hours or more |
| Battery charging time | 2.5 hours full charge |
| Battery charging system | Two-seater battery charger or charging in the camera |
| AC work | Operates on AC power through the included power supply (100 VAC to 240 VAC, 50/60 Hz) |
| Temperature measurement | |
| Precision | ±2 °C or 2% (under the nominal temperature of 25 °C, whichever is greater) |
| On-screen emissivity correction | Yes (values and tables) |
| On-screen reflected background temperature compensation | Have |
| Screen display transmission correction | Have |
| Color palette | |
| Standard palette | 8: Iron red, blue-red, high contrast, amber, inverted amber, liquid metal, grayscale, inverted grayscale |
| Ultra Contrast? Palette | 8: Super iron red, super blue red, super high contrast, super amber, super reverse amber, super liquid metal, super gray scale, super reverse gray scale |
| General technical indicators | |
| Color alarm (temperature alarm) | High temperature, low temperature, isotherm |
| Infrared band | 7.5 μm to 14 μm |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) |
| Relative humidity | 10% to 95%, non-condensing |
| Center point temperature measurement | Have |
| Point temperature | Have |
| User definable point mark | 3 |
| Middle frame | Expandable/retractable measuring box with MIN-AVG-MAX (low-medium-high) three temperature ranges |
| safety standard | EN 61010-1: Non-CAT, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery) |
| Electromagnetic compatibility | EN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3 |
| C Tick | IEC/EN 61326-1 |
| US FCC | EN61326-1, FCC Part 5, EN 55011 Class A, EN 61000-4-2, EN 61000-4-3 |
| Vibration and shock | 2G, IEC 68-2-6 and 25G, IEC 68-2-29 |
| Drop | Can withstand a drop of 2 meters (6.5 feet) |
| Dimensions (height x width x length) | 26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in) |
| Weight (including battery) | Fixed focal length. 72 kg (1.6 lb), manual focus. 77 kg (1.7 lb) |
| Shell protection level | IP54 (dust-proof sealing protection, *waterproof) |
| warranty period | Two years (standard), warranty can also be extended |
| Recommended calibration period | Two years (assuming normal operation and aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
TiS60 thermal imaging camera standard accessories:
| Model Name | description |
| FLK-TiS60 |
include:
|
Optional accessories for TiS60 thermal imaging camera:
| Thermal Imaging Accessories | |
| FLK-TRIPOD3 | Tripod mounting base |
| Battery, charger and adapter | |
| FLK-TI-SBC3B | Ti-SBP3 Li-ion rechargeable battery pack charging stand. Applicable models: TiS65, TiS60, TiS55, TiS50, TiS40, TiS45, TiS20, TiS10, TiX560, TiX520, Ti400, Ti300, Ti200, Ti125, Ti110, Ti105, Ti100, Ti95, Ti90, TiR125, TiR110, TiR105, Ti32, TIR32 , Ti29, TiR29, Ti27 and TiR27. |
| FLK-TI-SBP3 | Additional battery packs for TiS65, TiS60, TiS55, TiS50, TiS40, TiS45, TiS20, TiS10, Ti400, Ti300, Ti200, Ti125, Ti110, Ti105, Ti100, TiR125, TiR110, TiR105, Ti32, Ti29 and Ti27 thermal imaging cameras. |
| TI-CAR CHARGER |
Car charger |
