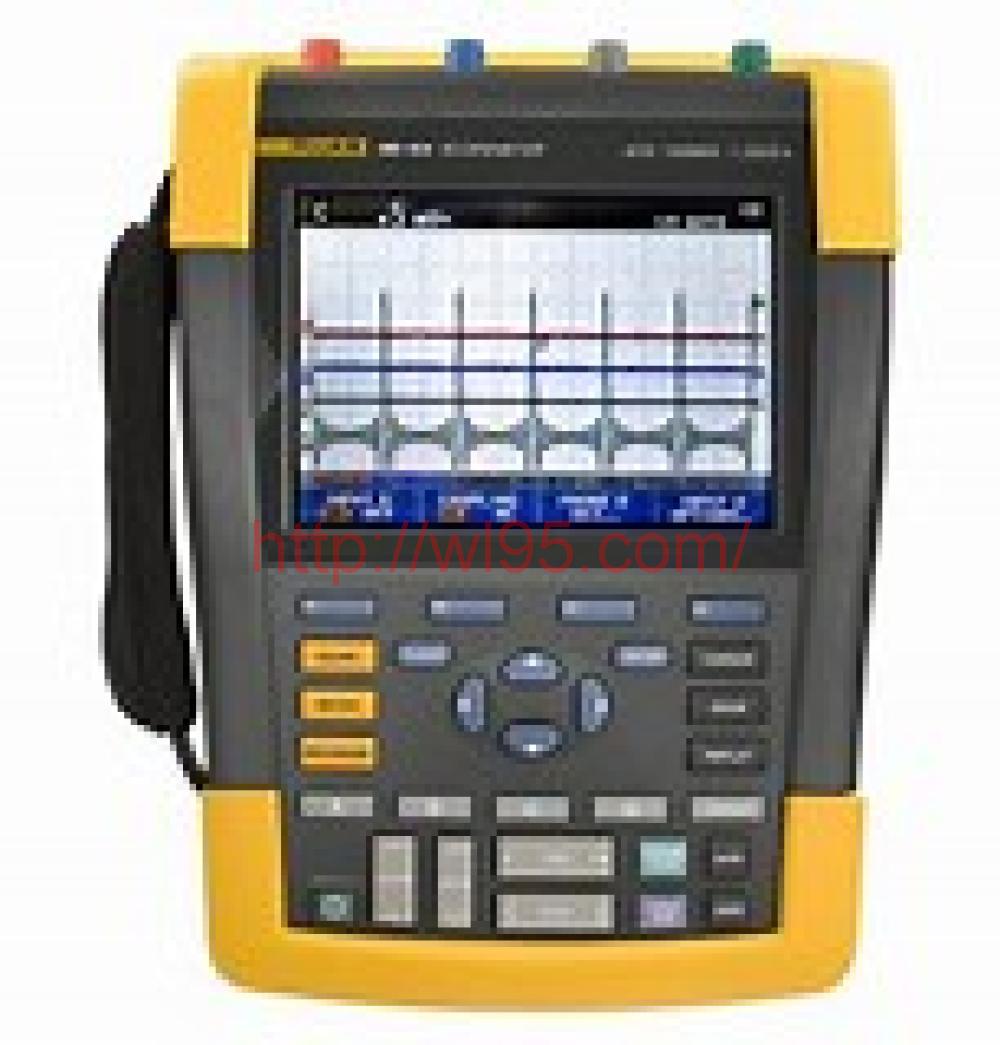

Fluke 190-104 / S –ScopeMeter®测试工具创新20年

作为首款四通道便携式示波器安全等级CAT III 1000 V / CAT IV 600 V，Fluke ScopeMeter 190-104 / S结合了前所未有的性能，坚固性和便携性，并具有100 MHz带宽和实时采样率以1.25 GS / s和200 ps的分辨率捕获噪声和其他干扰。该模型具有深存储器，每个通道最多可存储10,000个样本。因此，您可以详细检查非常小的波形部分，并且其IP-51等级可承受灰尘，水滴，湿气和宽广的温度变化。Fluke ScopeMeter测试工具是手持式电池供电的，旨在满足现场服务专业人员的需求。



获得Diagnostic Power Plus CAT IV安全等级的四倍

Fluke ScopeMeter 190-104 / S便携式示波器是双绝缘四通道浮动示波器，其安全等级适用于CAT III 1000 V / CAT IV 600 V环境中的测量。

工业系统的三维测试

同时检查输入信号，输出反馈回路或安全互锁，以发现一系列问题，包括：

• 电路电压/电流过载
• 信号时序测量和同步问题
• 衰减/输入阻抗不匹配
• 信号波动/漂移

用于诊断VSD，功率逆变器和转换器的三相测试

• 测试三相电源输入处的谐波，瞬变和负载
• 对IGBT栅极或滤波器电路故障的DC / AC转换器进行故障排除
• 测试PWM输出的反射和瞬变或电压不平衡

安全测量从mV到kV

标准探头涵盖从mV到kV的广泛应用范围，为您从微电子到重型中压电气应用的任何情况做好准备。独立的隔离输入允许您在具有单独的接地参考的混合电路中进行测量，从而消除了意外接地短路的风险。

以市场上唯一的IP-51等级示波器应对最恶劣的条件

所有ScopeMeter便携式示波器坚固耐用，防震，专为恶劣环境而设计。密封的外壳可以保护它们免受灰尘，水蒸气，水滴，湿气和空气中污染物的侵害，从而确保每次需要时都可提供可靠，准确的性能。

内置万用表可快速方便地执行精确测量

内置数字万用表Fluke 190-104 / S 4通道型号通过4通道示波器BNC输入进行了四表测量。使用内置的5000计数数字万用表可以方便地从波形分析切换到精确的万用表测量。测量功能包括VDC，VAC，VAC + DC，电阻，连续性和二极管测试。使用合适的分流器，探头或具有多种比例系数的适配器测量电流和温度。

一次充电即可进行全班工作

新的高性能电池利用锂离子技术使您的身体保持长达七个小时的健康状态。借助方便操作的电池盖，您可以快速更换电池。

通过新的USB连接轻松捕获和共享波形

与测量输入电路电气隔离的两个USB端口为您提供了与PC或USB存储设备的便捷USB连接。将无限的波形，屏幕截图或仪器记录存储到USB存储设备。使用适用于Windows的FlukeView软件，连接到PC USB接口以传输和存档关键的测量数据。

通过连接和查看＆交易触发立即查看稳定的显示

Connect-and-View™通过识别信号模式自动设置正确的触发。无需触摸按钮，您几乎可以稳定，可靠且可重复地显示任何信号，包括电机驱动和控制信号。可以快速连续地快速测量几个测试点。

使用ScopeRecord™记录多达48小时的高分辨率波形

ScopeRecord存储器每个通道最多可存储30,000个数据点，可捕获间歇性和快速故障。（可以存储两组多通道记录，以供以后分析。）

• 存储事件，如运动曲线，UPS，电源和电动机启动
• 在触发停止模式下，ScopeMeter 190-104 / S自动识别电源故障并在其之前存储波形数据
• 通过波形缩放（最高100倍），您可以查看最小的细节，例如各个电源周期

使用TrendPlot™无纸记录仪最多记录22天，以发现间歇性故障

间歇性故障可能由不良的连接，灰尘，污垢，腐蚀或简单的接线或连接器断开引起。线路中断，跌落或启动和停止电机也会导致机器停止。Fluke ScopeMeter测试工具中的TrendPlot功能可通过以下方法帮助发现这些故障：

• 绘制长达22天的最小和最大峰值及平均值
• 绘制所有四个输入的电压，安培，温度，频率和相位的任意组合，全部带有时间和日期戳以查明故障

查看更多，用四通道CAT IV额定Fluke ScopeMeter修复更多

Fluke ScopeMeter 190-104 / S结合了最高的安全等级和坚固的便携性以及台式示波器的高性能。这些强大的ScopeMeter测试工具专为工厂维护工程师和技术人员设计，可在恶劣，肮脏和危险的工业条件下使用，以测试从微电子到电力电子应用的所有内容。

ScopeMeter 190-104 / S是您可以用来解决几乎所有故障排除任务的测试工具。它们包括万用表，TrendPlot™和ScopeRecord™卷式无纸记录仪模式以及通过Connect-and-View™触发的免提操作，以及更多：

• 四个电隔离输入
• CAT III 1000 V / CAT IV 600 V安全等级
• 100 MHz带宽模型
• 1.25 GS /秒
• 深度内存：每个通道10,000个采样波形捕获，因此您可以放大细节
• 通过示波器BNC输入进行四表测量
• 连接并查看连续自动触发，单发，脉冲宽度和视频触发
• ScopeRecord滚动模式，最多可捕获48小时的波形样本数据
• TrendPlot，趋势测量读数长达22天
• 高级自动测量，功率（Vpwm，VA，W，PF）和时间（mAs，V / s，w / s）
• IP-51防尘防滴，可承受恶劣环境
• 隔离的USB端口，用于存储设备和PC连接
• 锂离子电池可延长工作时间：长达7小时（标配BP291）
• 使用可选的外部电池充电器（EBC290）为备用电池充电
• 易于接近的电池盖，方便更换电池
• 方便的插槽，可使用标准的Kensington®锁在无人看管的情况下束缚和锁定示波器

获得Diagnostic Power Plus CAT IV安全等级的四倍

Fluke ScopeMeter 190-104 / S便携式示波器是双绝缘四通道浮动示波器，其安全等级适用于CAT III 1000 V / CAT IV 600 V环境中的测量。

工业系统的三维测试

同时检查输入信号，输出反馈回路或安全互锁，以发现一系列问题，包括：

• 电路电压/电流过载
• 信号时序测量和同步问题
• 衰减/输入阻抗不匹配
• 信号波动/漂移

用于诊断VSD，功率逆变器和转换器的三相测试

• 测试三相电源输入处的谐波，瞬变和负载
• 对IGBT栅极或滤波器电路故障的DC / AC转换器进行故障排除
• 测试PWM输出的反射和瞬变或电压不平衡

安全测量从mV到kV

标准探头涵盖从mV到kV的广泛应用范围，为您从微电子到重型中压电气应用的任何情况做好准备。独立的隔离输入允许您在具有单独的接地参考的混合电路中进行测量，从而消除了意外接地短路的风险。

以市场上唯一的IP-51等级示波器应对最恶劣的条件

所有ScopeMeter便携式示波器坚固耐用，防震，专为恶劣环境而设计。密封的外壳可以保护它们免受灰尘，水蒸气，水滴，湿气和空气中污染物的侵害，从而确保每次需要时都可提供可靠，准确的性能。

内置万用表可快速方便地执行精确测量

内置数字万用表Fluke 190-104 / S 4通道型号通过4通道示波器BNC输入进行了四表测量。使用内置的5000计数数字万用表可以方便地从波形分析切换到精确的万用表测量。测量功能包括VDC，VAC，VAC + DC，电阻，连续性和二极管测试。使用合适的分流器，探头或具有多种比例系数的适配器测量电流和温度。

一次充电即可进行全班工作

新的高性能电池利用锂离子技术使您的身体保持长达七个小时的健康状态。借助方便操作的电池盖，您可以快速更换电池。

通过新的USB连接轻松捕获和共享波形

与测量输入电路电气隔离的两个USB端口为您提供了与PC或USB存储设备的便捷USB连接。将无限的波形，屏幕截图或仪器记录存储到USB存储设备。使用适用于Windows的FlukeView软件，连接到PC USB接口以传输和存档关键的测量数据。

通过连接和查看＆交易触发立即查看稳定的显示

Connect-and-View™通过识别信号模式自动设置正确的触发。无需触摸按钮，您几乎可以稳定，可靠且可重复地显示任何信号，包括电机驱动和控制信号。可以快速连续地快速测量几个测试点。

使用ScopeRecord™记录多达48小时的高分辨率波形

ScopeRecord存储器每个通道最多可存储30,000个数据点，可捕获间歇性和快速故障。（可以存储两组多通道记录，以供以后分析。）

• 存储事件，如运动曲线，UPS，电源和电动机启动
• 在触发停止模式下，ScopeMeter 190-104 / S自动识别电源故障并在其之前存储波形数据
• 通过波形缩放（最高100倍），您可以查看最小的细节，例如各个电源周期

使用TrendPlot™无纸记录仪最多记录22天，以发现间歇性故障

间歇性故障可能由不良的连接，灰尘，污垢，腐蚀或简单的接线或连接器断开引起。线路中断，跌落或启动和停止电机也会导致机器停止。Fluke ScopeMeter测试工具中的TrendPlot功能可通过以下方法帮助发现这些故障：

• 绘制长达22天的最小和最大峰值及平均值
• 绘制所有四个输入的电压，安培，温度，频率和相位的任意组合，全部带有时间和日期戳以查明故障

Fluke 190-104/S – 20 years of ScopeMeter® Test Tool Innovation

As the first four-channel portable scope safety rated CAT III 1000 V / CAT IV 600 V, the Fluke ScopeMeter 190-104/S combines an unprecedented level of performance, ruggedness, and portability with 100 MHz bandwidth and real-time sampling rates up to 1.25 GS/s and 200 ps resolution to capture noise and other disturbances. This model features deep memory up to 10,000 samples per channel; so you can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter test tools are hand-held battery operated, designed to meet the demands of field service professionals.

Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating

The Fluke ScopeMeter 190-104/S portable scope is double-insulated four-channel floating oscilloscopes safety rated for measurements in CAT III 1000 V/CAT IV 600 V environments.

Three-dimensional testing for industrial systems

Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:

• Circuit voltage/current overloading
• Signal timing measurements and synchronization issues
• Attenuation/input impedance mismatch
• Signal fluctuation/drift

Three-phase testing for diagnosing VSD, power inverters, and converters

• Test for harmonics, transients and loads at the three-phase power input
• Troubleshoot DC to AC converters for faulty IGBT gates or filter circuits
• Test PWM output for reflections and transients or voltage unbalance

Safely measure from mV to kV

Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.

Take on the harshest conditions with the only IP-51-rated Scope on the Market

Rugged and shock-proof, all ScopeMeter portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants ensuring reliable accurate performance every time you need them.

Built in multimeter to quickly and conveniently perform precise measurements

Built-in digital multimeter Fluke 190-104/S 4-channel models incorporate quad meter measurements via the 4-channel scope BNC inputs. Conveniently switch from waveform analysis to precise multimeter measurements using the built in 5000 count digital multimeter. Measurement functions include VDC, VAC, VAC + DC, resistance, continuity and diode test. Measure current and temperature using suitable shunt, probe or adapter with wide range of scaling factors.

Work a Full Shift on a Single Charge

New high-performance batteries take advantage of Li-ion technology to keep you going strong for up to seven hours. And with the easy-access battery door you can make battery swaps fast.

Capture and Share Waveforms Easily with New USB connectivity

Two USB ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument steups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.

See a Stable Display Instantly with Connect-and-View&trade Triggering

Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.

Record Up to 48 Hours of High-Resolution Waveforms with ScopeRecord™

ScopeRecord memory stores up to 30,000 data points per channel, capturing intermittents and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)

• Stores events like motion profiles, UPS, power supply, and motor start-ups
• With the Stop-on-Trigger mode, the ScopeMeter 190-104/S automatically recognizes a power failure and stores the waveform data preceding it
• With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles

Record up to 22 days with TrendPlot™ paperless recorder to find intermittent faults

Intermittent faults can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, sags, or starting and stopping a motor can also cause a machine to stop. The TrendPlot function in the Fluke ScopeMeter test tool helps find those faults by:

• Plotting minimum and maximum peak values and average over time up to 22 days
• Plotting any combination of voltages, amps, temperature, frequency and phase for all four inputs, all with time and date stamp to pinpoint faults

See More, Fix More with the Four-Channel CAT IV Rated Fluke ScopeMeter

The Fluke ScopeMeter 190-104/S combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter test tools go into harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.

The ScopeMeter 190-104/S is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:

• Four electrically isolated inputs
• CAT III 1000 V / CAT IV 600 V safety rated
• 100 MHz bandwidth model
• 1.25 GS/s
• Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
• Quad meter measurements via scope BNC inputs
• Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
• ScopeRecord roll mode, capture waveform sample data for up to 48 hours
• TrendPlot, trend measurement readings for up to 22 days
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• IP-51 rated for dust and drip proof to withstand harsh environments
• Isolated USB ports for memory devices and PC connectivity
• Li-Ion battery for extended operating timespan: up to 7 hours (BP291 included standard)
• Charge spare battery using optional external battery charger (EBC290)
• Easy-access battery door to make it easy to swap batteries
• A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock
