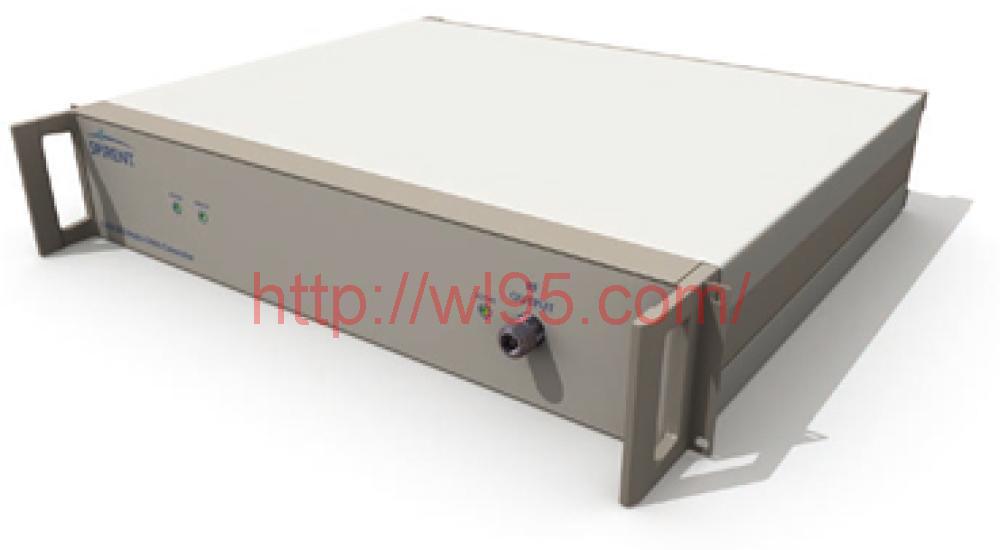

GSS6300M是一款理想的入门级多通道GNSS卫星信号模拟器，适用于产品测试环境和接收机集成测试。配备24个通道，可模拟来自GPS/SBAS、BeiDou、GLONASS及Galileo的L1/E1信号，GSS6300M可用于测试所有GNSS设备的基本定位功能。
GSS6300M GNSS 信号发生器每个星座可配置8个通道。现有的GSS6300M增加GLONASS和/或Galileo测试性能可容易地实现现场升级。典型配置包括：
● 仅GPS ，仅GLONASS，仅 BeiDou ，仅Galileo
● GPS + GLONASS
● GPS + BeiDou
● GPS + Galileo
● GPS + GLONASS + BeiDou
● GPS + GLONASS + Galileo
在自动运行时，GSS6300M可与相关设备进行同步并由运行有的SimCHAN™软件的计算机，通过Ethernet、 IEEE-488(GPIB)或RS232端口远程控制。SimCHAN™软件和GSS6300M一起实现实时控制，用户可创建场景，并且修改诸如用户位置、日期与时间等参数。
GSS6300M运行在GSS6300单通道模式时，与GSS6300形式相同，并使用相同的远程控制命令集。
现有的GSS6300可通过一个升级包现场升级为多通道的GSS6300M。
主要特性
● 多通道GPS/SBAS L1 C/A和/或GLONASS L1 C/A 和/或 BeiDou-2和/或Galileo E1
● 仿真GPS/SBAS、BeiDou、GLONASS、Galileo各星座卫星三维坐标
● IEEE-488、USB或RS232控制接口
● 标配Spirent SimCHAN™ 控制软件
● 业界领先的精度、保真度及可靠性
● 完善的远程控制命令集便于ATE集成
● 机架式2U机箱
● 支持在架年度检校
● 实时控制各项测试参数，包括功率电平、用户位置、日期、时间、大气条件、多普勒、PRN码及数据信息。
● 支持与外部设备同步，具备时钟输入/输出，1PPS输入/输出及触发信号输入接口
● 向下兼容GSS6300单通道工作模式
GSS6300M is an ideal entry-level multi-channel GNSS satellite signal simulator, suitable for product test environment and receiver integration test. Equipped with 24 channels, it can simulate L1/E1 signals from GPS/SBAS, BeiDou, GLONASS and Galileo. GSS6300M can be used to test the basic positioning functions of all GNSS devices.
GSS6300M GNSS signal generator can be configured with 8 channels per constellation. The existing GSS6300M can be easily upgraded on-site by adding GLONASS and/or Galileo test performance. Typical configurations include:
● GPS only, GLONASS only, BeiDou only, Galileo only
● GPS + GLONASS
● GPS + BeiDou
● GPS + Galileo
● GPS + GLONASS + BeiDou
● GPS + GLONASS + Galileo
In automatic operation, GSS6300M can be synchronized with related equipment and remotely controlled by a computer running SimCHAN™ software through Ethernet, IEEE-488 (GPIB) or RS232 port. SimCHAN™ software and GSS6300M realize real-time control together. Users can create scenes and modify parameters such as user location, date and time.
When GSS6300M runs in GSS6300 single-channel mode, it has the same form as GSS6300 and uses the same remote control command set.
The existing GSS6300 can be upgraded to the multi-channel GSS6300M on site through an upgrade package.
Main features
● Multi-channel GPS/SBAS L1 C/A and/or GLONASS L1 C/A and/or BeiDou-2 and/or Galileo E1
● Simulation of GPS/SBAS, BeiDou, GLONASS, Galileo satellite three-dimensional coordinates
● IEEE- 488, USB or RS232 control interface
● Standard Spirent SimCHAN™ control software
● Industry-leading precision, fidelity and reliability
● Complete remote control command set for easy ATE integration
● Rack-mount 2U chassis
● Support annual inspection and calibration
● Real-time control of various test parameters, including power level, user location, date, time, atmospheric conditions, Doppler, PRN code and data information.
● Support synchronization with external devices, with clock input/output, 1PPS input/output and trigger signal input interface
● Backward compatible with GSS6300 single-channel working mode
