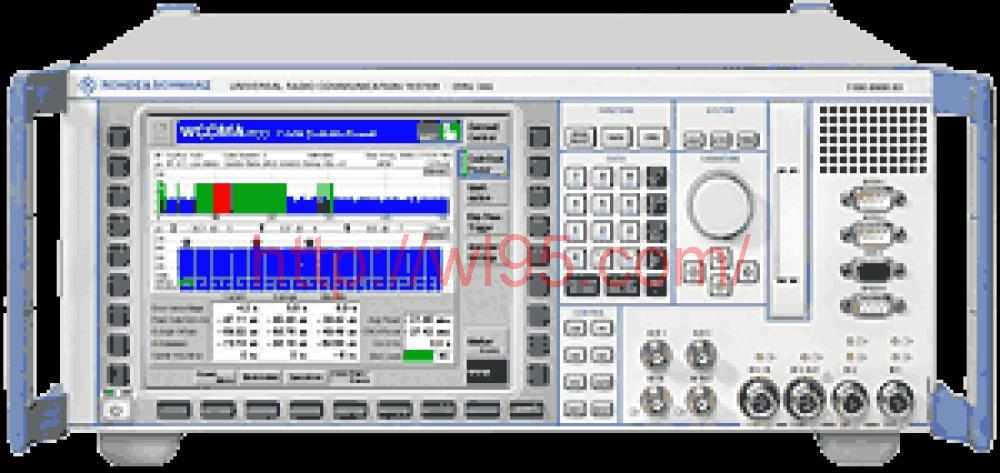

The R&S CMU300 Universal Radio Communication Tester is a unique solution that combines high-speed, high-accuracy RF parametric testing with layer 1 signaling procedures.
Highlights
-
Extremely high-speed testing
-
Highly accurate measurements
-
Modular future-proof design
-
Comprehensive spectrum analyzer and signal generator
-
Layer 1 realtime processing
OPTIONS AT ADDITIONAL COST:
-
1R Rack mount Adapter ZZA-94
-
B11 HW-option for CMU200: Reference oscillator OXCO, aging 2 X 10E-7/year
-
B12 HW-option for CMU200/300: Reference oscillator OXCO, aging 3.5x10E-8/year
-
B15 HW-option for CMU200/300: Additional RF connections
-
B17 HW-option for CMU200: IQ/IF interface, analog, one channel
-
B21 HW-option for CMU300: Signalling Unit (GSM/GPRS/EDGE)
-
B52 HW-option for CMU200: Speech codec
-
B71 HW-option for CMU300: ABIS interface unit E1/T1 protocol CMU-B21 + CMU-K3X required
-
B78 HW-option for CMU300: Layer1 board for WCDMA
-
BAT1 Battery Test Software for CMU200 v 02. Requires K92/K96 with bands GSM850+1900 and WCDMA bands II+V
-
C3 Three years of depot calibration
-
C5 Five years of calibration coverage
-
D1 Calibration Data Report
-
DCV-2 Documentation of calibration values
-
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
-
DKD CMU200/300 DKD (ISO17025) calibration including ISO 9000 calibration (order only with device)
-
K30 SW-option for CMU300: GSM400 for CMU-B21
-
K31 SW-option for CMU300: GSM900 for CMU-B21
-
K32 SW-option for CMU300: GSM1800 for CMU-B21
-
K33 SW-option for CMU300: GSM1900 for CMU-B21
-
K34 SW-option for CMU300: GSM850 for CMU-B21
-
K35 EDGE FOR GSM
-
K36 SW-option for CMU300: GSM GT800 for CMU-B21
-
K37 SW-option for CMU300: AMR testing (GSM) CMU-K31 - K36 required
-
K38 SW-option for CMU300: Signalling channels (GSM/UL) with PSR Bit pattern modulation
-
K39 SW-option for CMU300: MOC/MTC(circ. switched/TCH) CMU-K31 to -K36 required
-
K41 SW-extension for CMU300: 8PSK TX-tests and channel coders, CMU-K31 - K36 required
-
K70 SW-option for CMU300: DTCH BER analysis (3GPP/FDD/DOWNLINK) (CMU-K78 required)
-
K71 SW-option for CMU300: RACH testing (3GPP/FDD) (CMU-K78 required)
-
K72 SW option for CMU300 : HS-SCCH monitor and HSDPA throughputmeasurement (CMU-K78 required)
-
K73 SW option for CMU300 : HSDPA uplink stimulation (CMU-K72 and CMU-K78 required)
-
K75 SW-option for CMU300 WCDMA TX test (3GPP/FDD/DL)
-
K76 SW-option for CMU300: WCDMA-generator (3GPP/FDD/UL) (CMU-B78 required)
-
K77 SW-option for CMU300: AWGN generator and BER/BLER simulator (3GPP/FDD/UL)
-
K78 SW-option for CMU300: BCH-synchronisation and monitoring (3GPP/FDD)
-
K79 SW-option for CMU300: HSDPA-TX-measurements (nonsig) (3GPP/FDD/DL)
-
K849 SW OPTION for CMU200: 1xEV-DO Signalling, Cellular Band (requires CMU-B83/V22, CMU-B89)
-
K859 SW OPTION for CMU200: 1xEV-DO Signalling, PCS Band (requires CMU-B83/V22, CMU-B89)
-
K869 SW OPTION for CMU200: 1xEV-DO Signalling, IMT-2000 Band (requires CMU-B83/V22, CMU-B89)
-
K90 SW option for CMU200: A-GPS C-Plane interface for 2G/3G/C2k including control application. (Only to be ordered if cust. already has ATE dongle)
-
PK30 SW option for CMU300 : GSM 850 + 900 + 1800 + 1900 (includes K30 - K36)
-
PK800 SW Package for CMU200:1xEV-DO Signalling 450MHz, Cellular, PCS, IMT-2000 BANDS (requires CMU-B83/V22, CMU-B89)
-
R3 Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
-
R5 Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
-
U10 HW modification for CMU200/300 Memory extension 256MB for speed improvement, CMU with FMR5 and FMR5+
-
U21 Modification kit for CMU200: Modification CMU-B21/V02 to CMU-B21/V14 incl. CMU-B54
-
U63 HSUPA Non Signalling for CMU200 V10/V30 (At R&S service only)
-
U74 Upgrade-kit for CMU300: High dynamic WCDMA spectrum measurements
-
U75 Upgrade kit for CMU300 measurement DSP module for WCDMA
-
U78V2 Upgrade kit for CMU300: Layer1 analyzer board for WCDMA DL-RX; upgrade of CMU-B76 to -B78
-
U78V4 Upgrade kit for CMU300: Layer1-Board for WCDMA
-
Z1 256 MB memory card PCMCIA type 3, accessory for CMU200/300
-
Z11 Shielded cover for CMU-Z10
-
Z12 Additional Bluetooth Antenna (for CMU-Z10, excludes CMU-Z14)
-
Z13 Accessory for CMU-Z10: USB2.0 feed through (excludes CMU-Z12 and CMU-Z14 if
-
Z3 Accessory for CMU200/300: Service kit
-
Z6 CMU200/300 accessory: Enhancement of wideband modulation analysis for CMU
