描述

• MSO54 5-BW-1000：1 GHz（可升级到2 GHz）
• 四（4）个FlexChannel输入，每个输入可显示1个模拟或8个数字信号
• 采样率：6.25 GS / s
• 记录长度：62.5 M
• 15.6英寸高清显示屏，带电容触摸
• 12位模数转换器，具有高达16位的增强分辨率
• 可选的任意/函数发生器
• 可选的Windows操作系统

为性能，分析和整体用户体验
树立新标准MSO54具有创新的捏合缩放触摸屏用户界面，业内最大的高清显示屏以及4个FlexChannel™输入，可让您测量一个模拟或四个数字信号。

更高的采样率和更长的记录长度

MSO54 5系列MSO提供了数字通道集成的新水平。数字通道共享相同的高采样率（高达6.25 GS / s）以实现精细的定时分辨率，并具有长记录长度（高达125 Mpoints）以长时间捕获与模拟通道。上一代MSO需要权衡，数字通道的采样率或记录长度比模拟通道低。

FlexChannel™技术可实现最大的灵活性并具有更广泛的系统可视性
FlexChannel技术可将仪器上的每个输入用作单个模拟通道或八个数字通道。只需将TLP058逻辑探头连接到任何输入即可完成转换。想象一下它提供的灵活性和可配置性。

FlexChannel技术：每个通道可以是单个模拟或8数字输入
MSO54可以配置为查看四个模拟和零数字信号。或三个模拟和八个数字。或两个模拟和16个数字，1个模拟和24个数字等等。您可以随时通过简单地添加或删除TLP058逻辑探头来更改配置，因此您始终拥有正确数量的数字通道。

专为触摸
而设计的用户界面5系列MSO的15.6英寸显示器包括一个电容式触摸屏，并提供了业界首个真正为触摸而设计的示波器用户界面。您在手机和平板电脑上使用的触摸互动以及在支持触摸的设备中所期望的互动在5系列MSO中受支持。

• 向左/向右或向上/向下拖动波形以调整水平和垂直位置或平移缩放视图
• 捏合并扩展以在水平或垂直方向上更改比例或放大/缩小
• 将项目拖到垃圾箱以将其删除
• 从右侧向内轻扫以显示结果栏，或从顶部向下滑动以访问显示屏左上角的菜单

体验性能差异
MSO54具有高达2 GHz的模拟带宽，6.25 GS / s的采样率，标准的62.5 M记录长度和12位模数转换器（ADC），可提供您捕获最佳波形所需的性能。可能的信号保真度和分辨率，可查看小的波形细节。

MSO54随附：四（4）个无源探头（具有350 MHz和500 MHz型号的TPP0500B，具有1 GHz和2 GHz型号的TPP1000），校准证书，安装和安全手册，带有集成式前盖，鼠标和电源线的附件袋。

Additional Features:

• 4 FlexChannel™ inputs
• 32 optional digital channels
• Each FlexChannel provides one analog signal input or eight digital logic inputs with TLP058 logic probe
• Sample rate (all analog / digital channels): Real-time: 6.25 GS/s; Interpolated: 500 GS/s
• Record length (all analog / digital channels): 62.5 Mpoints standard; 125 Mpoints optional
• Waveform capture rate: >500,000 waveforms/s
• Vertical resolution: 12-bit ADC
• Up to 16-bits in High Res mode
• Standard trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence

Standard analysis

• Cursors: Waveform, V Bars, H Bars, V&H Bars
• Measurements: 36
• Plots: Time Trend, Histogram and Spectrum
• Math: basic waveform arithmetic, FFT, and advanced equation editor
• Search: search on any trigger criteria
• Jitter: TIE and Phase Noise

Optional analysis

• Advanced Jitter and Eye Diagram Analysis

Optional serial bus trigger, decode and analysis

• I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, USB 2.0, Ethernet, I2S, LJ, RJ, TDM

Arbitrary/Function Generator*Optional and upgradeable

• 50 MHz waveform generation
• Waveform Types: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

Digital voltmeter*Free with product registration

• 4-digit AC RMS, DC, and DC+AC RMS voltage measurements

Trigger frequency counter*Free with product registration

• 8-digit

Display

• 15.6-inch (396 mm) TFT color
• High Definition (1,920 x 1,080) resolution
• Capacitive (multi-touch) touchscreen

Dimensions

• 12.2 in (309 mm) H x 17.9 in (454 mm) W x 8.0 in (204 mm)
• Weight: <25 lbs. (11.4 kg)

Every 5 Series MSO includes

• One passive probe per FlexChannel: TPP1000 (for models with 1 GHz or 2 GHz bandwidth)
• Installation and safety manual (translated in English, Japanese, Simplified Chinese)
• Integrated online help
• Front cover with integrated accessory pouch
• Mouse
• Power cord
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001 quality system registration
• Three-year warranty covering all parts and labor on the 5 Series MSO instrument
• One-year warranty covering all parts and labor on included probes

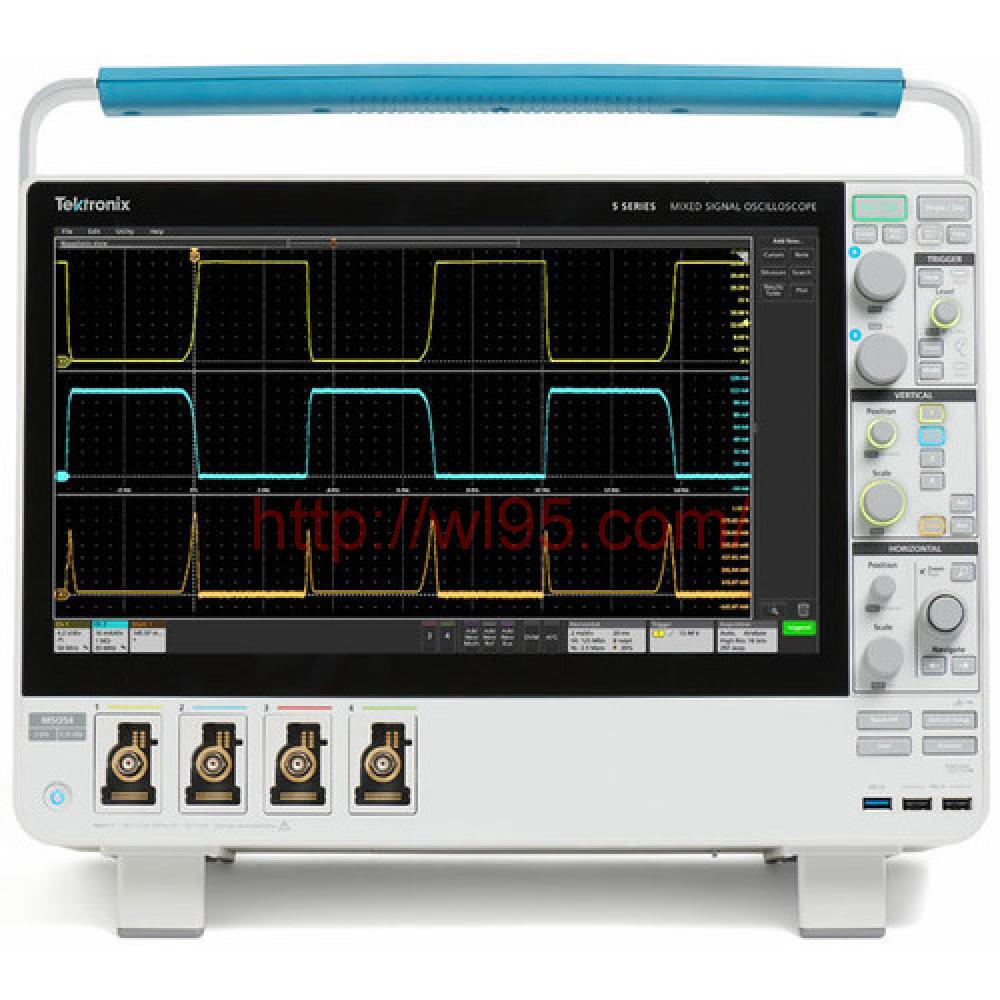

The Tektronix MSO54 5-BW-1000 is a 4 FlexChannel Mixed Signal Oscilloscope with a real-time sample rate of 6.25 GS/s and a 62.5 Mpoints record length.

The 5 Series MSO offers better visibility into complex systems by offering four, six and eight channel models with a large 15.6" high definition (1,920 x 1,080) display. Many applications, such as embedded systems, threephase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.

The 5 Series MSO offers a new level of integration of digital channels. Digital channels share the same high sample rate (up to 6.25 GS/s) for fine timing resolution, and long record length (up to 125 Mpoints) for long time captures as analog channels. Previous-generation MSOs required tradeoffs, with digital channels having lower sample rates or shorter record lengths than analog channels.
